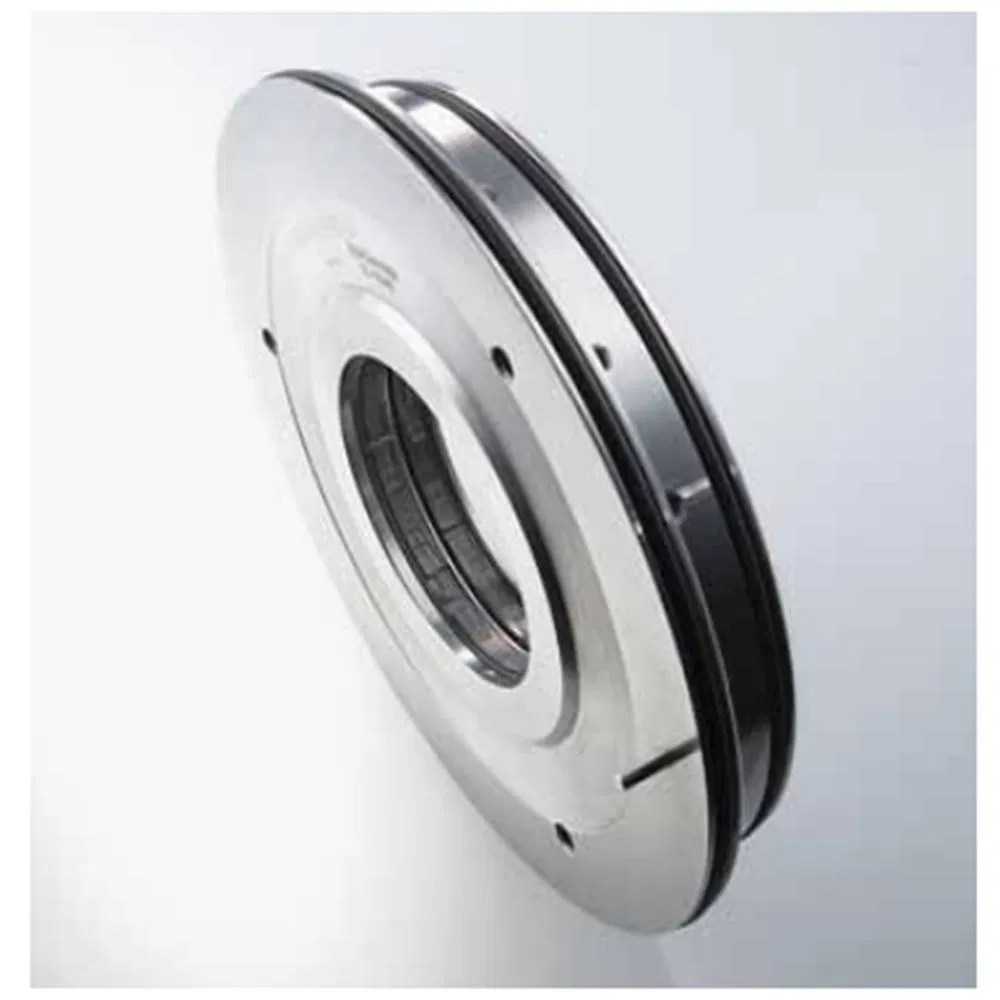

140 CSR Mechanical Seals for Pumps Pusher Seals

(1)Features
• Lift-off type barrier seal
• Gas-lubricated
• Bi-directional
• Ready-to-fit cartridge unit

(2)Advantages
The carbon ring seal with the lowest levels of buffer gas
consumption. Lift-off type carbon ring seals are setting the
benchmark among the existing oil barrier seals with regard
to separation gas consumption. The profiled surface
at the inner diameter of the segmented ring provides at
circumferential speeds of > 10 m/s an aerodynamic lift-off
and the segments are floating on a very small gas film.

(3)Operating range (see note on page 1)
Shaft diameter: Ds1 = 29.5 ... 299.5 mm (1.16" ... 11.79")
Pressure: p2 dyn. 1.5 ... 2.2 bar a (21 ... 31 PSI),
p2 stat. ... 11 bar a (159 PSI)
Sliding velocity: vg = 10 ... 200 m/s (32 ... 656 ft/s)
Temperature: t = -20 °C ... +200 °C (-4 °F ... +392 °F)
Barrier gas: Air or nitrogen
Dew point of barrier gas at operating pressure:
-50 °C ... +20 °C (-58 °F ... +68 °F)
Run-out of shaft: max. 20 μm
Vibrations peak/peak (in the area of compressor bearing):
Smax = 3.5 x 25.4 12,000/nmax
Smax = 275 μm (short term)

(4)Materials
Seal face: Carbon graphite impregnated
Secondary seals: FKM (V)
Metal parts: 1.4006 or other stainless steels.

(5)Standards and approvals
• NACE

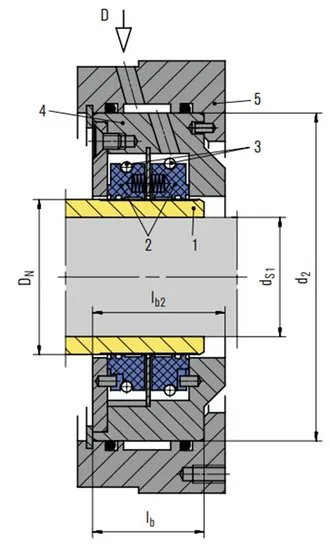

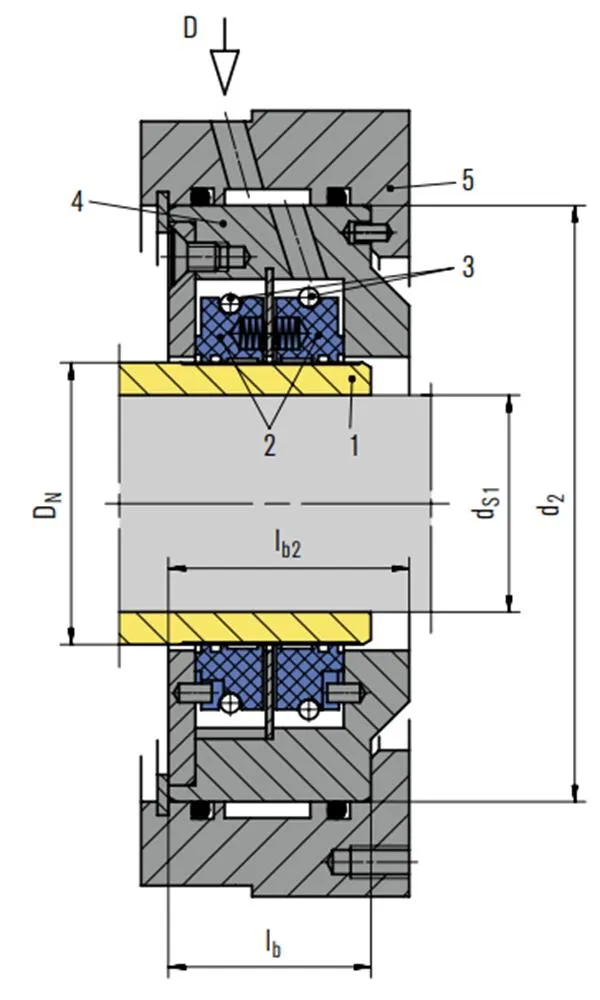

(6)Item        Description
1              Shaft sleeve
2              Segmented carbon ring
3              Garter spring
4              Housing of standardized sub-cartridge
5              Housing (adapted in size to the installation space)
D             Separating gas

(7)Note
Not applicable with barrier gases from cryogenic separation.

(8)Recommended applications
• Oil and gas industry
• Refining technology
• Petrochemical industry
• Nitrogen
• Air
• Centrifugal compressors
• Blowers

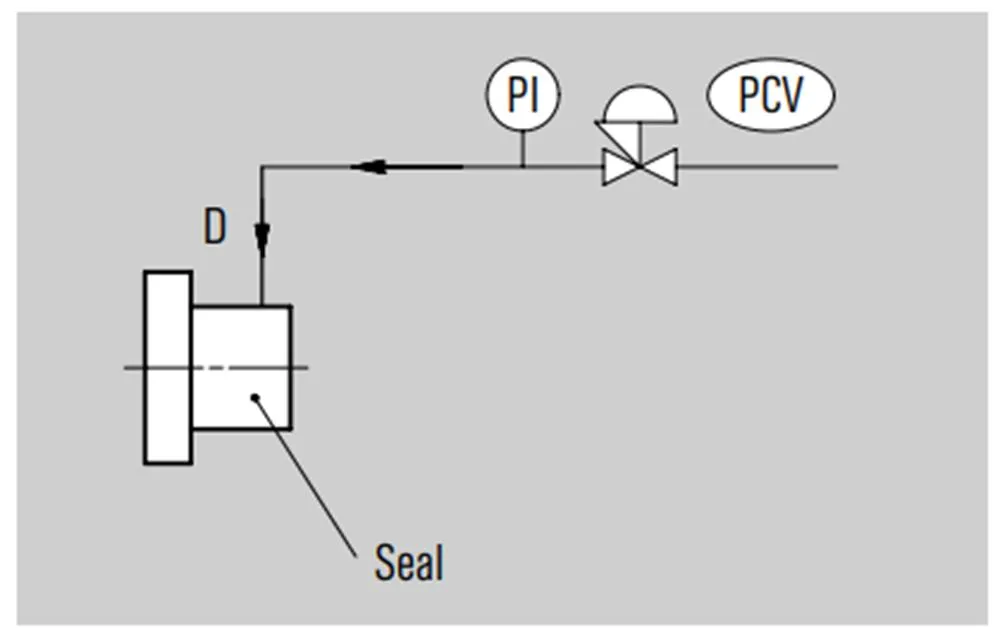

Piping and instrumentation diagram of a CSR
(pressure controlled separating gas supply).

(9)Dimensions in mm

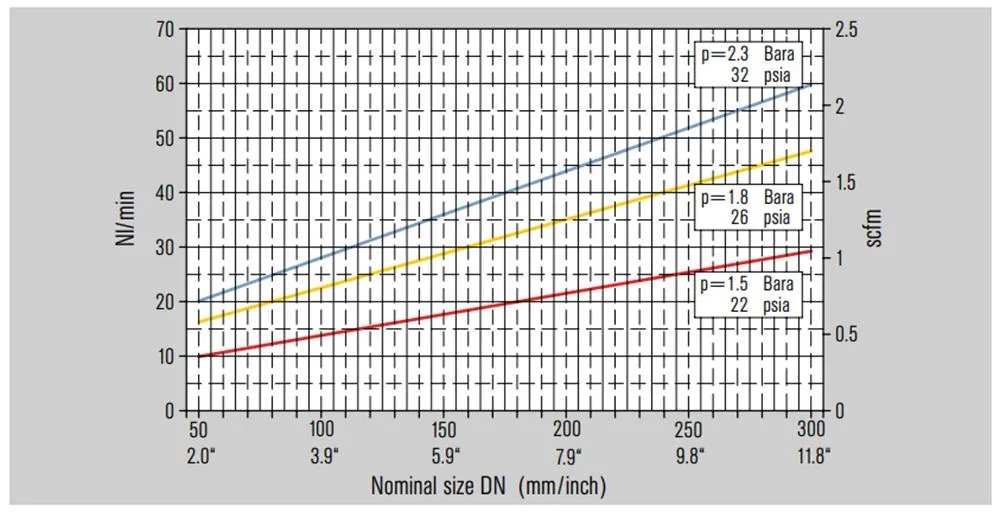

Separating gas comsumption (expected)
Gas: N2
Inlet temperature: 20 °C (68 °F)
Static and dynamic operation
Guaranteed gas consumption = curve value x 2

Dimensions in mm
