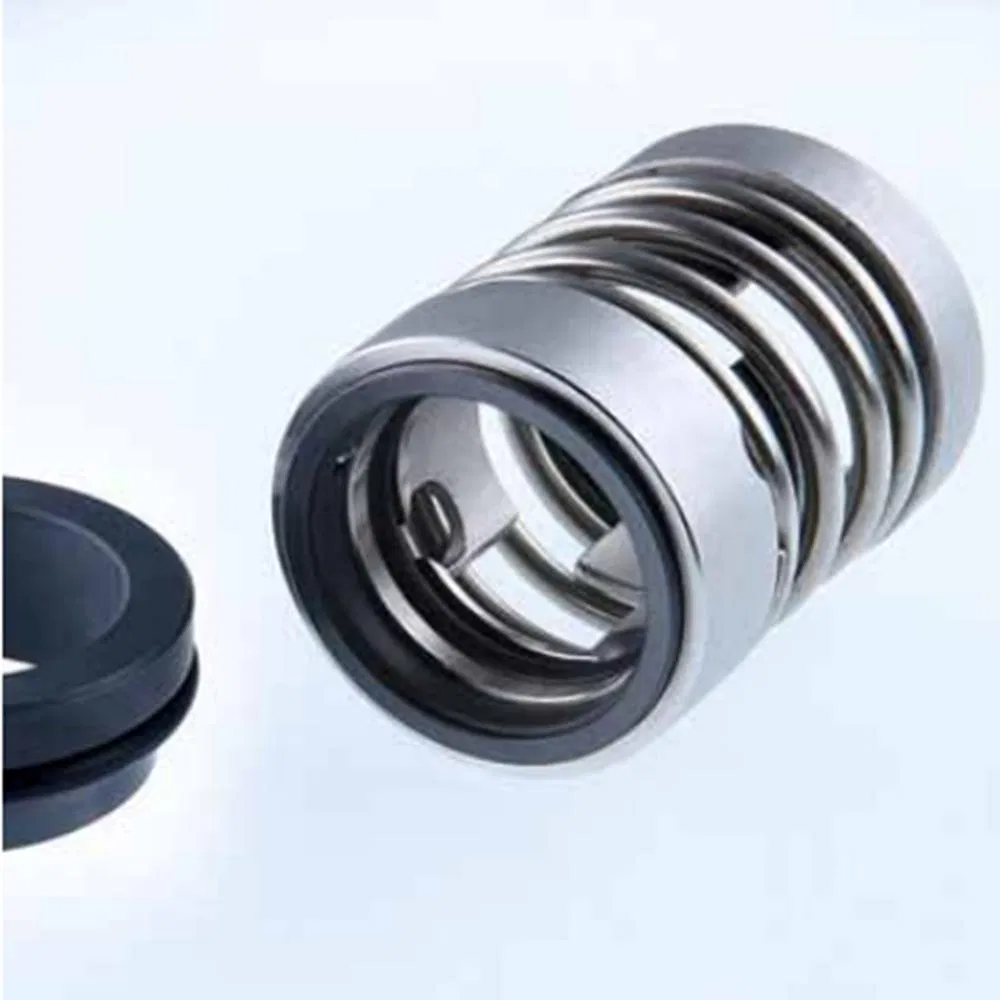

(1)Features
• Single seal
• Unbalanced
• Independent of direction of rotation
• Positive torque transmission due to bayonet drive between seal head and drive collar
• O-Ring groove for ventilation prevents solids build-up and enhances flexibility
(2)Operating range (see note on page)
Pressure: p = 12 bar (174 PSI)
Temperature: t = -20 °C ... +160 °C (-4 °F ... +320 °F)
Sliding velocity: ... 20 m/s (66 ft/s)
Viscosity: ... 300 Pa·s
Solids content: ... 7 %
(3)Materials
Seal face: Silicon carbide (Q1)
Seat: Silicon carbide (Q1)
Secondary seals: EPDM (E), FKM (V)
Metal parts: 1.4401 (G)
(4)Rcommended applications
• Process industry
• Pulp and and paper industry
• High-viscosity liquids
• Pulp suspensions
• Process pumps
• Pulp pumps

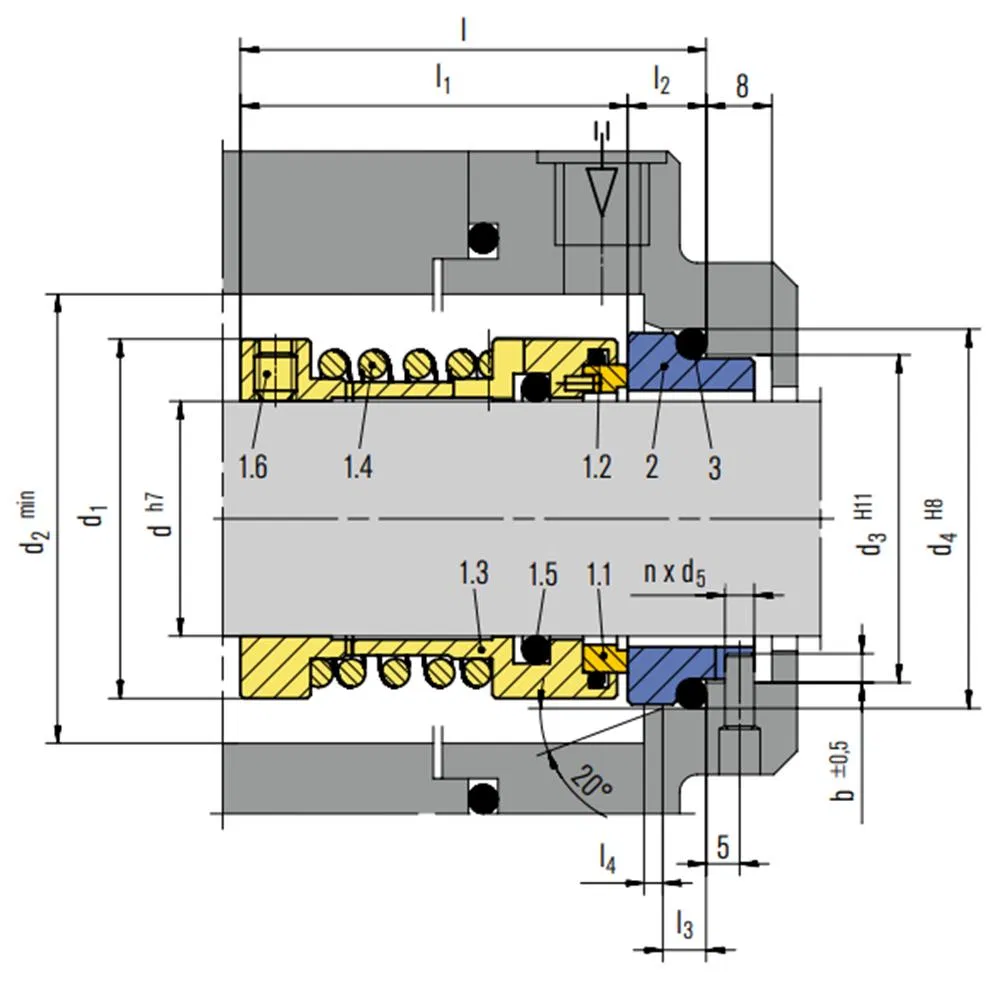

(5)Item Description
1.1 Seal face
1.2 O-Ring
1.3 Drive collar
1.4 Spring
1.5 O-Ring
1.6 Set screw

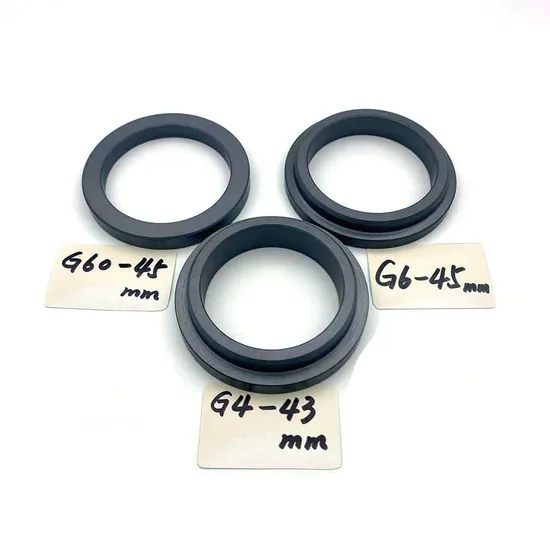

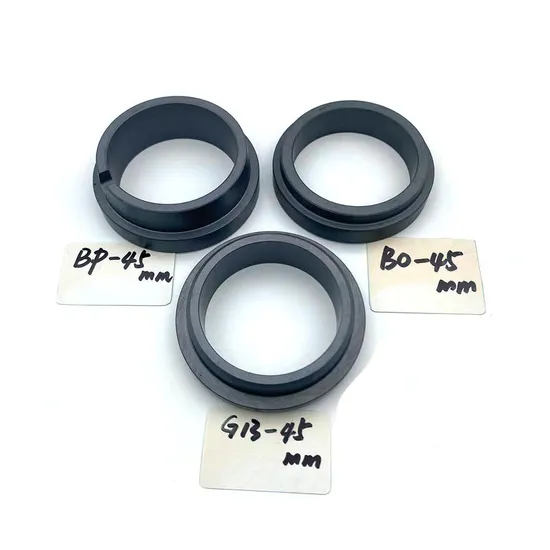

2 Seat
3 O-Ring
| d3 | d4 | d5 | L | L1 | L2 | L3 | L4 | B |
| 29.0 | 35.0 | 3.0 | 51.0 | 41.0 | 10.0 | 5.5 | 2.0 | 3.5 |
| 33.0 | 39.0 | 3.0 | 53.0 | 43.0 | 10.0 | 5.5 | 2.0 | 3.5 |
| 34.0 | 40.0 | 3.0 | 53.0 | 43.0 | 10.0 | 5.5 | 2.0 | 3.5 |
| 37.0 | 43.0 | 3.0 | 55.0 | 45.0 | 10.0 | 5.5 | 2.0 | 3.5 |
| 39.0 | 45.0 | 3.0 | 55.0 | 45.0 | 10.0 | 5.5 | 2.0 | 3.5 |
| 42.0 | 48.0 | 3.0 | 55.0 | 45.0 | 10.0 | 5.5 | 2.0 | 3.5 |
| 42.0 | 48.0 | 3.0 | 55.0 | 45.0 | 10.0 | 5.5 | 2.0 | 3.5 |
| 44.0 | 50.0 | 3.0 | 59.0 | 49.0 | 10.0 | 5.5 | 2.0 | 3.5 |
| 49.0 | 56.0 | 4.0 | 64.0 | 53.0 | 11.0 | 6.0 | 2.0 | 4.0 |
| 51.0 | 58.0 | 4.0 | 66.0 | 55.0 | 11.0 | 6.0 | 2.0 | 4.0 |
| 54.0 | 61.0 | 4.0 | 66.0 | 55.0 | 11.0 | 6.0 | 2.0 | 4.0 |
| 56.0 | 63.0 | 4.0 | 66.0 | 55.0 | 11.0 | 6.0 | 2.0 | 4.5 |
| 59.0 | 66.0 | 4.0 | 66.0 | 55.0 | 11.0 | 6.0 | 2.0 | 4.5 |
| 62.0 | 70.0 | 4.0 | 73.0 | 60.0 | 13.0 | 6.0 | 2.5 | 4.5 |
| 65.0 | 73.0 | 4.0 | 74.0 | 61.0 | 13.0 | 6.0 | 2.5 | 5.0 |
| 67.0 | 75.0 | 4.0 | 74.0 | 61.0 | 13.0 | 6.0 | 2.5 | 5.0 |
| 72.0 | 80.0 | 4.0 | 76.0 | 63.0 | 13.0 | 6.0 | 2.5 | 5.0 |
| 75.0 | 83.0 | 4.0 | 76.0 | 63.0 | 13.0 | 6.0 | 2.5 | 5.0 |
| 77.0 | 85.0 | 4.0 | 80.0 | 67.0 | 13.0 | 6.0 | 2.5 | 5.0 |
| 83.0 | 92.0 | 4.0 | 83.0 | 68.0 | 15.0 | 7.0 | 2.5 | 5.0 |
| 88.0 | 97.0 | 4.0 | 87.0 | 72.0 | 15.0 | 7.0 | 2.5 | 5.0 |
| 95.0 | 105.0 | 4.0 | 87.5 | 72.0 | 15.5 | 7.0 | 3.0 | 6.0 |
| 100.0 | 110.0 | 4.0 | 92.5 | 77.0 | 15.5 | 7.0 | 3.0 | 6.0 |
| 105.0 | 115.0 | 4.0 | 92.5 | 77.0 | 15.5 | 7.0 | 3.0 | 6.0 |
| 110.0 | 120.0 | 4.0 | 97.5 | 82.0 | 15.5 | 7.0 | 3.0 | 6.0 |
| 115.0 | 125.0 | 4.0 | 97.5 | 82.0 | 15.5 | 7.0 | 3.0 | 6.0 |
