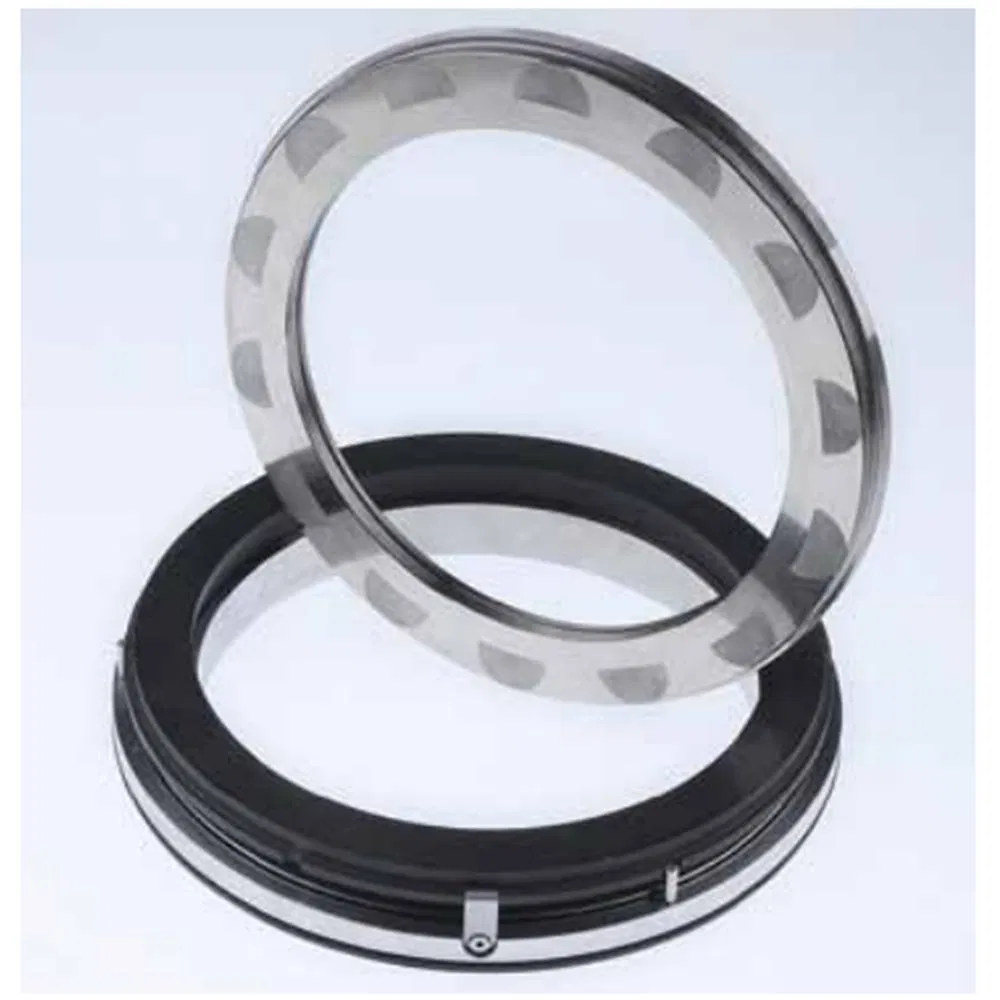

134 MDGS Mechanical Seals for Pumps Pusher Seals

(1)Features
• Gas-lubricated
• Bi-directional
• Ready-to-fit cartridge unit
• Single, double, tandem seal and tandem with intermediate labyrinth available

(2)Operating range (see note on page 1)
Shaft diameter: d1 = 40 ... 280 mm (1.57" ... 8.66")
Pressure: p = 0 ... 50 bar (0 ... 725 PSI)
Temperature: t = -20 °C ... 200 °C (-4 °F ... +392 °F)
Sliding velocity: vg = 0.6 ... 200 m/s (2 ... 656 ft/s)

(3)Advantages
The rotating ductile ring with a high performance coating
as the main distinctive feature to other dry gas seals
excludes any ring disintegration in case of seal failure. The
required radial space of this seal is smaller than existing
Dry Gas Seals and the seal fits into small seal cavities, as
you find them in process gas screw compressors, without
making any compromise with regard to seal reliability.
The stationary spring loaded unit is supplied as a sub
cartridge in combination with a rotating ductile seat
integrating secondary functions such as centring and
secondary sealing by means of an O-Ring allow the use
of this seal as a component sea

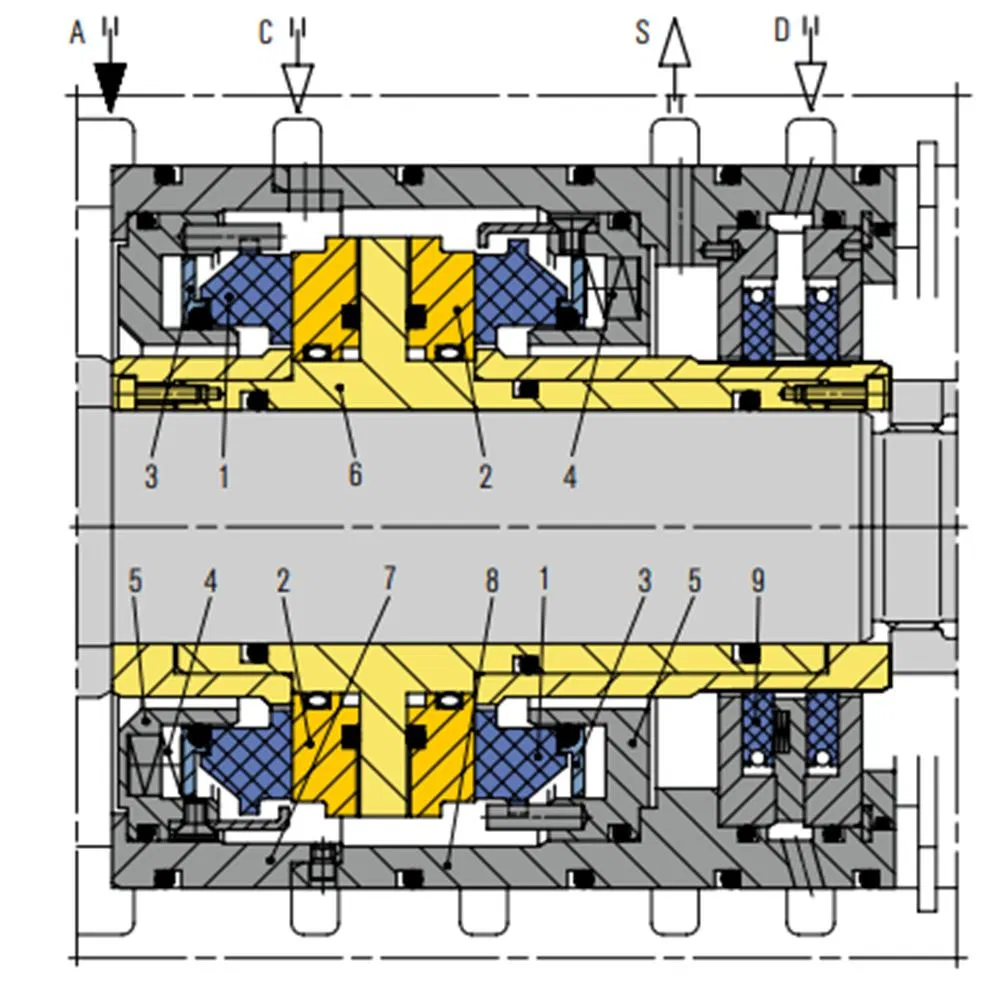

(4)Item          Description
1                Seal face, stationary
2                Seat, rotating
3                Thrust ring
4                Spring
5                Housing of standardized stationary sub-cartridge
6                Shaft sleeve, intermediate sleeve
7, 8            Housing (adapted in size to the installation space)
9                Carbon ring type separation seal

  10               Intermediate labyrinth
A                Product flushing
B                Flare
C                Buffer gas
D                Separating gas
S                 Vent

(5)Materials
Seal face: Carbon graphite impregnated
Seat: Ductile stainless steel with DM-TiN coating
Secondary seals: FKM (V) or other materials depending
on product gas composition
Metal parts: 1.4006 or other stainless steels.

(6)Standards and approvals
• NACE

(7)Recommended applications
• Oil and gas industry
• Refining technology
• Petrochemical industry
• Hydrocarbon gas
• Ammonia
• Nitrogen
• Refrigerants
• Air
• Centrifugal compressors
• Dry process gas screw compressors
• Blowers

(8)Product variants

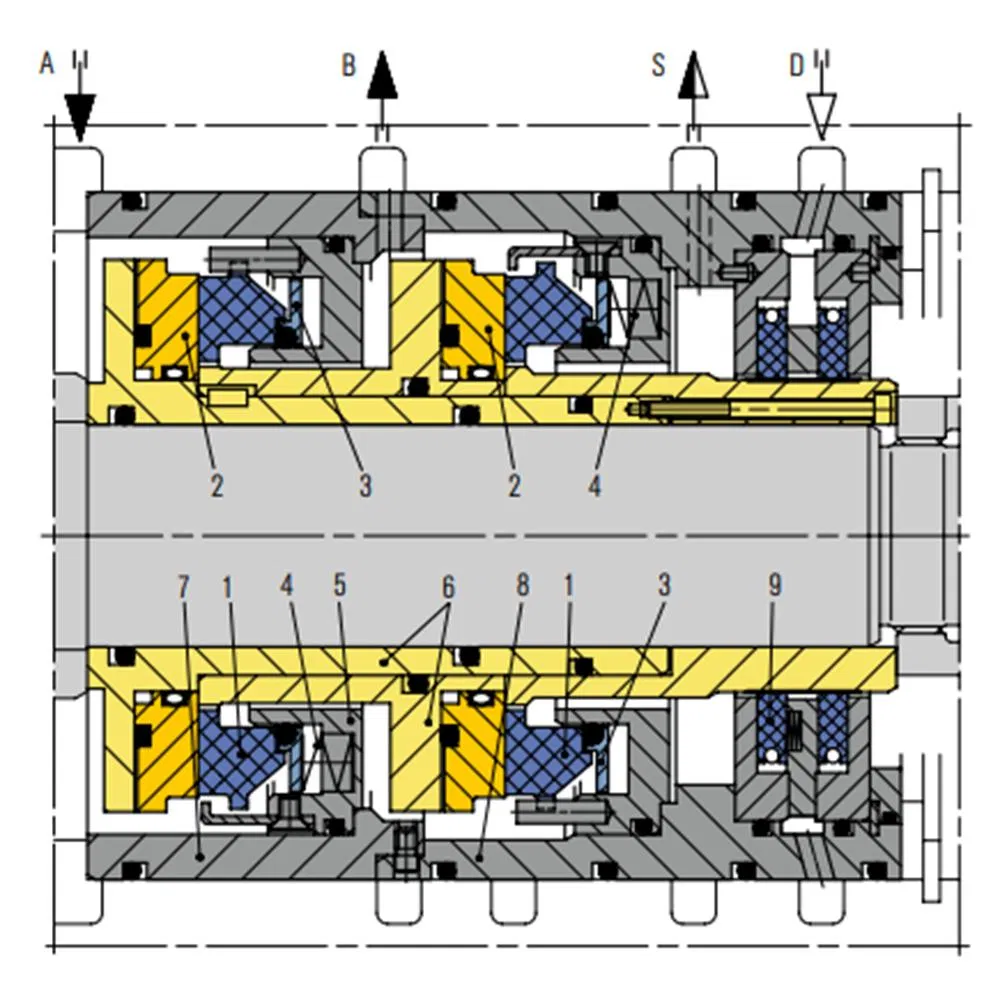

MDGS Tandem seal
Application: Where small product leakages of process
gas are admissible, e.g. on gas pipeline compressors.
Seal on the atmosphere side acting as a safety seal.
The tandem arrangement provides a particularly high degree
of operational safety. The seal on the product side and the
seal on the atmosphere side are able to absorb the
complete pressure differential. Under normal operating
conditions the full pressure is reduced only by the seal
on the product side. The space between the seal on the
product side and the seal on the atmosphere side is cleared
by a connection "B" to the primary vent (flare). The pressure
differential to be sealed by the seal on the atmosphere side
equals the primary vent pressure, so the leakage to the
secondary vent (atmosphere) is very low. If the main seal
fails, the second seal acts as a safety seal.

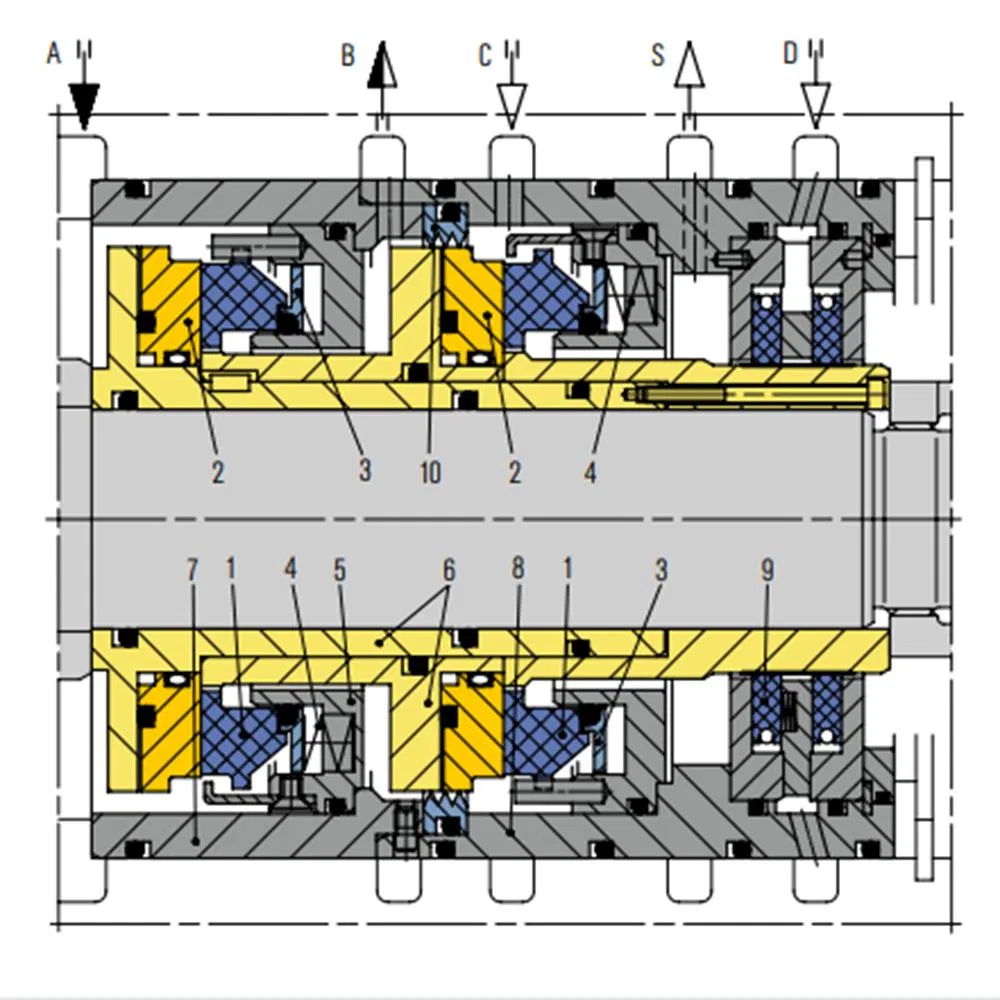

MDGS Tandem seal with intermediate labyrinth
Application: Where product leakages to the atmosphere
as well as buffer gas leakages to the product are
inadmissible, e.g. on H2, ethylene or propylene compressors. With this version the product pressure to
be sealed is reduced via the seal on the product side.
The entire process gas leakage is discharged via
connection "B" to the primary vent. The seal on the
atmosphere side is pressurized with buffer gas (nitrogen)
via connection "C". The pressure of the buffer gas
ensures that a nitrogen flows via the labyrinth to the
flare/vent outlet

MDGS Dual seal
Application: Where product leakages to the atmosphere
are inadmissible and tandem arrangements are not
suitable because of too small product gas pressures.
Buffer gas leakages into the product must be admissible
(buffer pressure p3 > p1). This seal is used when a
neutral buffer gas of suitable pressure is available. Typical
applications are to be found mainly in the chemical
industry, e.g. on HC gas compressors. A buffer gas, e.g.
nitrogen, is fed between the seals via connection "C" at a
higher pressure than the product pressure. One part of the
buffer gas leakage escapes to the atmosphere side and
the other part to the product.

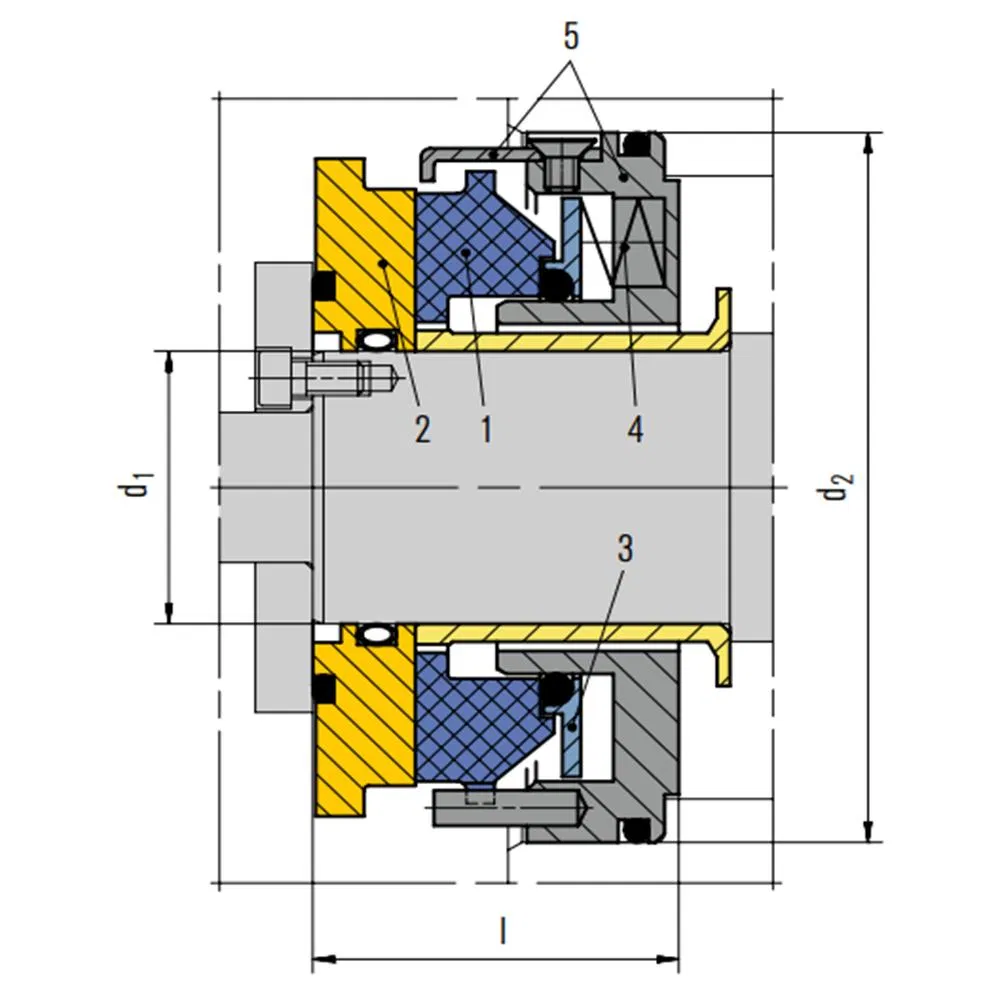

Dimensions in mm
