130 DGS Mechanical Seals for Pumps Pusher Seals

Customization: Available
Structure: Single End
Pressure: High Pressure Mechanical Seals
Quantity:
Overview

Basic Info.

Model NO.
130 DGS
Speed
Ultra-High-Speed Mechanical Seal
Temperature
High Temperature Mechanical Seal
Performance
Corrosion
Standard
Standard
Type
Custom-Made, TS
Balance
Balanced
Payment Method
T/T, Western Union, L/C etc
Replace
Bogmann Seals
Export Port
Ningbo Port, Shanghai Port
Products Packaging
White Box
Min Order Qty
5 Pcs
Transport Package
Carton Packing
Specification
Diameter Size 40-280mm
Trademark
Custom-made, TS
Origin
Made in China
HS Code
8484200090
Production Capacity
1000000 PCS/Year

Packaging & Delivery

Package Size
38.00cm * 38.00cm * 32.00cm
Package Gross Weight
22.000kg

Product Description

Product Description

(1)Features
• Gas-lubricated
• Unidirectional or bidirectional available
• Ready-to-fit cartridge unit
• Single, dual, tandem and tandem with intermediate labyrinth available

(2)Advantages
The proven Dry Gas Seal for pressures up to 100 bar
(1,450 PSI). Due to simple components a reliable and
economical solution for low pressure applications.
Application single seal: The simplest seal is a Dry Gas
Seal in single arrangement. This seal is used in case that
due to the nature of the product gas no additional back
up seal is required. Separation seals as labyrinths, radial
clearance seals or CobaSeal are optionally available.
This version is used as an emission-free arrangement with
a corresponding flare/vent connection. Primary leakage is
then discharged with the separating gas to the flare/vent.
In the case of dirty gases the gas to be sealed has to be
filtered in addition and conveyed to the seal chamber via
connection "A". The resulting gas flow from the sealing
compartment prevents any dirty/wet gas gas entering the seal

(3)Operating range (see note on page 1)
Shaft diameter: Ds1 = 29 ... 264 mm (1.14" ... 10.39")
Pressure: p = 0 ... 100 bar (1,450 PSI)
Temperature: t = -20 °C ... +200 °C (-4 °F ... +392 °F)
Sliding velocitiy: vg = 0.6 ... 200 m/s (2 ... 656 ft/s)

(4)Item Description

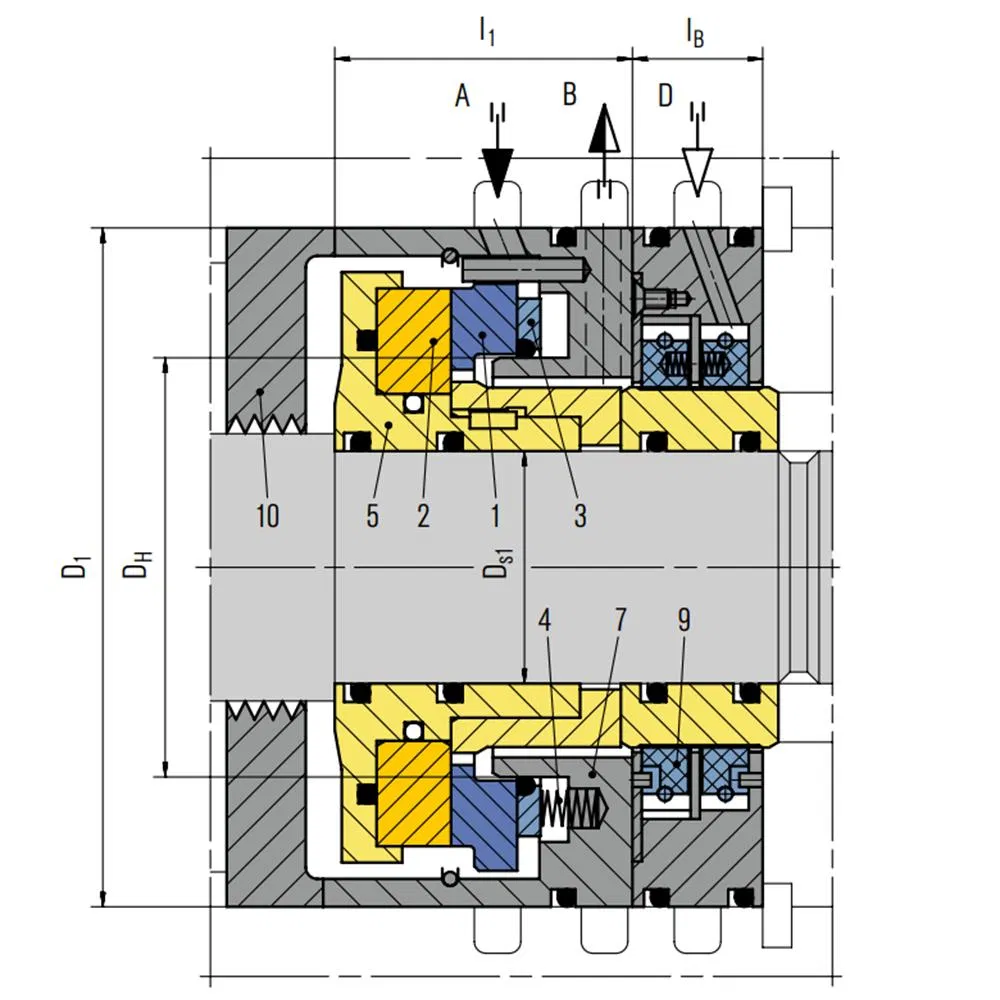

1 Seal face, stationary
2 Seat, rotating
3 Thrust ring
4 Spring
5 Shaft sleeve and seat retainer
6 Intermediate sleeve
7, 8 Housing (adapted in size to the installation space)
9 Carbon ring type separation seal
10 Labyrinth
11 Intermediate labyrinth
A Product flushing
B Flare
C Buffer gas
D Separating gas
S Vent

(5)Materials
Seal face: Silicon carbide (Q1) with DLC coating
Seat: Silicon carbide (Q1) with DLC coating
Secondary seals: FKM (V) or other materials depending on
product gas composition
Metal parts: 1.4006 or other stainless steels.

(6)Standards and approvals
• NACE

(7)Recommended applications
• Oil and gas industry
• Refining technology
• Petrochemical industry
• Hydrocarbon gas
• Ammonia
• Nitrogen
• Air
• Centrifugal compressors
• Turbo expanders
• Blowers

(8)Product variants

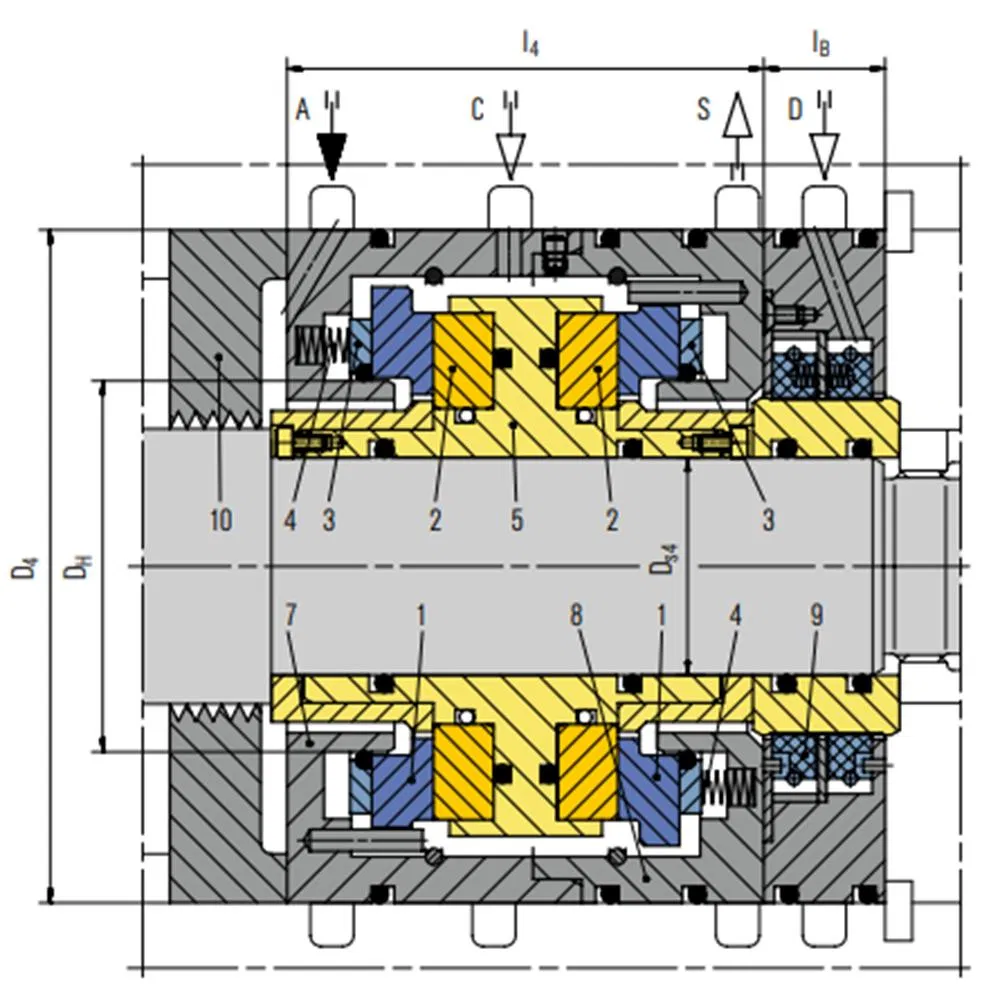

DGS Tandem seal
Application: Where small product leakages of process
gas are admissible, e.g. on gas pipeline compressors.
Seal on the atmosphere side acting as a safety seal. The
tandem arrangement provides a particularly high degree of
operational safety. The seal on the product side and the seal
on the atmosphere side are able to absorb the complete
pressure differential. Under normal operating conditions
the full pressure is reduced only by the seal on the product
side. The space between the seal on the product side and
the seal on the atmosphere side is cleared by a connection
"B" to the primary vent (flare). The pressure differential to
be sealed by the seal on the atmosphere side equals the
primary vent pressure, so the leakage to the secondary vent
(atmosphere) is very low. If the main seal fails, the second
seal acts as a safety seal.

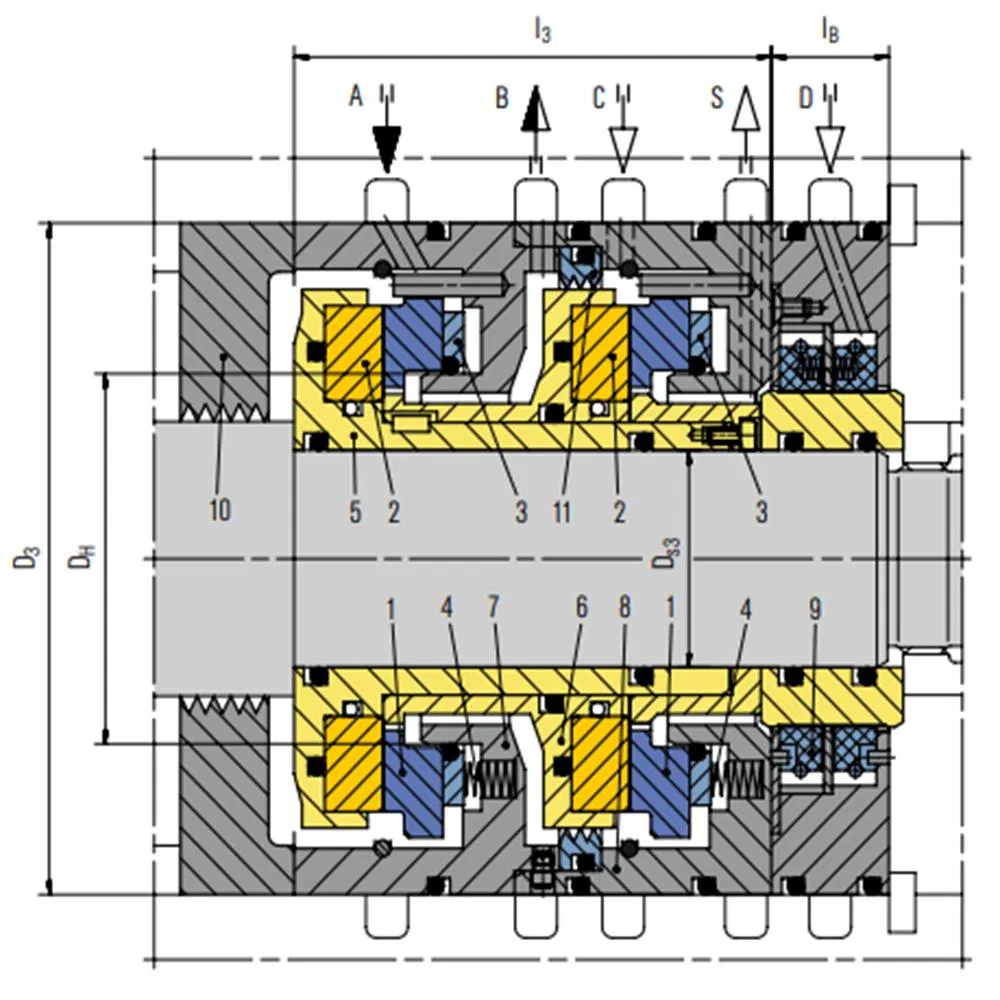

DGS Tandem seal with intermediate labyrinth
Application: Where product leakages to the atmosphere
as well as buffer gas leakages to the product are
inadmissible, e.g. on H2, ethylene or propylene
compressors. With this version the product pressure to be
sealed is reduced via the seal on the product side. The
entire process gas leakage is discharged via connection
"B" to the primary vent. The seal on the atmosphere side
is pressurized with buffer gas (nitrogen) via connection
"C". The pressure of the buffer gas ensures that a nitrogen
flows via the labyrinth to the flare/vent outlet.

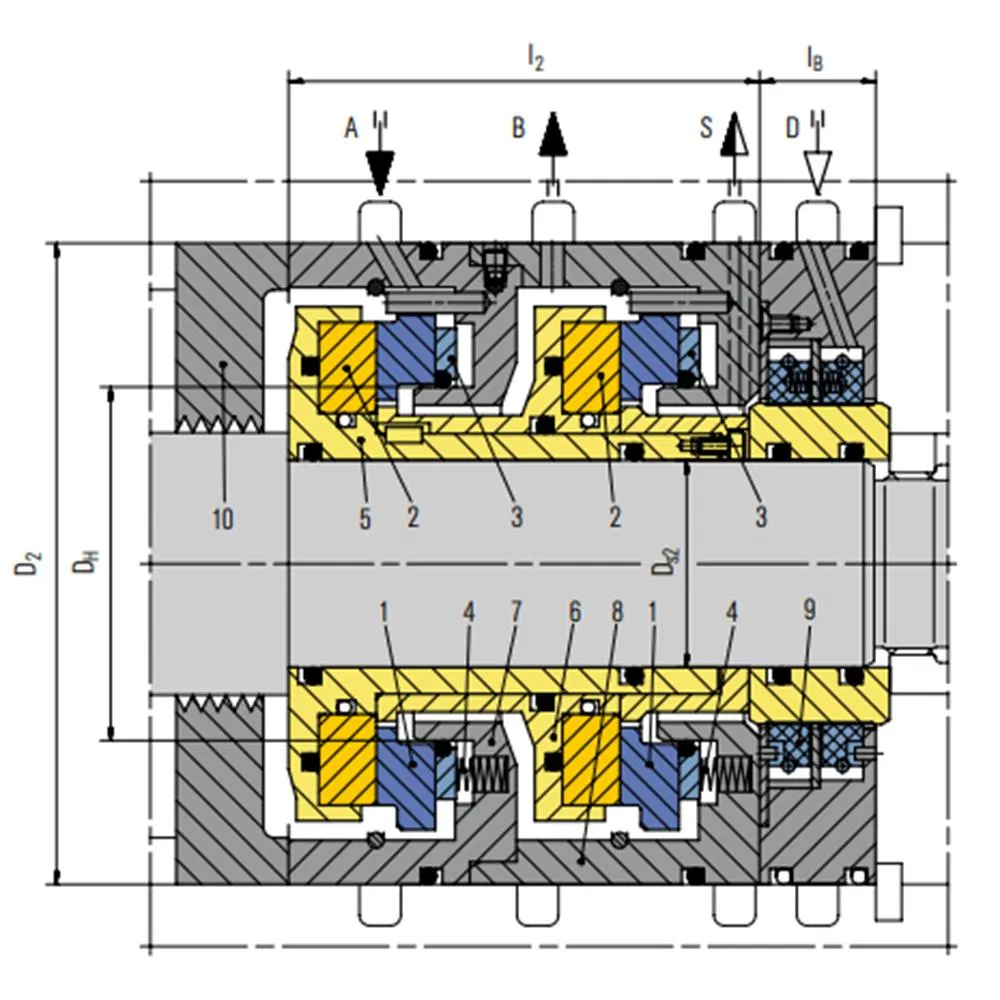

DGS Dual seal
Application: Where product leakages to the atmosphere
are inadmissible and tandem arrangements are not
suitable because of too small product gas pressures.
Buffer gas leakages into the product must be admissible
(buffer pressure p3 > p1). This seal is used when a
neutral buffer gas of suitable pressure is available. Typical
applications are to be found mainly in the chemical
industry, e.g. on HC gas compressors. A buffer gas, e.g.
nitrogen, is fed between the seals via connection "C" at a
higher pressure than the product pressure. One part of the
buffer gas leakage escapes to the atmosphere side and
the other part to the product.


130 DGS Mechanical Seals for Pumps Pusher Seals
130 DGS Mechanical Seals for Pumps Pusher Seals
130 DGS Mechanical Seals for Pumps Pusher Seals

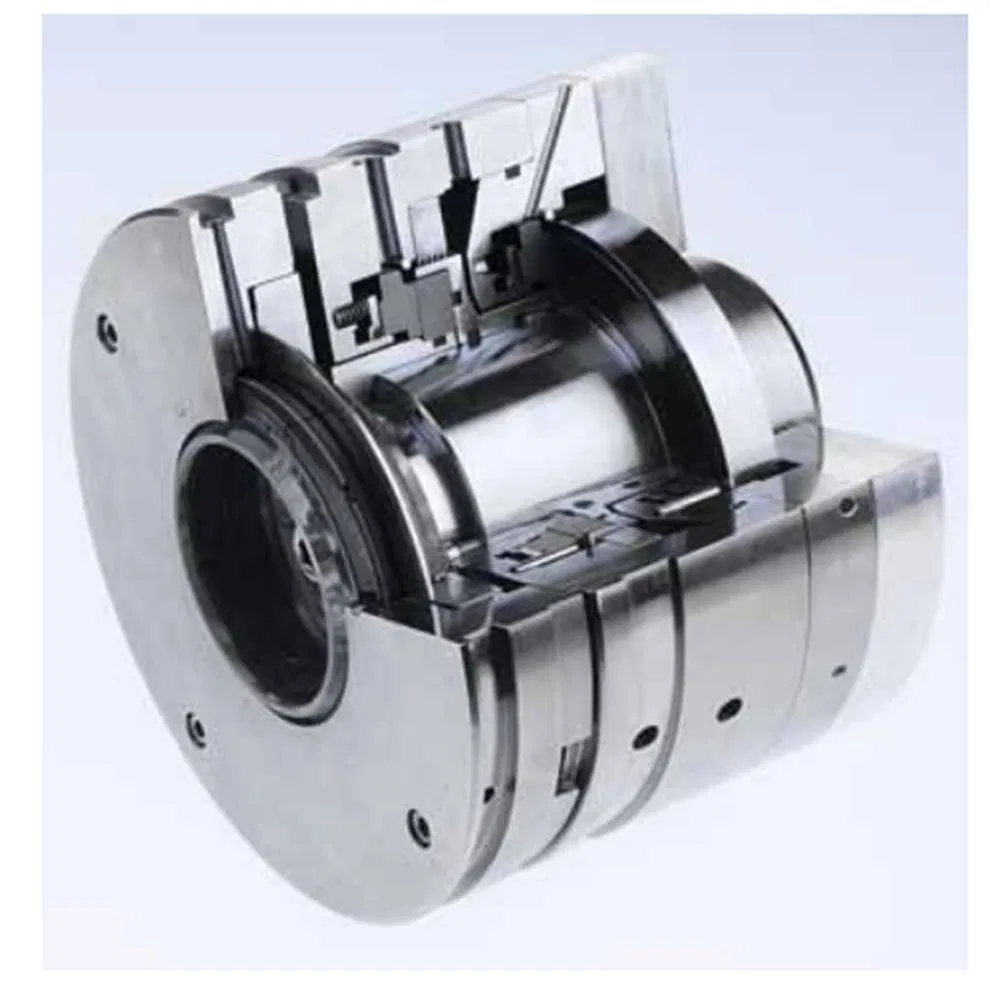

Detailed Photos
130 DGS Mechanical Seals for Pumps Pusher Seals
130 DGS Mechanical Seals for Pumps Pusher Seals
130 DGS Mechanical Seals for Pumps Pusher Seals
Product Structure Size

Dimensions in mm

DN DH Ds1 D1 L1 Ds2 D2 L2 Ds3 D3 L3 Ds4 D4 L4 LB
40 52.8 29.0 93.0 40.0 25.0 93.0 78.0 25.0 107.0 78.0 29.0 97.0 73.0 46.0
46 59.5 35.0 99.0 40.0 31.0 99.0 78.0 31.0 114.0 78.0 35.0 103.0 73.0 46.0
49 61.7 38.0 102.0 40.0 34.0 102.0 78.0 34.0 117.0 78.0 38.0 106.0 73.0 46.0
56 69.9 45.0 111.0 40.0 41.0 111.0 78.0 41.0 126.0 78.0 45.0 115.0 73.0 46.0
63 76.8 52.0 118.0 40.0 47.0 118.0 78.0 47.0 133.0 78.0 52.0 122.0 73.0 47.0
68 83.9 57.0 129.0 40.0 52.0 129.0 90.0 52.0 144.5 90.0 57.0 133.0 73.0 47.0
73 88.8 63.0 134.0 48.0 58.0 134.0 95.0 58.0 149.5 95.0 63.0 138.0 89.0 48.0
78 93.8 68.0 139.0 48.0 63.0 139.0 96.0 63.0 154.5 96.0 68.0 143.0 89.0 48.0
83 98.7 73.0 144.0 48.0 68.0 144.0 96.0 68.0 159.5 96.0 73.0 148.0 89.0 48.0
88 103.7 78.0 149.0 51.0 73.0 149.0 104.5 73.0 164.5 104.5 78.0 153.0 95.5 48.5
93 108.7 83.0 155.0 51.0 78.0 155.0 104.5 78.0 170.5 104.5 83.0 159.0 95.5 48.5
98 113.7 88.0 161.0 51.0 83.0 161.0 103.5 83.0 175.5 103.5 88.0 165.0 95.5 46.5
103 118.6 93.0 165.0 51.0 88.0 165.0 102.5 88.0 180.5 102.5 93.0 169.0 95.5 46.5
108 123.6 98.0 170.0 51.0 93.0 170.0 102.5 93.0 185.5 102.5 98.0 174.0 95.5 46.5
113 128.6 103.0 175.0 51.0 98.0 175.0 103.5 98.0 191.0 103.5 103.0 179.0 95.5 46.5
118 133.6 108.0 180.0 51.0 103.0 180.0 102.5 103.0 196.0 102.5 108.0 184.0 95.5 48.0
123 138.6 113.0 185.0 52.5 108.0 185.0 104.5 108.0 201.0 104.5 113.0 189.0 99.0 47.5
130 150.5 120.0 197.0 52.5 114.0 197.0 106.5 114.0 213.0 106.5 120.0 201.0 99.0 47.5
135 155.5 125.0 202.0 55.5 119.0 202.0 110.5 119.0 218.0 110.5 125.0 206.0 99.0 47.5
140 160.5 130.0 207.0 55.5 124.0 207.0 110.5 124.0 223.0 110.5 130.0 211.0 99.0 47.0
145 165.5 135.0 212.0 55.5 129.0 212.0 109.5 129.0 228.0 109.5 135.0 216.0 99.0 47.5
150 171.4 139.0 223.0 55.5 133.5 223.0 115.0 133.5 241.5 115.0 139.0 227.0 99.0 48.5
155 176.4 144.0 228.0 55.5 138.5 228.0 116.0 138.5 247.5 116.0 144.0 232.0 99.0 48.0
160 181.4 148.0 233.0 59.5 143.5 233.0 120.0 143.5 252.5 120.0 148.0 237.0 109.0 48.5
165 186.4 153.0 238.0 59.5 148.5 238.0 119.0 148.5 257.5 119.0 153.0 242.0 109.0 49.0
170 191.4 158.0 243.0 59.5 153.5 243.0 119.0 153.5 261.0 119.0 158.0 247.0 109.0 49.0
180 201.4 168.0 253.0 59.5 163.5 253.0 122.0 163.5 271.0 122.0 168.0 257.0 109.0 54.0
190 211.4 178.0 263.0 64.0 173.5 263.0 128.5 173.5 281.0 128.5 178.0 267.0 118.0 56.5
200 221.3 187.0 273.0 64.0 183.5 273.0 128.5 183.5 291.0 128.5 187.0 277.0 118.0 56.5
210 231.3 197.0 283.0 67.0 193.5 283.0 134.5 193.5 301.0 134.5 197.0 287.0 120.0 59.5
220 241.3 207.0 293.0 72.0 203.5 293.0 142.5 203.5 309.0 142.5 207.0 297.0 129.0 61.0
230 251.3 217.0 303.0 72.0 213.5 303.0 143.5 213.5 320.0 143.5 217.0 307.0 129.0 63.0
240 261.3 224.0 313.0 72.0 222.5 313.0 143.5 222.5 330.5 143.5 224.0 317.0 129.0 62.0
250 271.3 234.0 323.0 77.0 232.5 323.0 156.0 232.5 340.5 156.0 234.0 335.0 138.0 63.5
260 282.2 244.0 339.0 82.0 242.5 339.0 161.0 242.5 355.0 161.0 244.0 351.0 145.0 65.5
270 292.2 254.0 349.0 82.0 252.5 349.0 162.0 252.5 364.0 162.0 254.0 361.0 145.0 68.5
280 302.2 264.0 359.0 87.0 262.5 359.0 175.5 262.5 376.0 175.5 264.0 371.0 154.0 67.5
