127 HSH-D Mechanical Seals for Pumps Pusher Seals

(1)Features
• For top drive entries
• Multiple springs rotating
• Balanced
• Double seal
• Independent of direction of rotation
• Liquid-lubricated
• Cartridge unit
• on request with integrated bearing

(2)Advantages
• Patented hydrodynamic grooves
• High reliability and long service life
• Designed for medium and high pressure range
• Ready-to-fit and factory-tested units
• Connection dimensions to customer's requirements
• Due to the hydraulic product pressure as well overlaying barrier pressure closes the seal.

(3)Operating range (see note on page 1)
Shaft diameter: dw = 20 ... 400 mm (0.79" ... 15.75")
Pressure: p1 = vacuum ... 250 bar (... 3,625 PSI)*,
p3 = p1 + 10 %
Temperature: t = -40 °C ... +200 (350) °C (-40 °F ... +392 (662) °F)
Sliding velocity: vg = 0 ... 5 m/s (0 ... 16 ft/s)
* Depending on size, from 100 ... 150 bar (1,450 ... 2,175 PSI)
executed as tandem seal (pressure reduction in 2 stages).

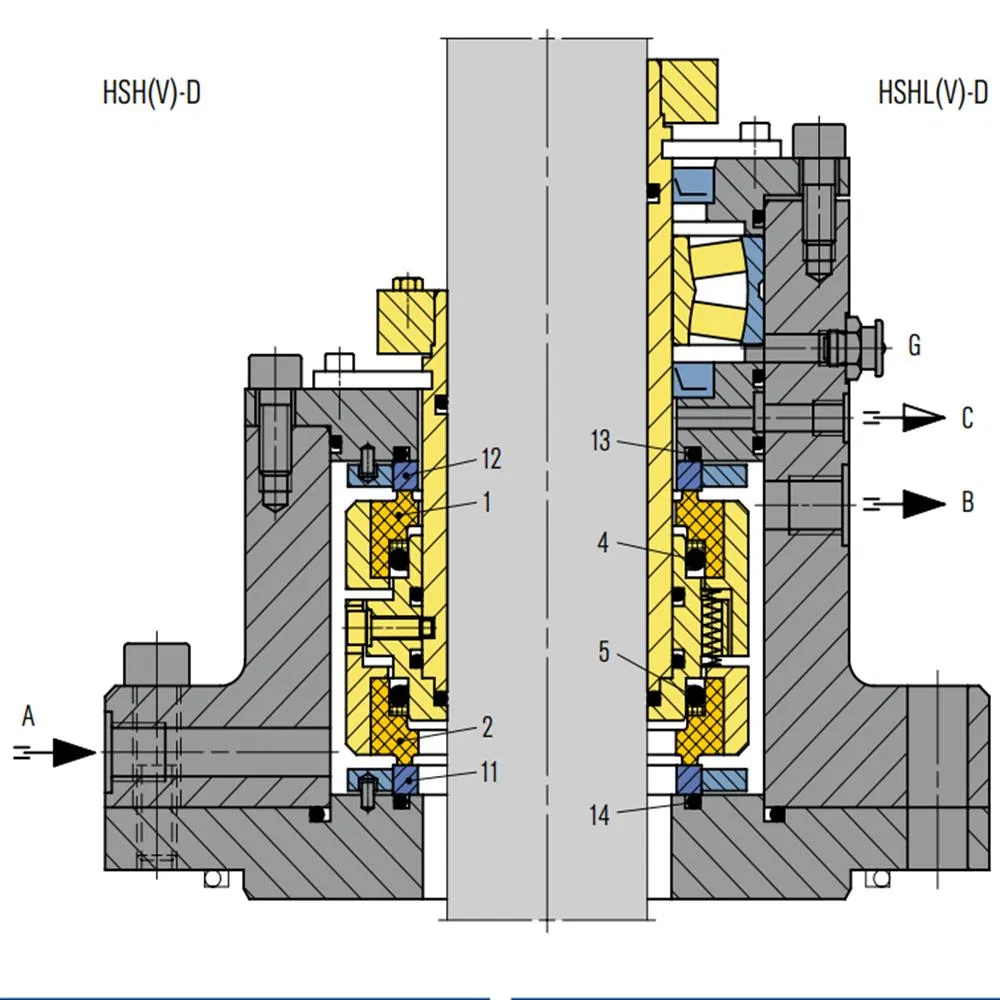

(4)Item                      Description
1                            Seal face, atmosphere side
2                            Seal face, product side
4, 5, 13, 14            O-Ring
  11                           Seat, product side
  12                           Seat, atmosphere side

(5)Materials
According to application and customer's specification

(6)Recommended seal supply
Open barrier fluid circuit
e.g. EagleBurgman SPA, EagleBurgman SPN

(7)Recommended applications
• Chemical industry
• Pharmaceutical industry
• Suitable for all media
• Agitators
• Dryers
• Mixers
• Filter
• Special rotating equipment

(8)Product variants
HSH(V)-D
Double seal

HSH(V)L-D
Double seal with integrated floating bearing (axial thrust
bearing on request).

(9)Dimensions
Dimensions on request

(10)Notes
Options:
• Cooling or heating flange
• Leakage drain, flush or heating flange
• Leakage drain or flush
• Polymerization barrier, leakage drain or flush
See page 259.

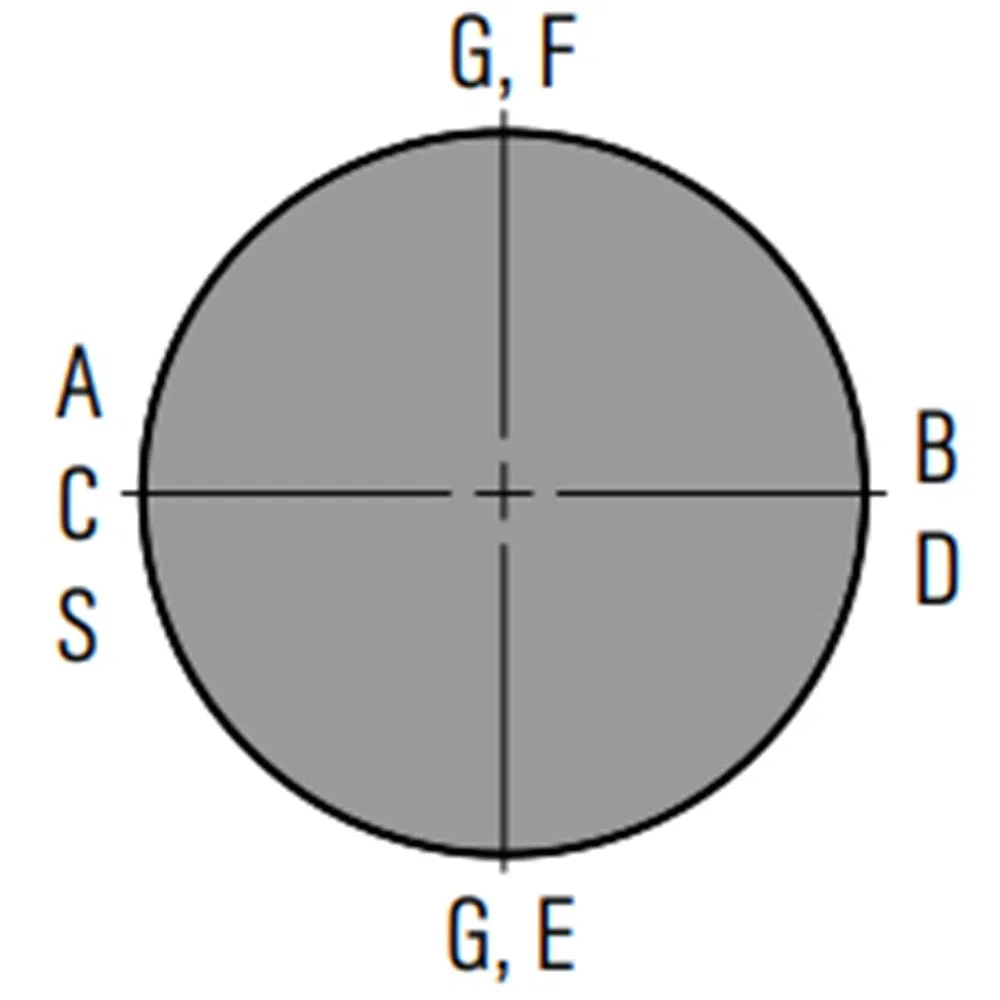

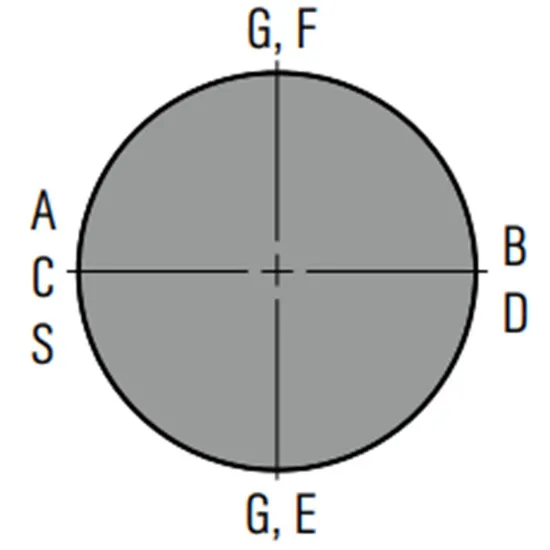

Supply connections

A          Barrier fluid IN
B          Barrier fluid OUT
C          Drainage
D          Leakage drain G1/8"
E           Cooling IN G3/8"
F           Cooling OUT G3/8"
G          Grease
S           Flush

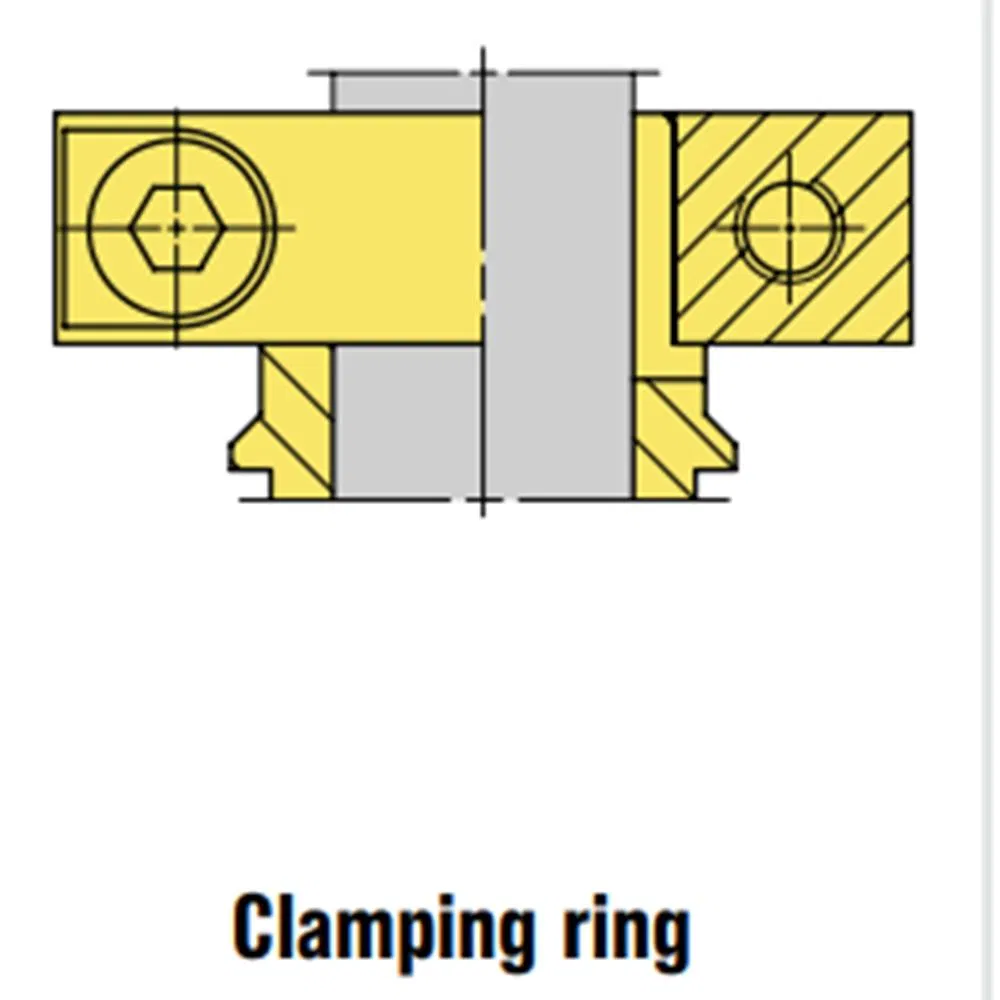

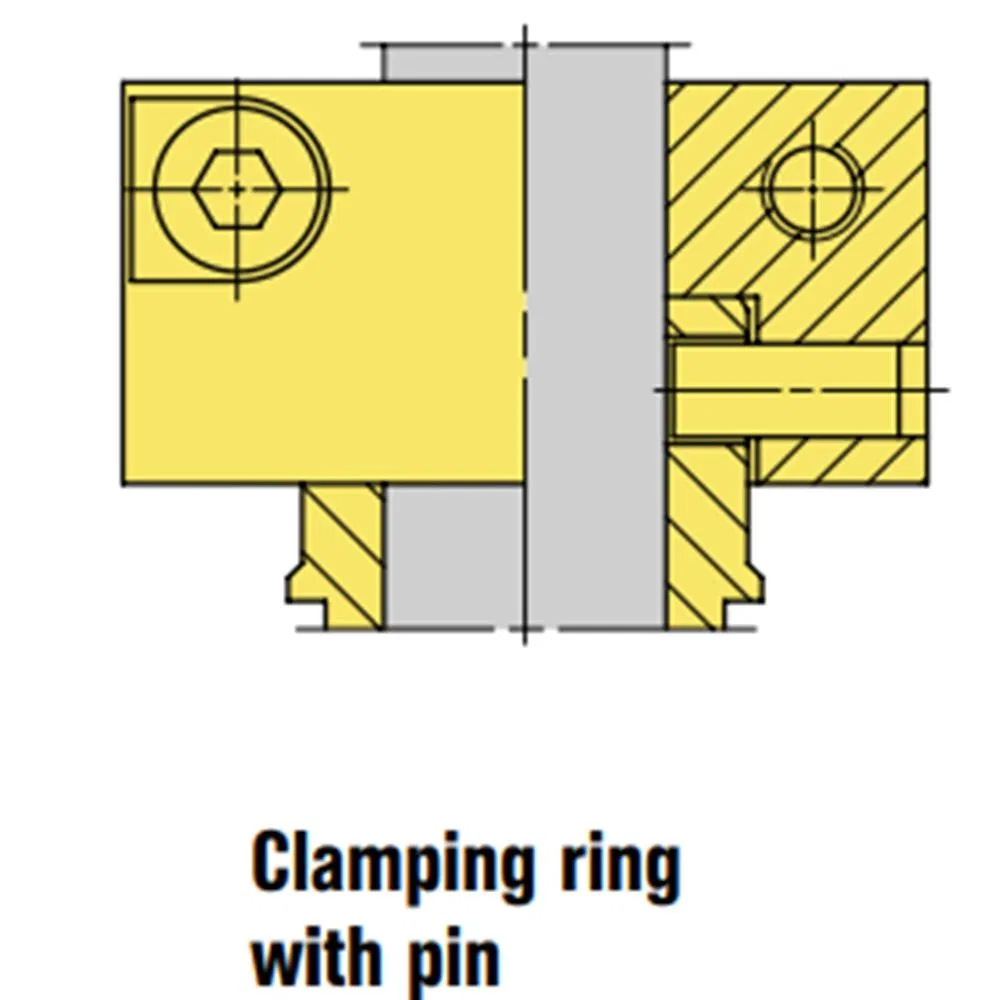

(11)Torque transmissions (HS-D, HSH-D)

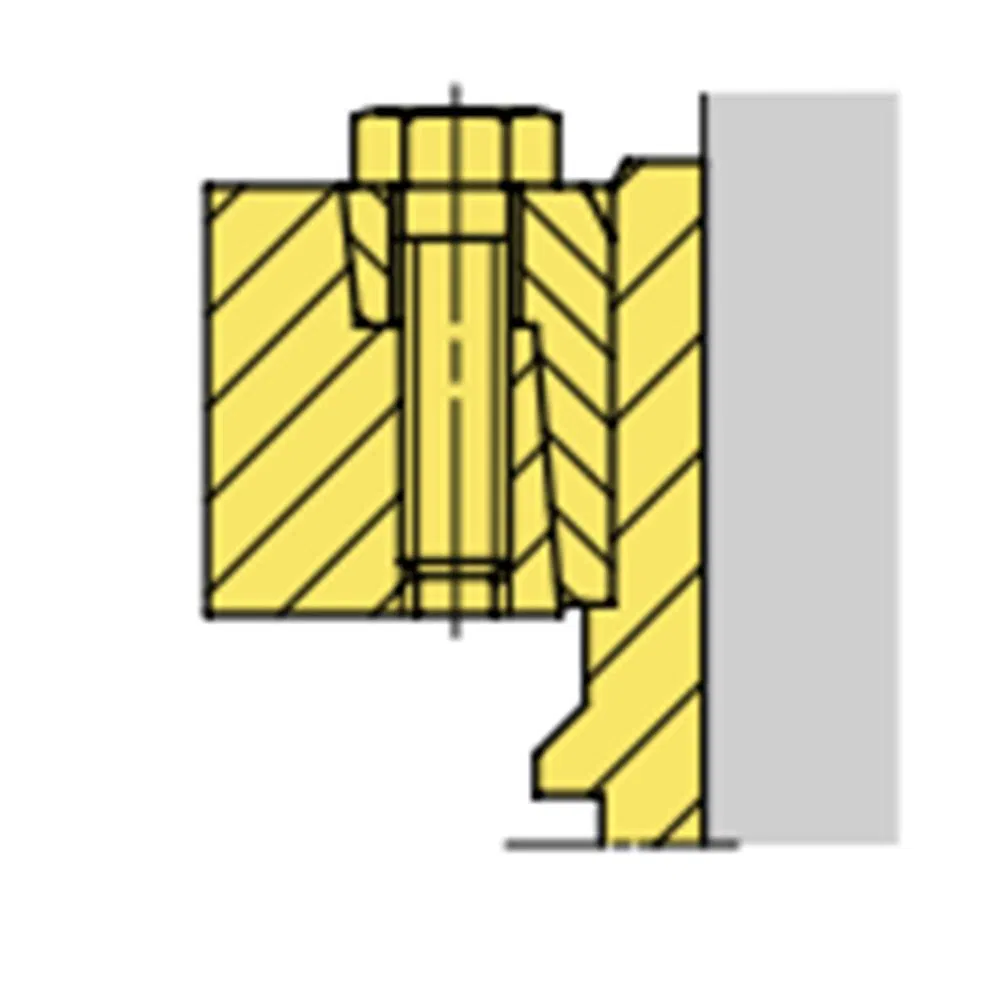

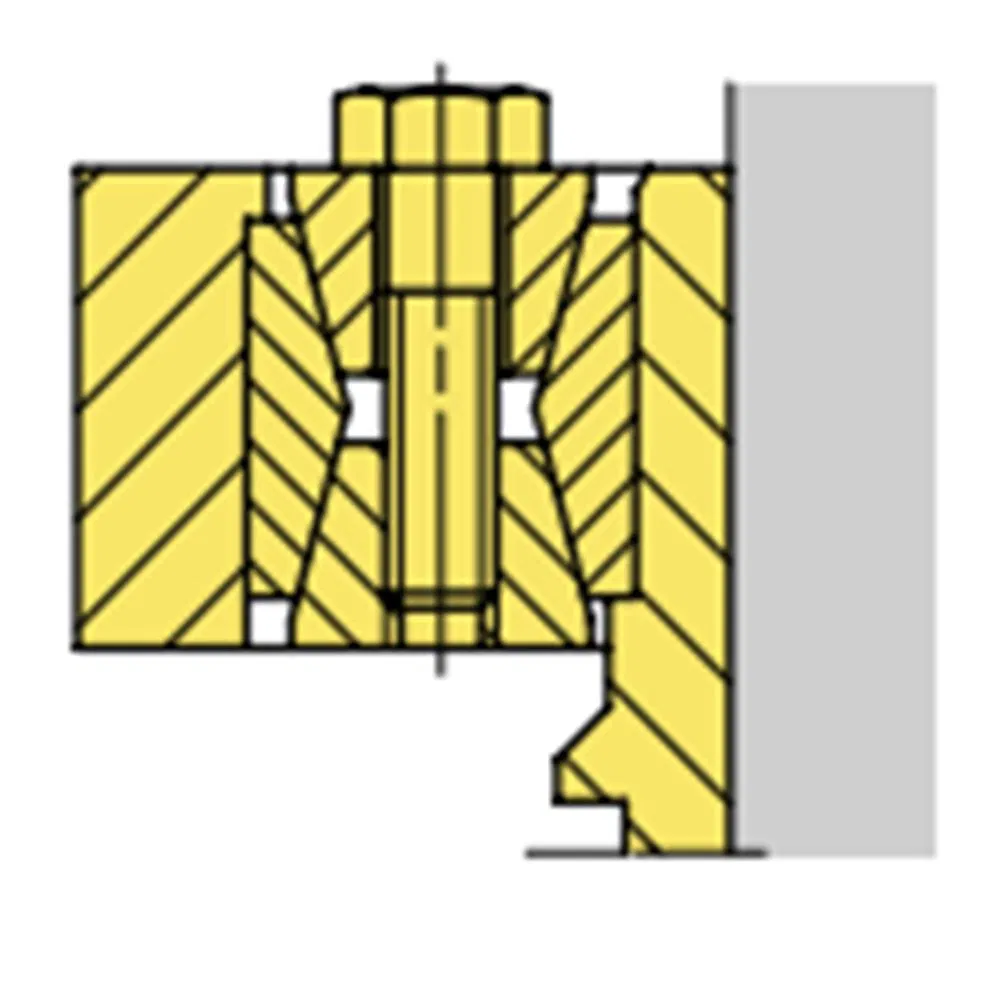

  Clamping set                                                                                                                Shrink disk
