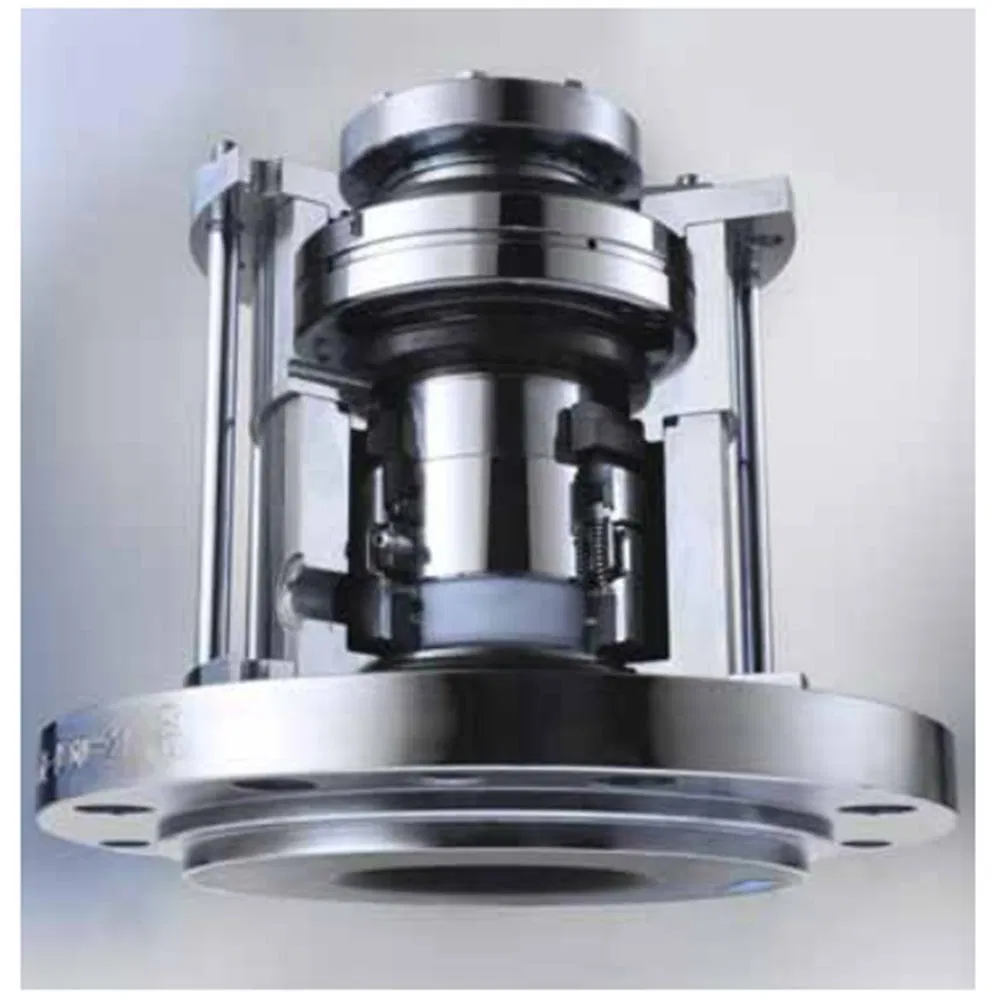

(1)Features
• For top entry drives
• For glass-lined vessels, acc. to DIN 28138 T2
• Double seal, single seal on request
• Unbalanced
• Independent of direction of rotation
• Multiple springs rotating
• Cartridge unit
(2)Advantages
• Ready-to-fit and factory-tested units
• Available with or without floating bearing
• Suitable for standardizations
• FDA certification
• Double seals can be applied at higher pressure and rotating speed than specified by DIN
• Due to the hydraulic conditions, product pressure as well overlaying barrier pressure closes the seal
• The seal can be lifted off the glass-lined flange ring as a complete cartridge. The sensitive glass lined flange remains mounted on the vessel.
(3)Operating range (see note on page 1)
Shaft diameter: d3 = 40 ... 160 mm (1.57" ... 6.30")
Pressure: p1 = vacuum ... 16 bar (232 PSI),
p3 = max. 18 bar (261 PSI)
Temperature: t1 = -40 °C ... +200 (250) °C
(-40 °F ... +392 (482) °F)
Sliding velocity: vg = 0 ... 5 m/s (0 ... 16 ft/s)
For applications beyond this range, please inquire.
(4)Materials
According to application and customer's specification

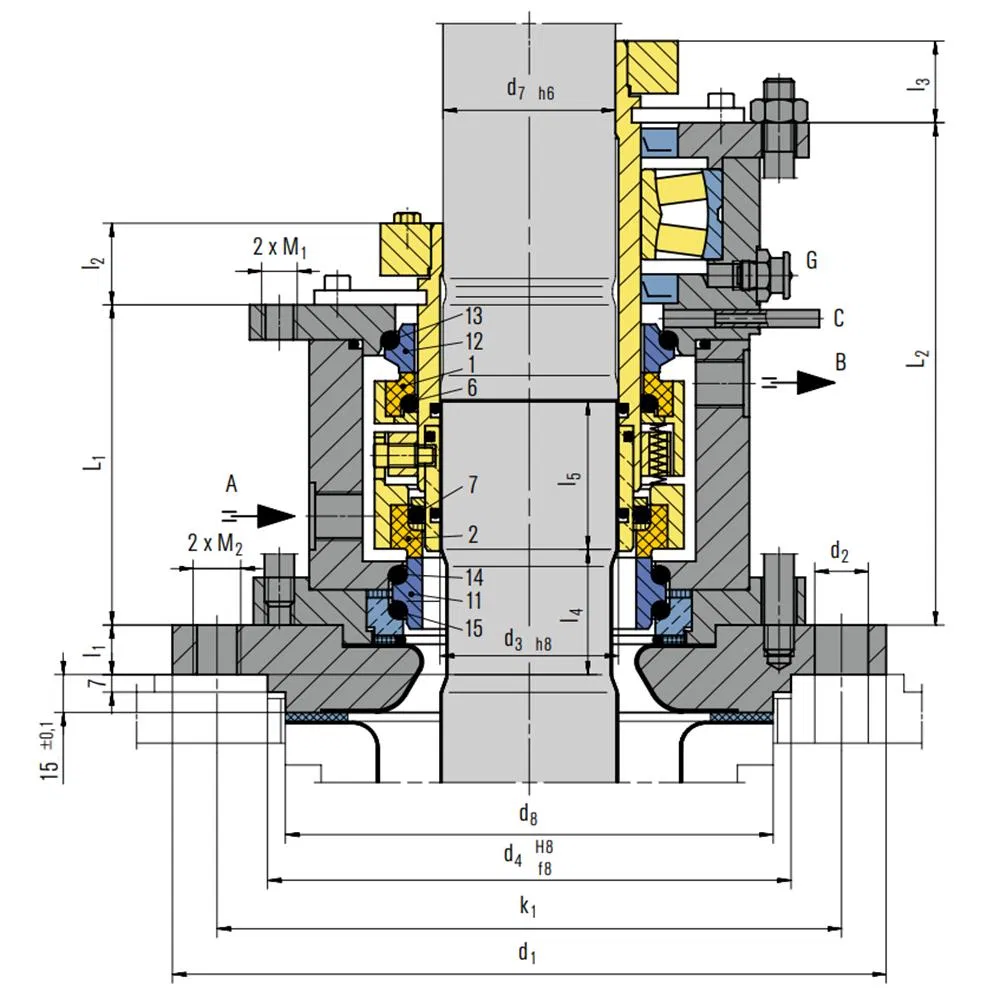

(5)Item Description
1 Seal face, atmosphere side
2 Seal face, product side
6, 7, 13, 14, 15 O-Ring
11 Seat, product side
12 Seat, atmosphere side
(6)Standards and approvals
• Material approvals: FDA
• DIN 28136 (for glass-lined vessels)
• DIN 28137T2
• DIN 28159
(7)Recommended seal supply
• Closed circuit EagleBurgman TS system,
• Open circuit EagleBurgman SPA, EagleBurgman SPN
(8)Notes
Options:
• Cooling or heating flange
• Leakage drain, flush or heating flange
• Leakage drain or flush
• Polymerization barrier, leakage drain or flush
See page 259.

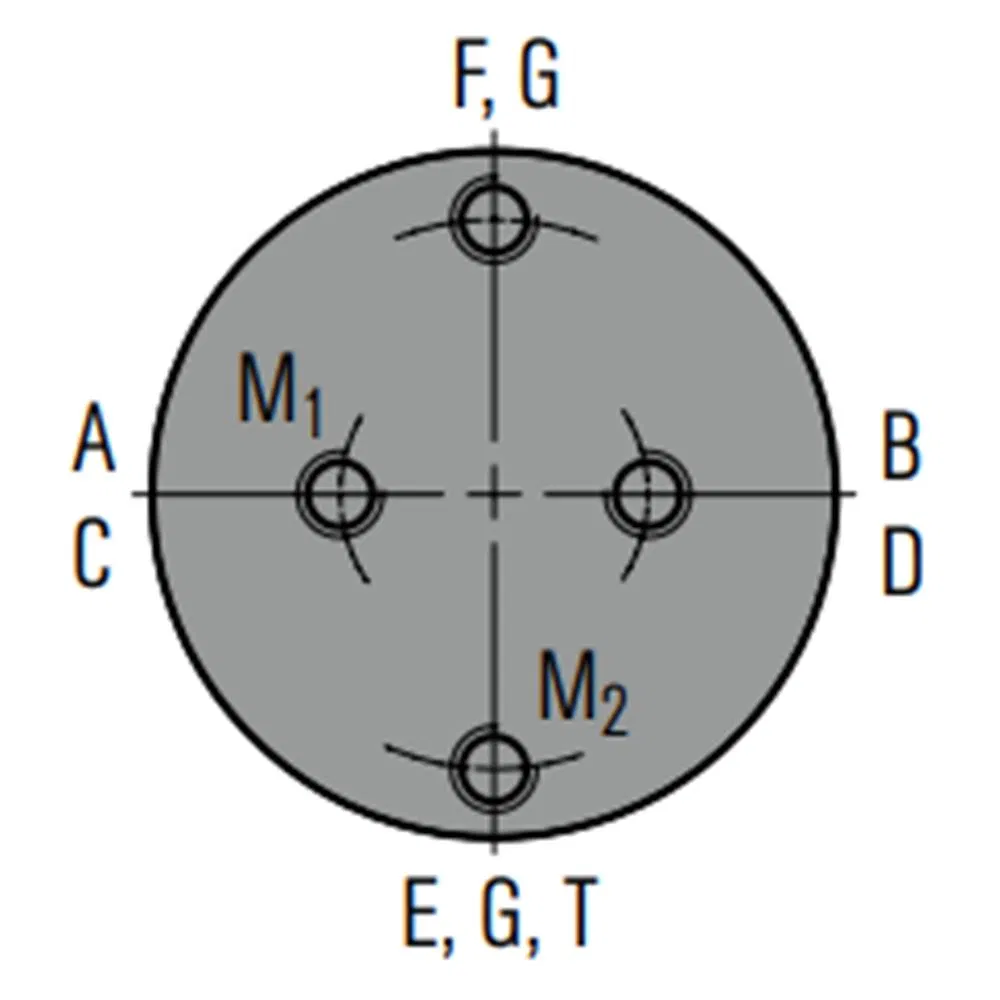

Designation and positions of screwed connections, pull-off
and jacket threads acc. to DIN 28138 T3.
A Barrier fluid resp. quench IN
B Barrier fluid resp. quench OUT
C Drainage
D Leakage drain G1/8"
E Cooling IN G3/8"
F Cooling OUT G3/8"
G Grease
T Temperature metering
(9)Recommended applications
•Chemical industry
• Pharmaceutical industry
• Non-toxic media with single seal
• Toxic media with double seal
• Agitators
• Reactors
(10)Product variants
(11)Torque transmissions

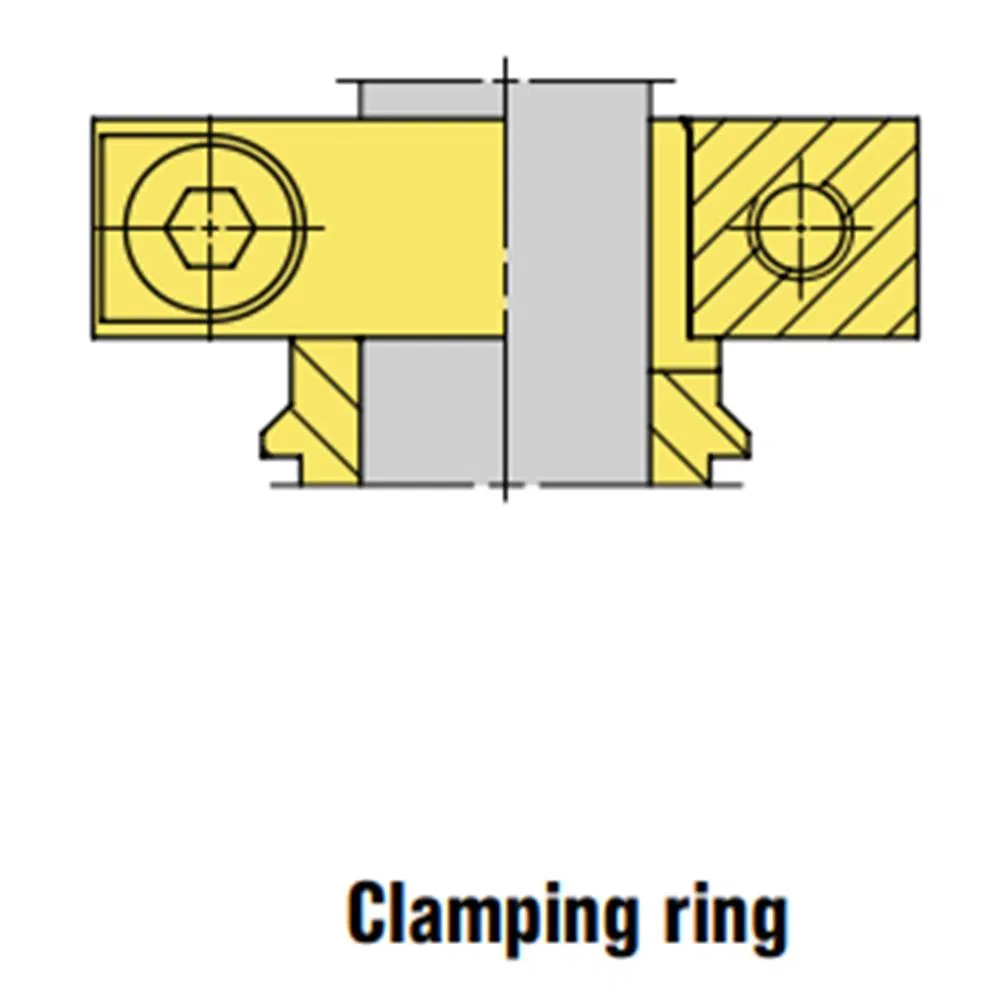

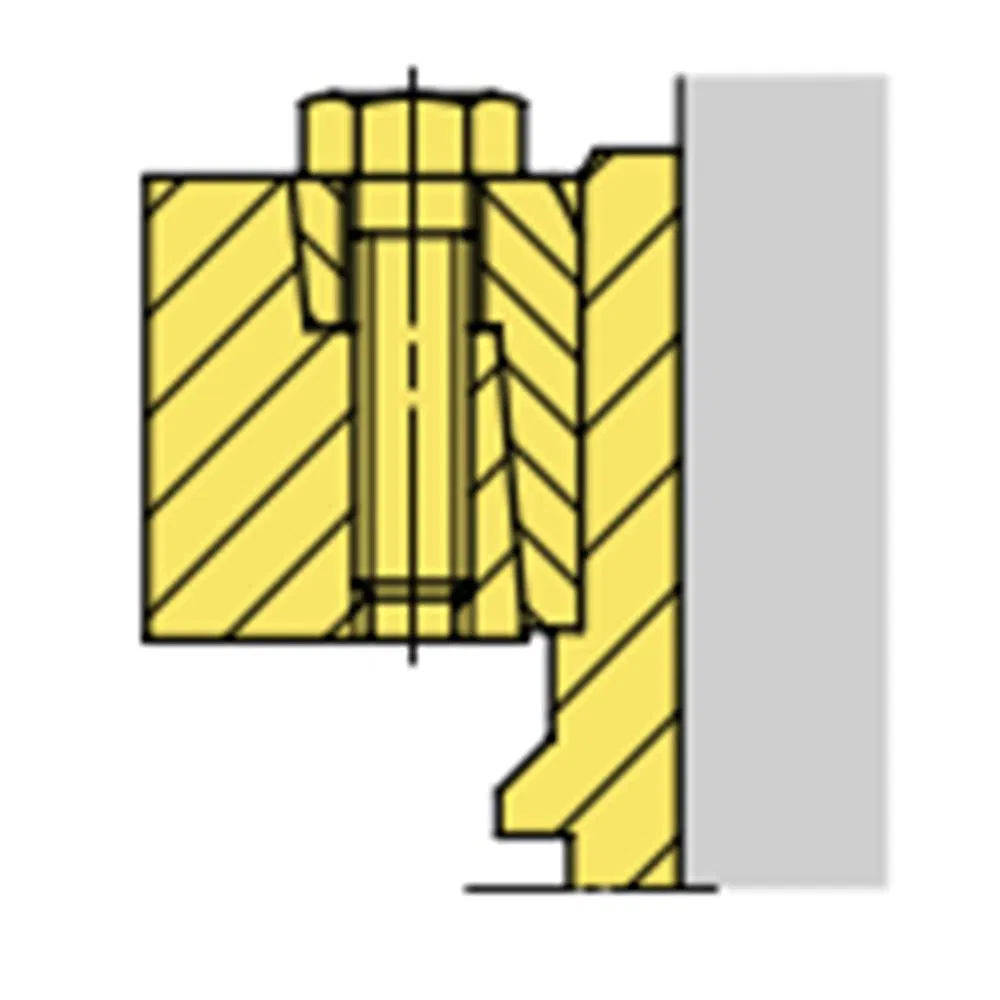

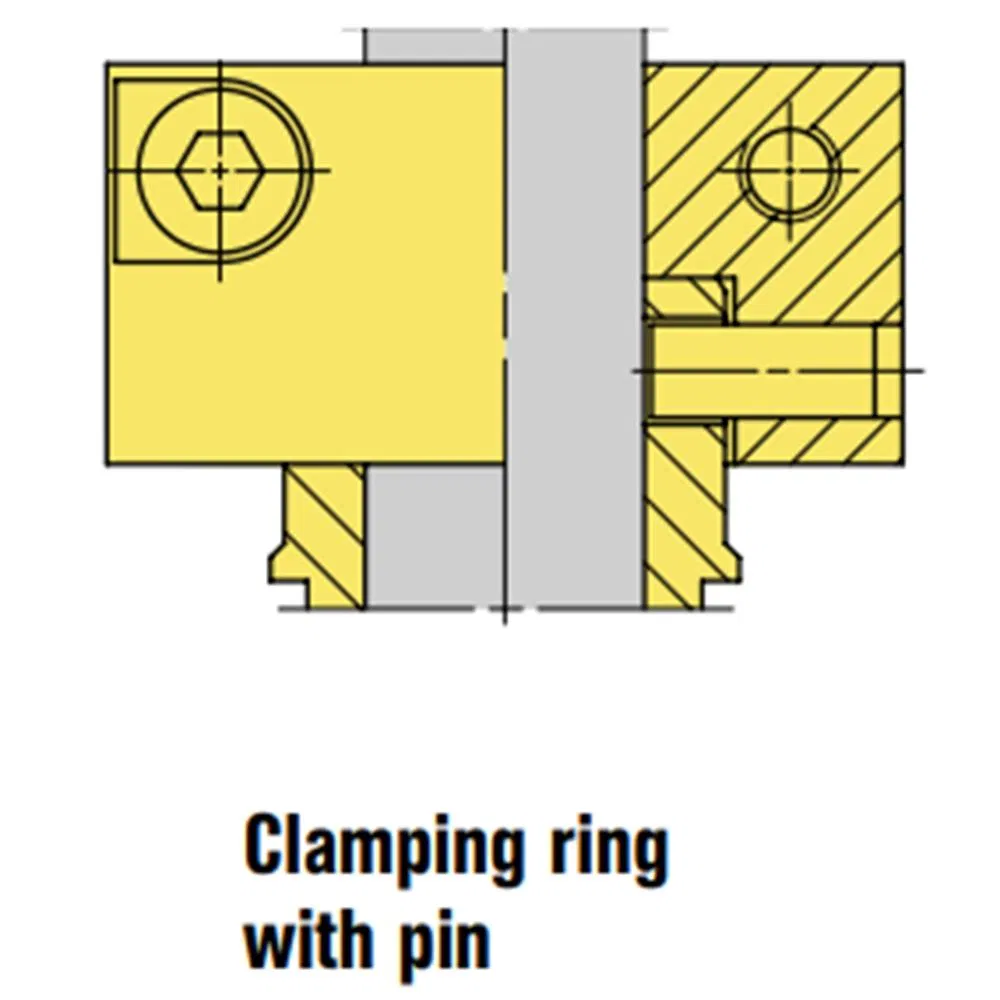

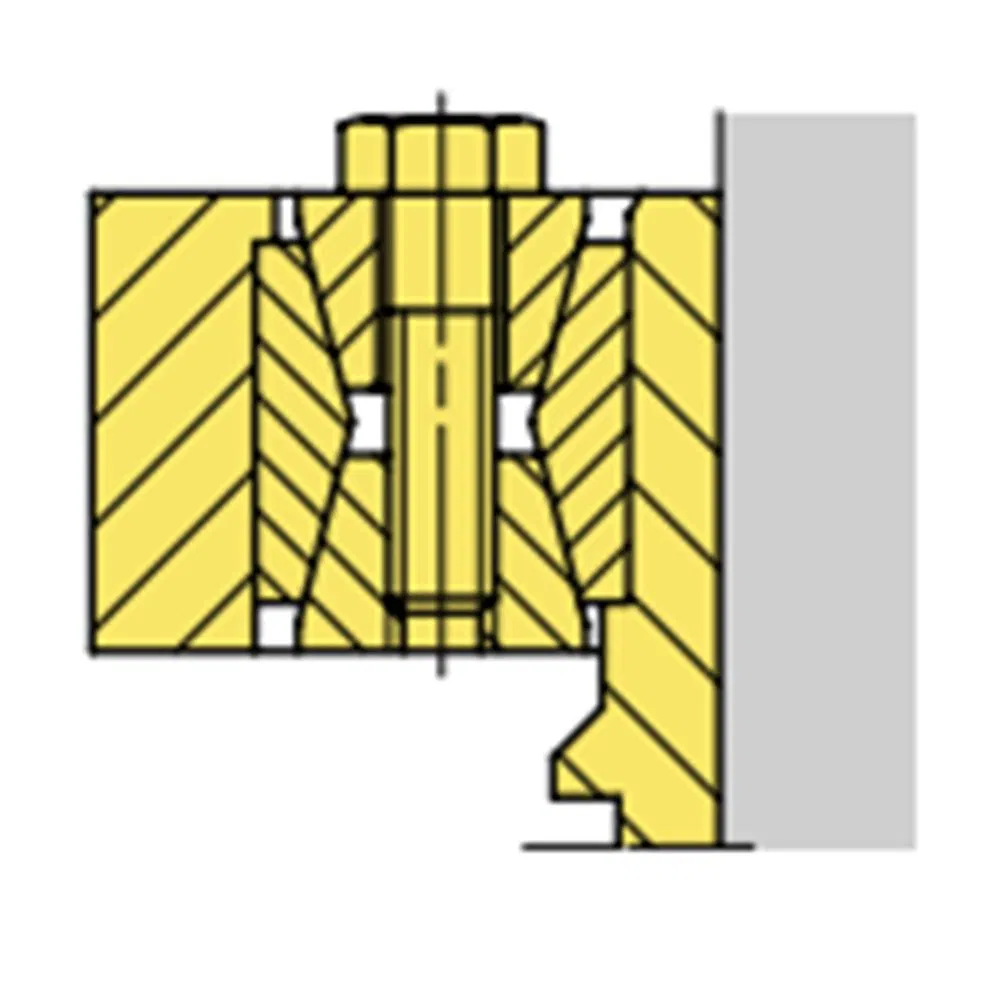

Clamping set Shrink disk

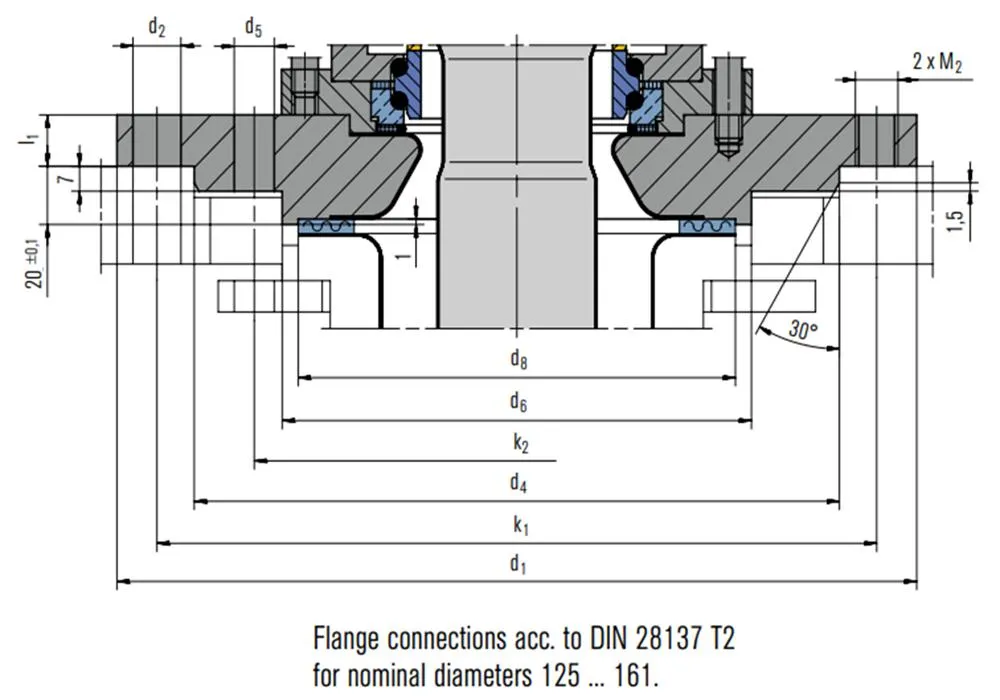

Dimensions in mm
| d31) | d71) | Nominal | Flange | d1 | nxd2 | d4 | nxd5 d6 | d6 | d8 | k1 | k2 | L1 | L2 | l1 | l2 | I3 | l4 | l5 | M1 | M2 | A,B |
| 40 | 38.0 | 40.0 | E125 | 175.0 | 4 x 18 | 110.0 | - | - | 102.0 | 145.0 | - | 107.0 | 156.0 | 25.0 | 35.0 | 28.0 | 50.0 | 50.0 | M12 | M16 | G3/8 |
| 50 | 48.0 | 50.0 | E200 | 240.0 | 8 x 18 | 176.0 | - | - | 138.0 | 210.0 | - | 107.0 | 167.0 | 25.0 | 40.0 | 28.0 | 50.0 | 50.0 | M12 | M16 | G3/8 |
| 60 | 58.0 | 60.0 | E250 | 275.0 | 8 x 22 | 204.0 | - | - | 188.0 | 240.0 | - | 116.0 | 175.0 | 25.0 | 42.0 | 28.0 | 50.0 | 60.0 | M12 | M20 | G3/8 |
| 80 | 78.0 | 80.0 | E300 | 305.0 | 8 x 22 | 234.0 | - | - | 212.0 | 270.0 | - | 125.0 | 206.0 | 30.0 | 45.0 | 34.0 | 60.0 | 60.0 | M16 | M20 | G1/2 |
| 100 | 98.0 | 100.0 | E400 | 395.0 | 12 x 22 | 313.0 | - | - | 268.0 | 350.0 | - | 125.0 | 143.0 | 30.0 | 52.0 | 34.0 | 60.0 | 60.0 | M16 | M20 | G1/2 |
| 100 | 98.0 | 100.0 | E500 | 395.0 | 12 x 22 | 313.0 | - | - | 268.0 | 350.0 | - | 125.0 | 143.0 | 30.0 | 52.0 | 34.0 | 60.0 | 60.0 | M16 | M20 | G1/2 |
| 125 | 120.0 | 125.0 | E700 | 505.0 | 4 x 22 | 422.0 | 12x22 | 320.0 | 306.0 | 460.0 | 350.0 | 133.0 | 226.0 | 30.0 | 75.0 | 40.0 | 60.0 | 80.0 | M20 | M20 | G1/2 |
| 140 | 135.0 | 140.0 | E700 | 505.0 | 4 x 22 | 422.0 | 12x22 | 320.0 | 306.0 | 460.0 | 350.0 | 144.0 | 242.0 | 30.0 | 79.0 | 40.0 | 60.0 | 80.0 | M20 | M20 | G1/2 |
| 160 | 150.0 | 160.0 | E700 | 505.0 | 4 x 22 | 422.0 | 12x22 | 320.0 | 306.0 | 460.0 | 350.0 | 151.0 | 242.0 | 30.0 | 77.0 | 40.0 | 60.0 | 85.0 | M20 | M20 | G1/2 |
| 160 | 150.0 | 160.0 | E900 | 505.0 | 4 x 22 | 422.0 | 12x22 | 320.0 | 306.0 | 460.0 | 350.0 | 151.0 | 242.0 | 30.0 | 77.0 | 40.0 | 60.0 | 85.0 | M20 | M20 | G1/2 |
| 160 | 150.0 | 161.0 | E901 | 565.0 | 4 x 26 | 474.0 | 12x22 | 370.0 | 356.0 | 515.0 | 400.0 | 151.0 | 242.0 | 30.0 | 77.0 | 40.0 | 60.0 | 85.0 | M20 | M20 | G1/2 |
| 1) Shaft diameters d3 and d7 to DIN 28159 | |||||||||||||||||||||
| 2) Flange size to DIN 28137T2 | |||||||||||||||||||||
