| Customization: | Available |
|---|---|
| Structure: | Single End |
| Pressure: | High Pressure Mechanical Seals |
| Quantity: | |
|---|---|

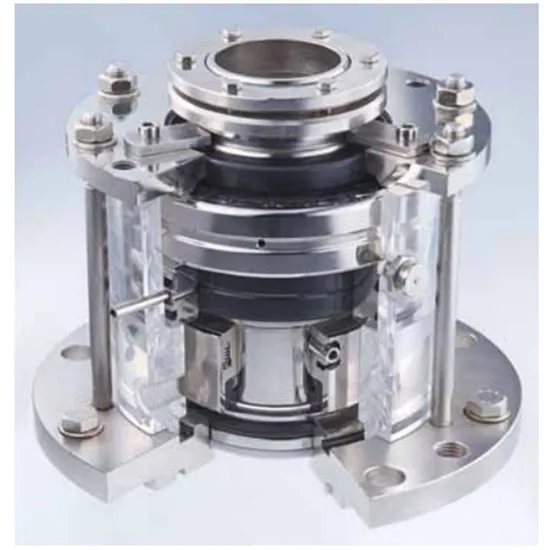

(1)Features
• For top entry drives, type M481 to DIN
• Single or double seals
• Unbalanced
• Independent of direction of rotation
• Multiple springs rotating
• Liquid-lubricated
• Cartridge unit
(2)Advantages
• Ready-to-fit and factory-tested units
• Available with or without floating bearing
• Suitable for standardizations
• FDA certification
• Double seals can be applied at higher pressure and rotating speed than specified by DIN
• Due to the hydraulic conditions, product pressure as well overlaying barrier pressure closes the seal.
(3)Operating range (see note on page 1)
DIN 28138 T2
Shaft diameter: d3 = 40 ... 220 mm (1,57" .... 8,66")
Single seals:
Pressure: p1 = vacuum ... 6 bar (87 PSI),
p3 = pressureless
Temperature: t1* = -40 °C ... +150 (250) °C (-40 °F ... +302 (482) °F)
Double seals:
Pressure: p1 = vacuum ... 16 bar (232 PSI),
p3 = max. 18 bar (261 PSI)
Temperature: t1* = -40 °C ... +200 (350) °C (-40 °F ... +392 (662) °F)
Sliding velocity: vg = 0 ... 5 m/s (0 ... 16 ft/s)
For applications beyond this range, please inquire.
* Higher or lower temperatures on request.
(4)Materials
According to application and customer's specification

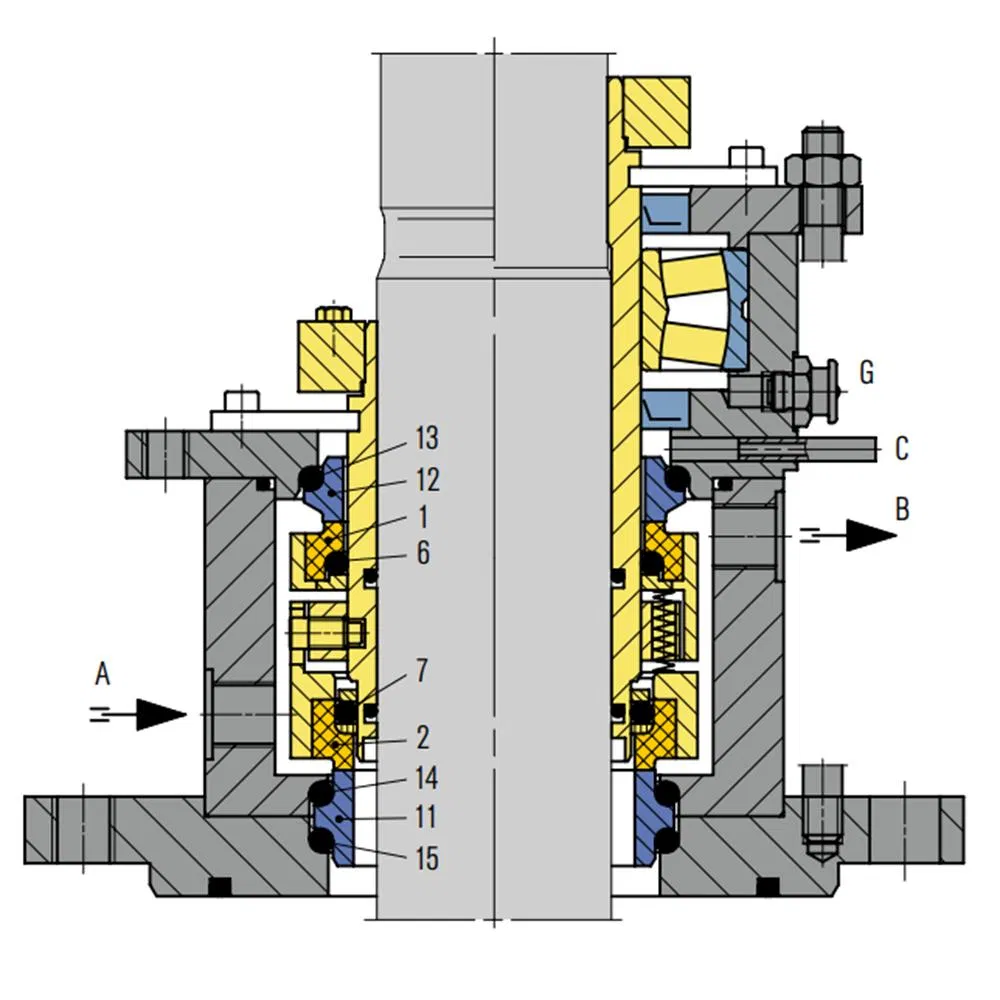

(5)Item Description
1 Seal face, atmosphere side
2 Seal face, product side
6 O-Ring
7 O-Ring
11 Seat, product side
12 Seat, atmosphere side
13 O-Ring
14 O-Ring
15 O-Ring
34 Shaft seal
(6)Standards and approvals
• Material approvals: FDA
• DIN 28136 (for steel vessels)
• DIN 28141 (flange connection)
• DIN 28154 (shaft end)
(7)Recommended seal supply
Closed circuit EagleBurgman TS system, open circuit
EagleBurgman SPA, EagleBurgman SPN
(8)Recommended applications
• Chemical industry
• Pharmaceutical industry
• Non-toxic media with single seal
• Toxic media with double seal
• Agitators
• Reactors

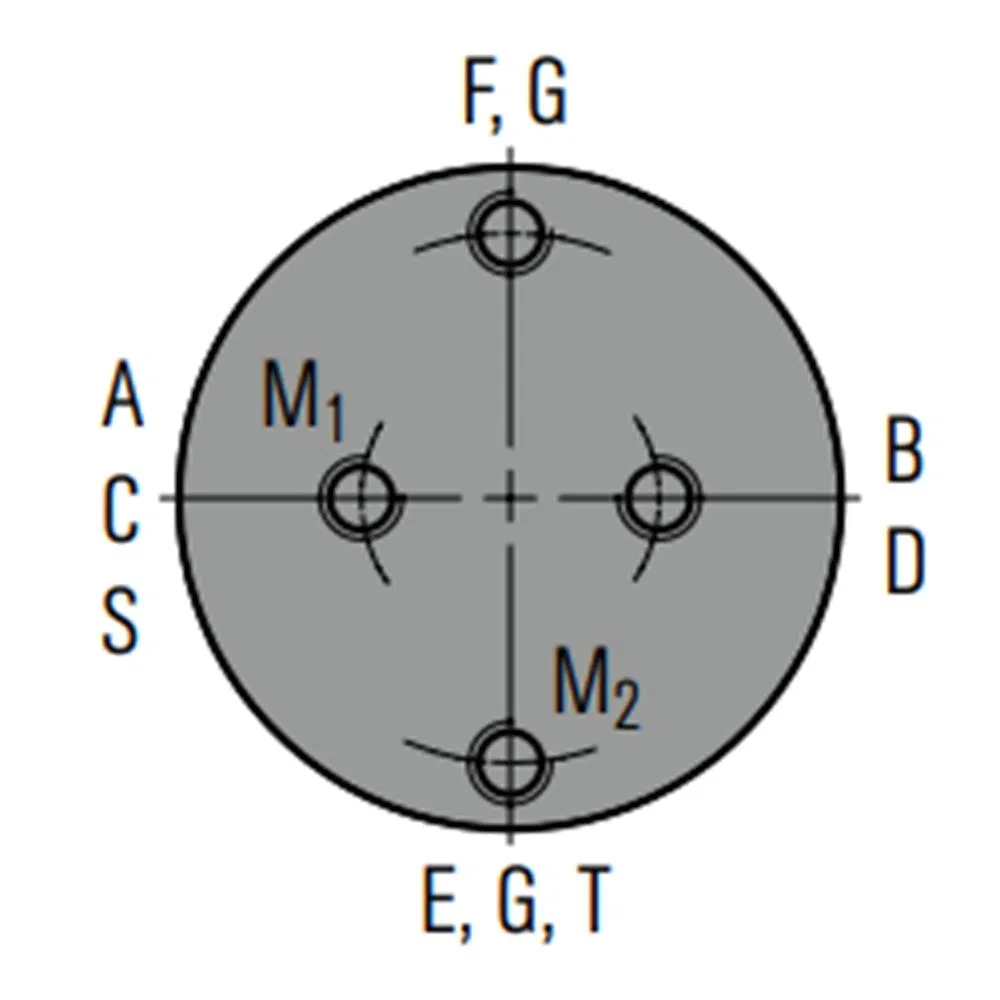

Designation and position acc. to DIN 28138 T3.
A Barrier fluid resp. quench IN
B Barrier fluid resp. quench OUT
C Drainage
D Leakage drain G1/8"
E Cooling IN G3/8"
F Cooling OUT G3/8"
G Grease
S Flush
T Temperature metering
For reasons of standardization, the supply connections of
single seals are matched to those of the double seals (in
deviation from DIN 28138T3).
(9)Notes
Options:
• Cooling or heating flange
• Leakage drain, flush or heating flange
• Leakage drain or flush
• Polymerization barrier, leakage drain or flush
See page 259.
(10)Product variants
M481K
Single seal
M481KL
Single seal with integrated floating bearing.
Operation of single seals only with pressureless quench.
M481K-D
Double seal
M481KL-D
Double seal with integrated floating bearing.
These seals are designed to be self-closing on the product
side, i.e. they will remain closed even with pressure
variations or a pressure reversal. Operation is optionally
the same as for the single version (pmax = 6 bar (87 PSI)
or Δpmax = 6 bar at p1 > p3). In view of the mechanical
seal on the atmosphere side it can be used as a buffer
pressurized double seal p1 = 16 bar (232 PSI).
M451
All types of the M481 range available for unstepped shafts
(all diameters). Seal identification: M451 ... Customized
design or e.g. different drives (torque transmissions) are available.

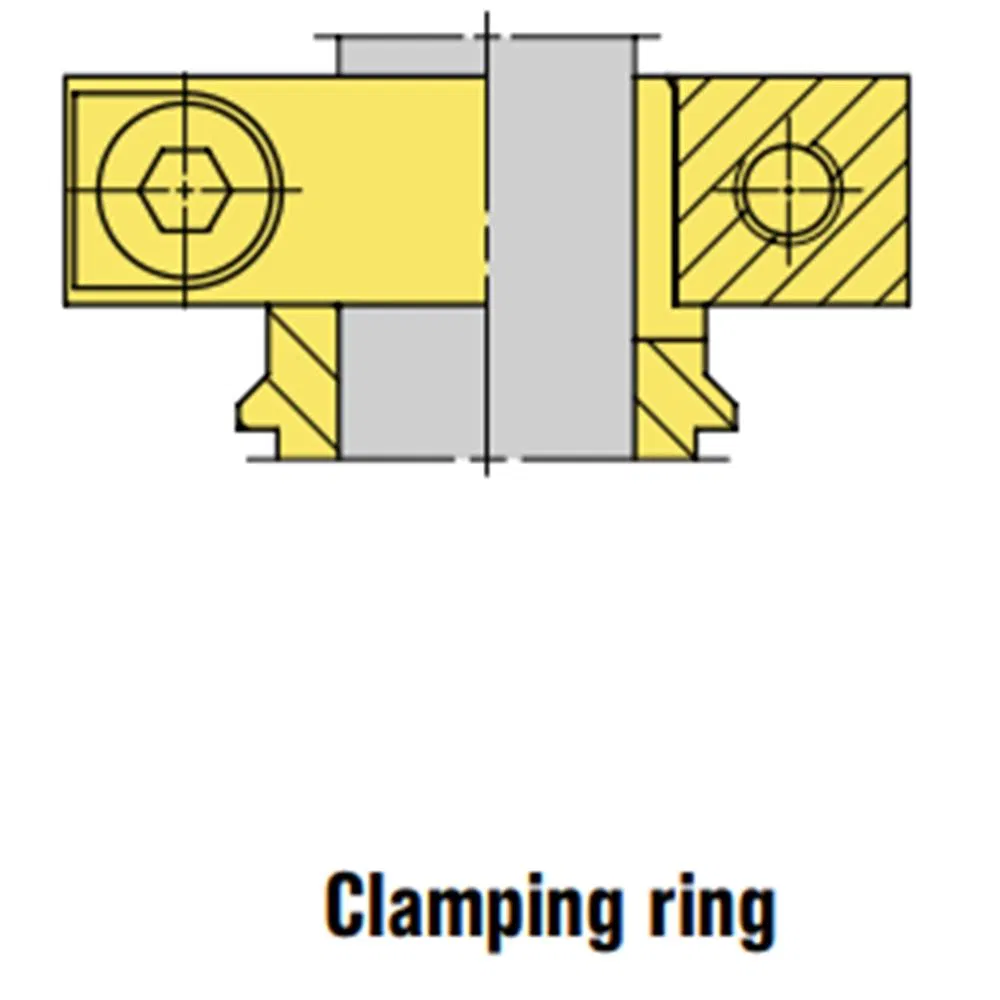

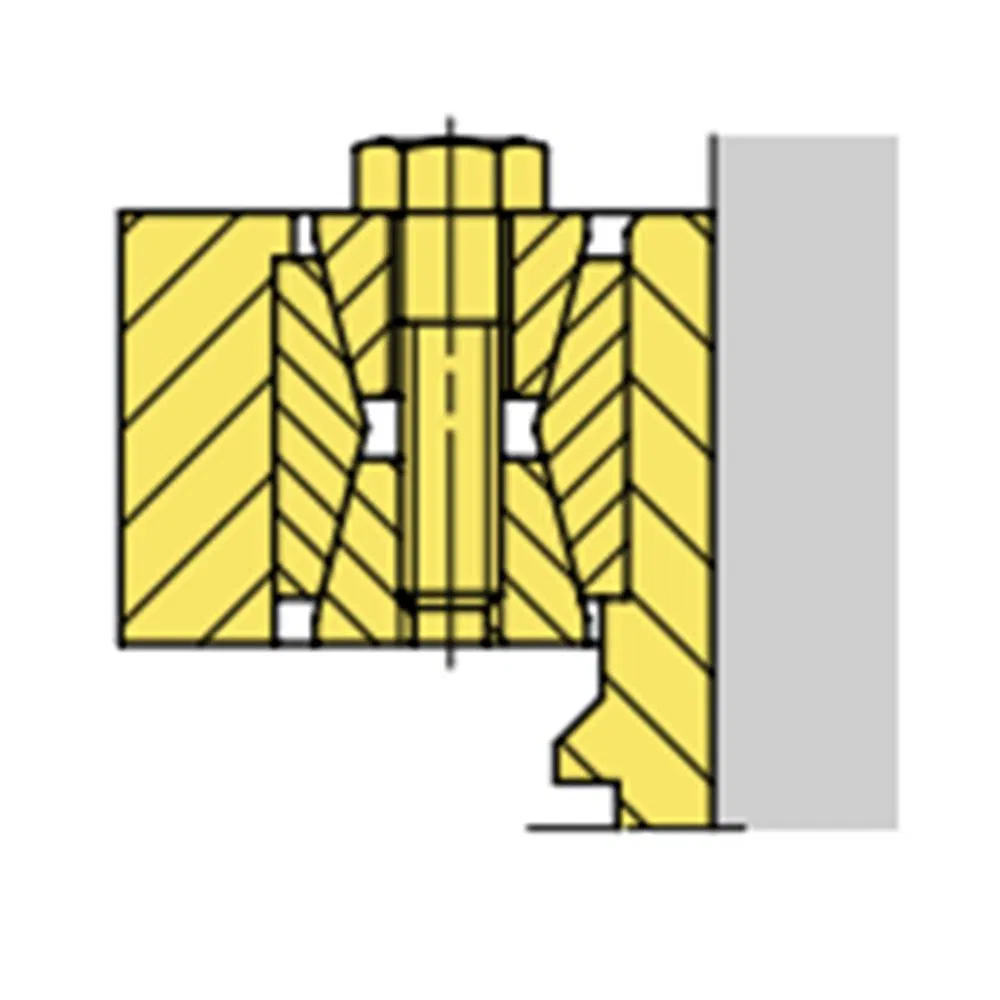

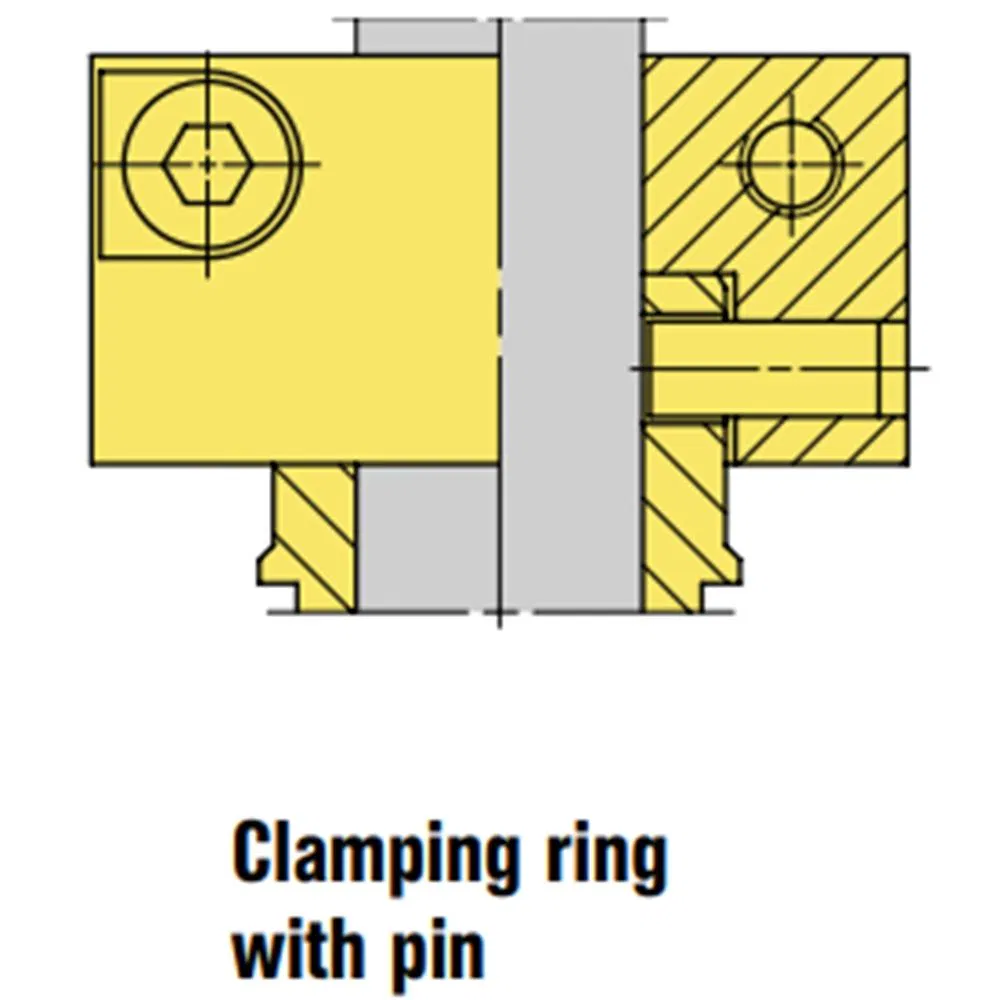

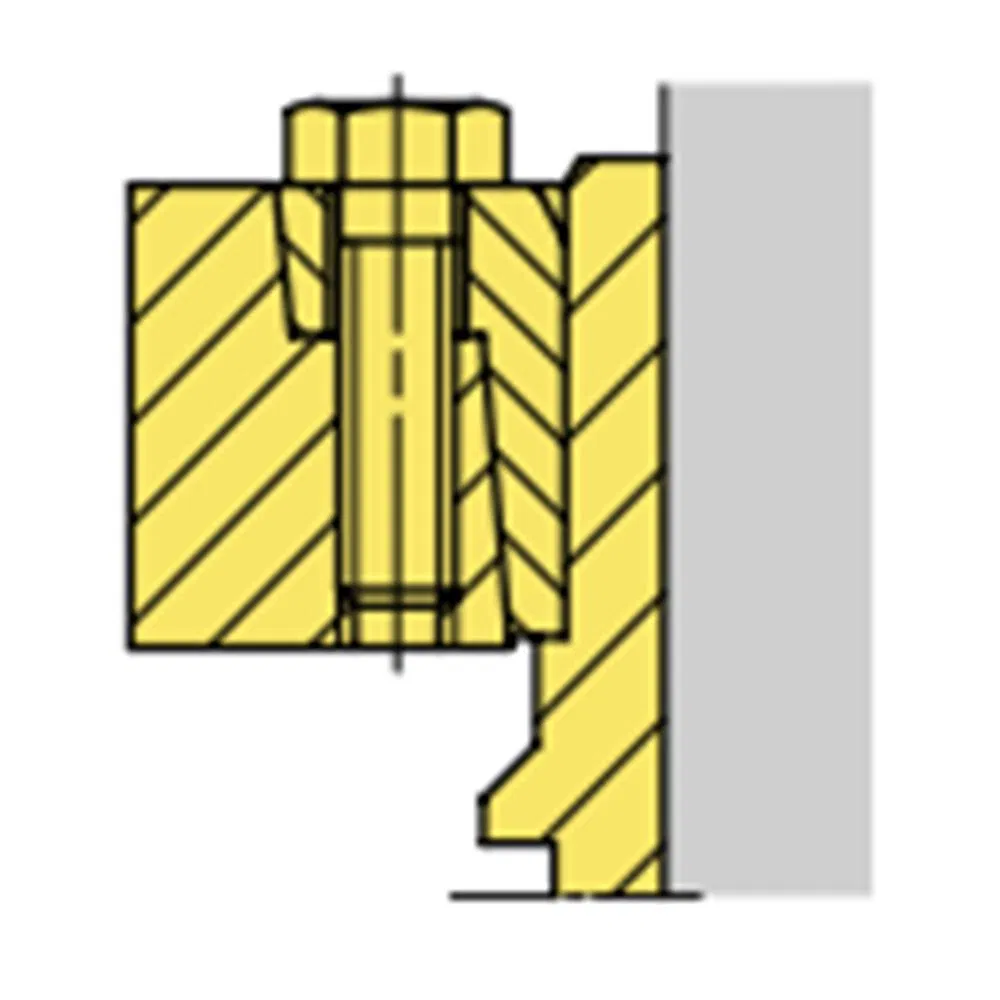

Clamping set Shrink disk

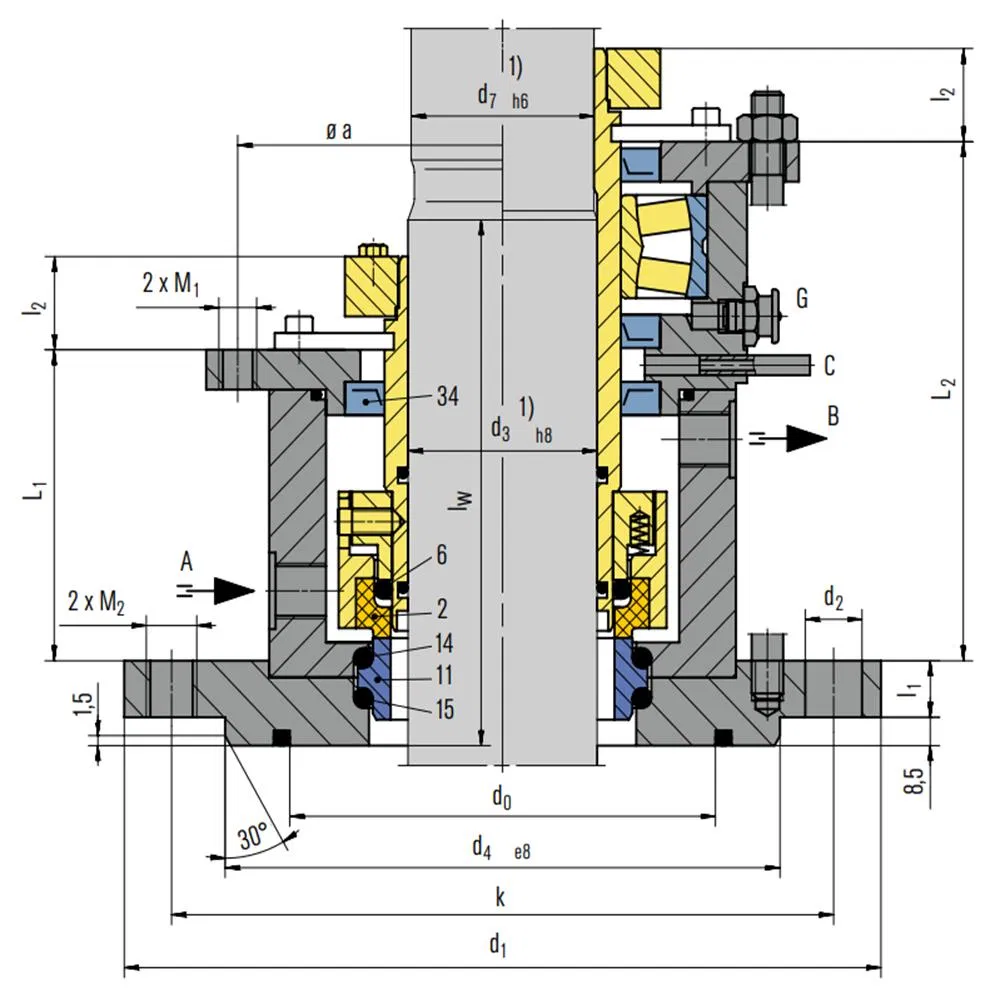

Dimensions in mm
| d31) | d71) | d1 | n x d2 | d4 | d0 | K | L1 | L2 | Lw2) | I1 | I2 | a | M1 | M2 | A, B |
| 40 | 38.0 | 175.0 | 4 x 18 | 110.0 | 90.0 | 145.0 | 87.0 | 136.0 | 143.0 | 15.0 | 28.0 | 122.0 | M12 | M16 | G3/8 |
| 50 | 48.0 | 240.0 | 8 x 18 | 1776.0 | 135.0 | 210.0 | 89.0 | 149.0 | 148.0 | 17.0 | 28.0 | 157.0 | M12 | M16 | G3/8 |
| 60 | 58.0 | 240.0 | 8 x 18 | 176.0 | 135.0 | 210.0 | 93.5 | 156.0 | 158.0 | 17.0 | 28.0 | 168.0 | M12 | M16 | G3/8 |
| 80 | 78.0 | 275.0 | 8 x 22 | 204.0 | 155.0 | 240.0 | 104.5 | 189.0 | 168.0 | 20.0 | 34.0 | 203.0 | M12 | M20 | G1/2 |
| 100 | 98.0 | 305.0 | 8 x 22 | 234.0 | 190.0 | 270.0 | 109.0 | 190.0 | 178.0 | 20.0 | 34.0 | 228.0 | M16 | M20 | G1/2 |
| 125 | 120.0 | 330.0 | 8 x 22 | 260.0 | 215.0 | 295.0 | 110.0 | 205.0 | 203.0 | 20.0 | 40.0 | 268.0 | M16 | M20 | G1/2 |
| 140 | 135.0 | 395.0 | 12 x 22 | 313.0 | 250.0 | 350.0 | 124.0 | 222.0 | 208.0 | 20.0 | 40.0 | 285.0 | M20 | M20 | G1/2 |
| 160 | 150.0 | 395.0 | 12 x 22 | 313.0 | 265.0 | 350.0 | 127.5 | 219.5 | 213.0 | 25.0 | 40.0 | 297.0 | M20 | M20 | G1/2 |
| 180 | 170.0 | 445.0 | 12 x 22 | 364.0 | 310.0 | 400.0 | 132.5 | 230.0 | 233.0 | 25.0 | 45.0 | 332.0 | M24 | M20 | G1/2 |
| 200 | 190.0 | 445.0 | 12 x 22 | 364.0 | 310.0 | 400.0 | 137.5 | 237.5 | 243.0 | 25.0 | 45.0 | 352.0 | M24 | M20 | G1/2 |
| 220 | 210.0 | 505.0 | 16 x 22 | 422.0 | 340.0 | 460.0 | 149.5 | 249.5 | 263.0 | 25.0 | 50.0 | 381.0 | M24 | M20 | G1/2 |
| 1) Shaft diameters d3 and d7 to DIN 281542) Shaft step to DIN 28154 | |||||||||||||||
| 2) Shaft step to DIN 28154 | |||||||||||||||
