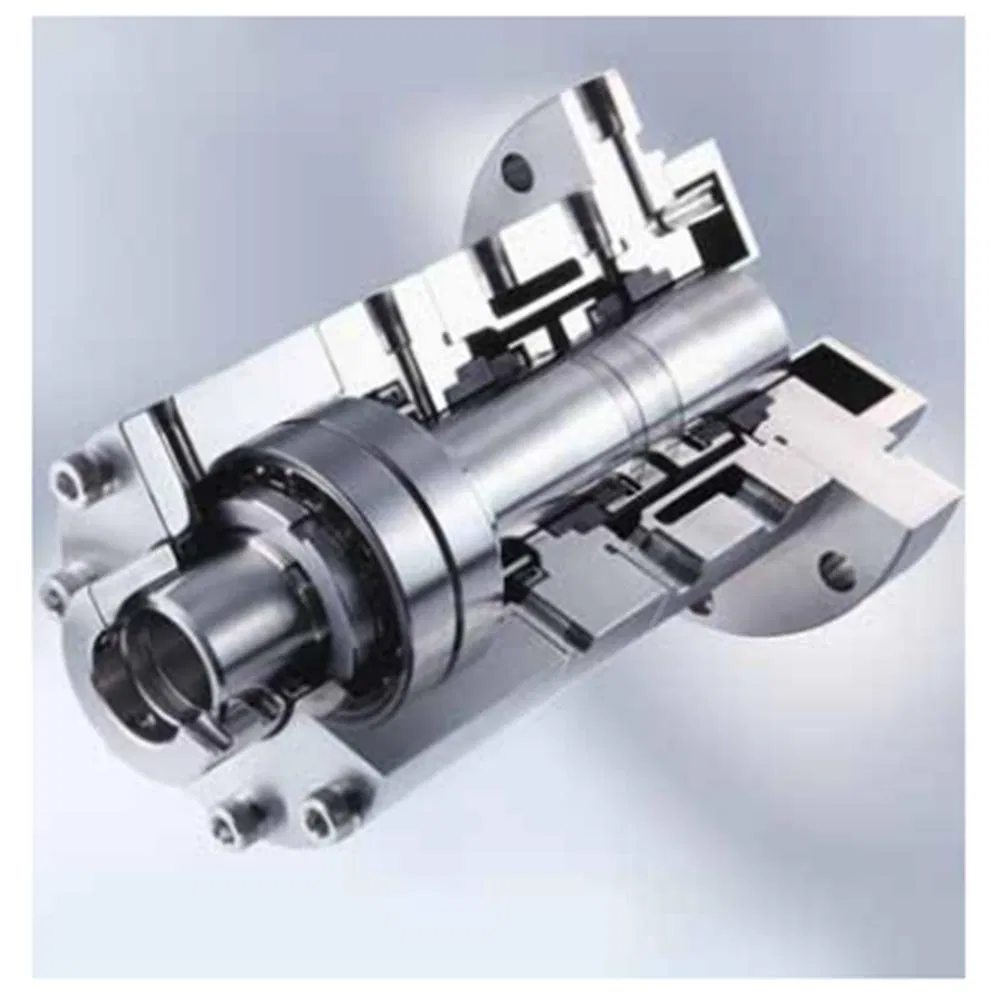

(1)Features
• Cartridge
• Double seal with integrated bearing
• Unbalanced
• Independent of direction of rota
(2)Operating range (see note on page 1)
Pressure: p = vacuum ... 10 bar (145 PSI)
Temperature: t = -30 °C ... +200 °C (-22 °F ... +392 °F)
Rotational speed: = max. 200 min -1
Axial movement: max. 0.3 mm
(3)Materials
Diameter 50 ... 100 mm:
Seal faces: Carbon graphite resin impregnated (B)
Seat: Silicon carbide (Q1), Tungsten carbide (U1),
Chromium oxide coated
Diameter 110 ... 200 mm:
Seal faces: Silicon carbide (Q1), Tungsten carbide (U1),
Chromium oxide coated
Seats: Carbon graphite resin impregnated (B),
Silicon carbide (Q1), Tungsten carbide (U1)
(4)Notes
Options:
Cooling jacket on the vessel side flange. Please inquire.
(5)Recommended applications
• Chemical industry
• Food and beverage industry
• Reactors
• Polymerization agitators
• Mixers

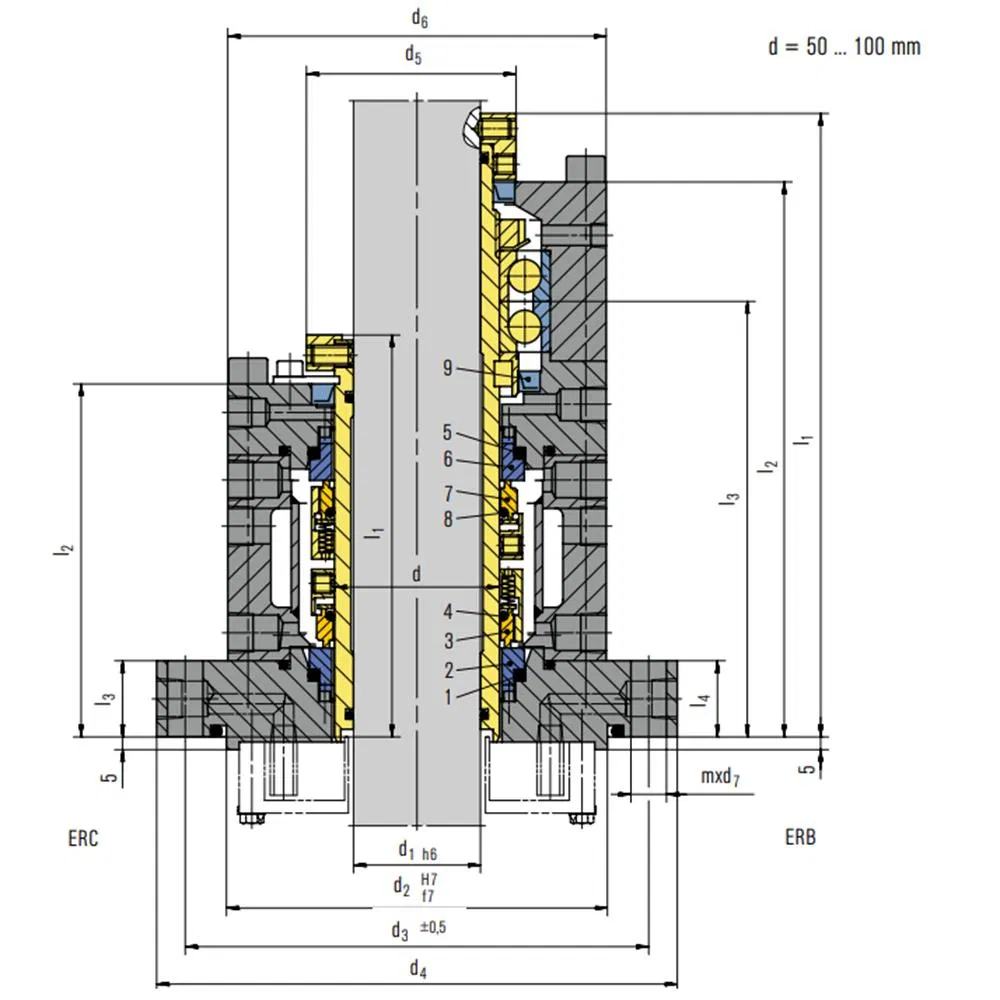

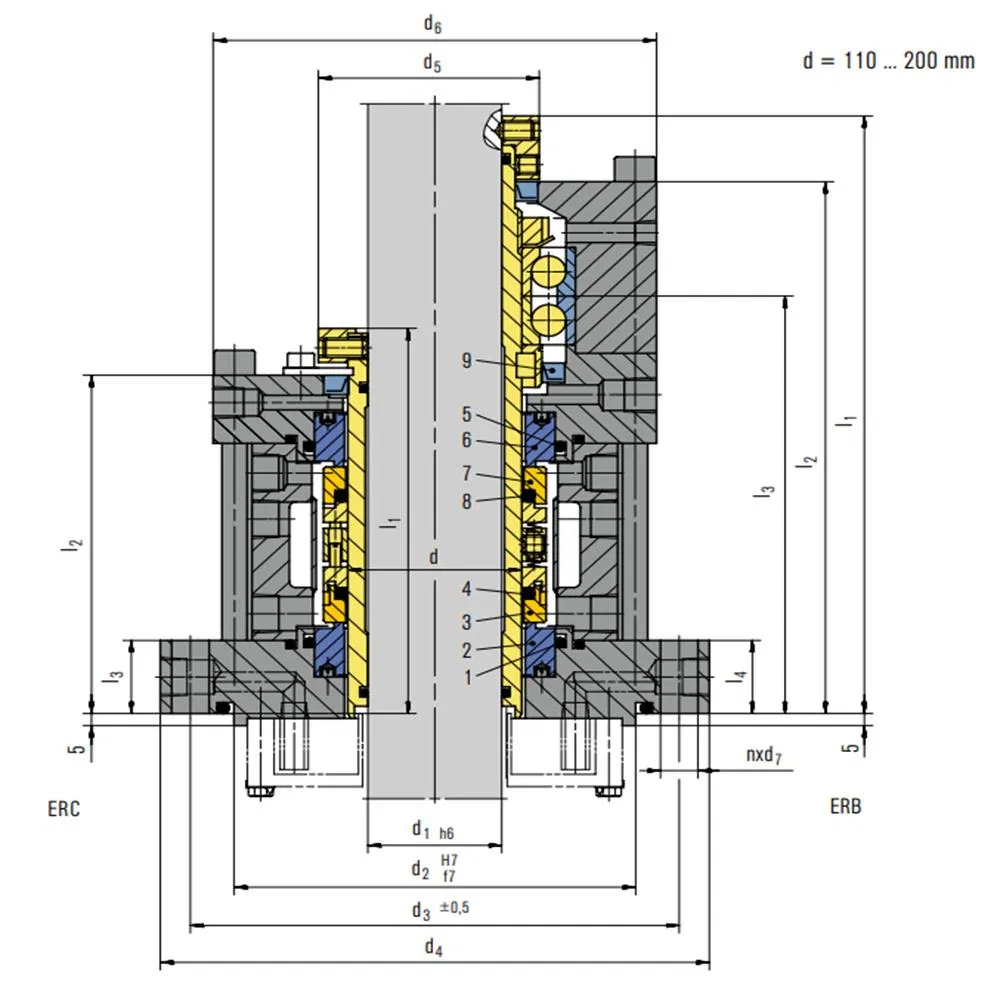

(6)Item Description
1 O-Ring
2 Seat
3 Seal face
4 O-Ring
5 O-Ring
6 Seat
7 Seal face
8 O-Ring
9 Shaft

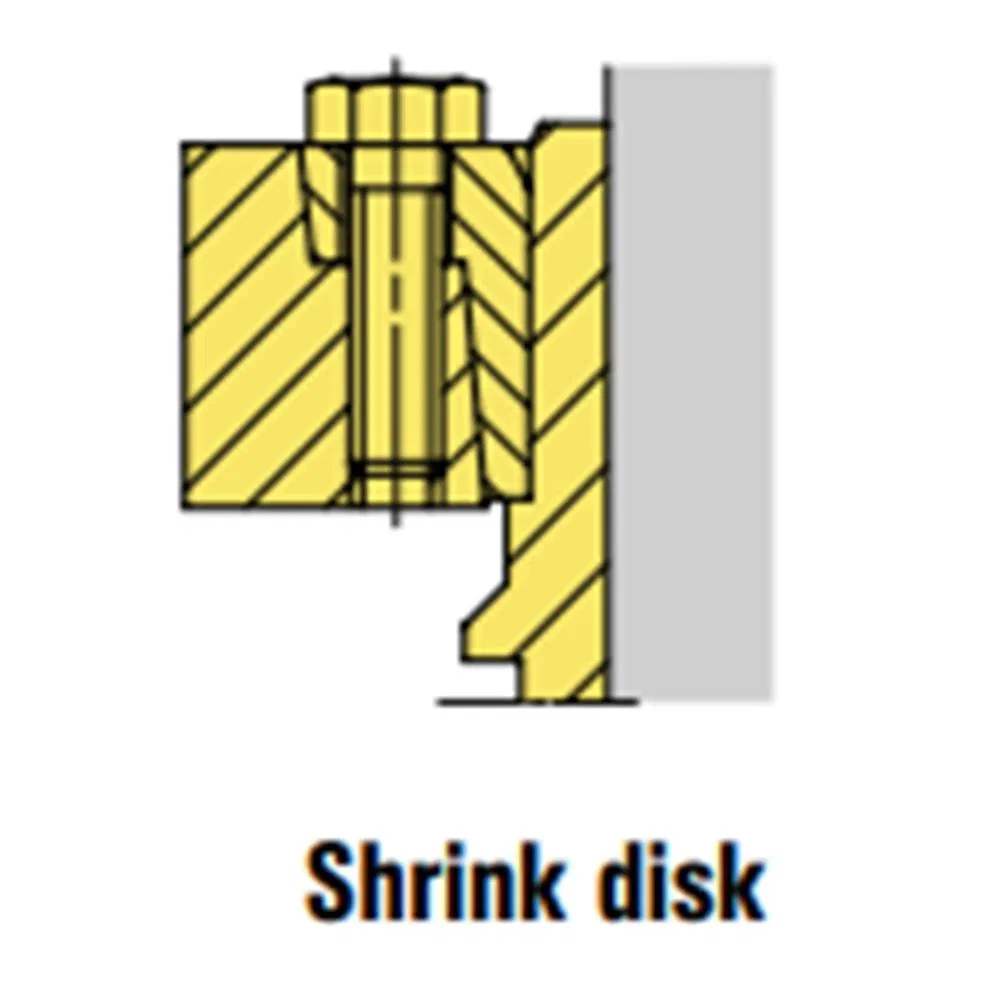

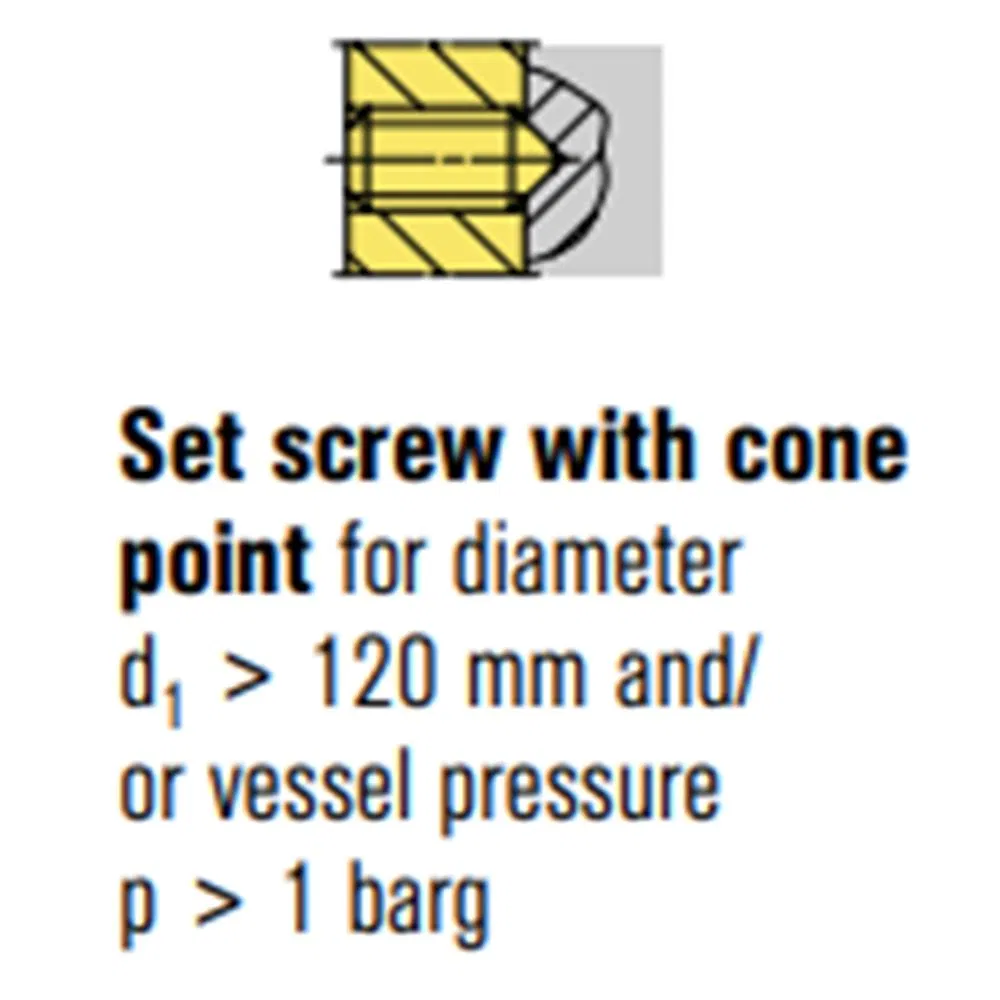

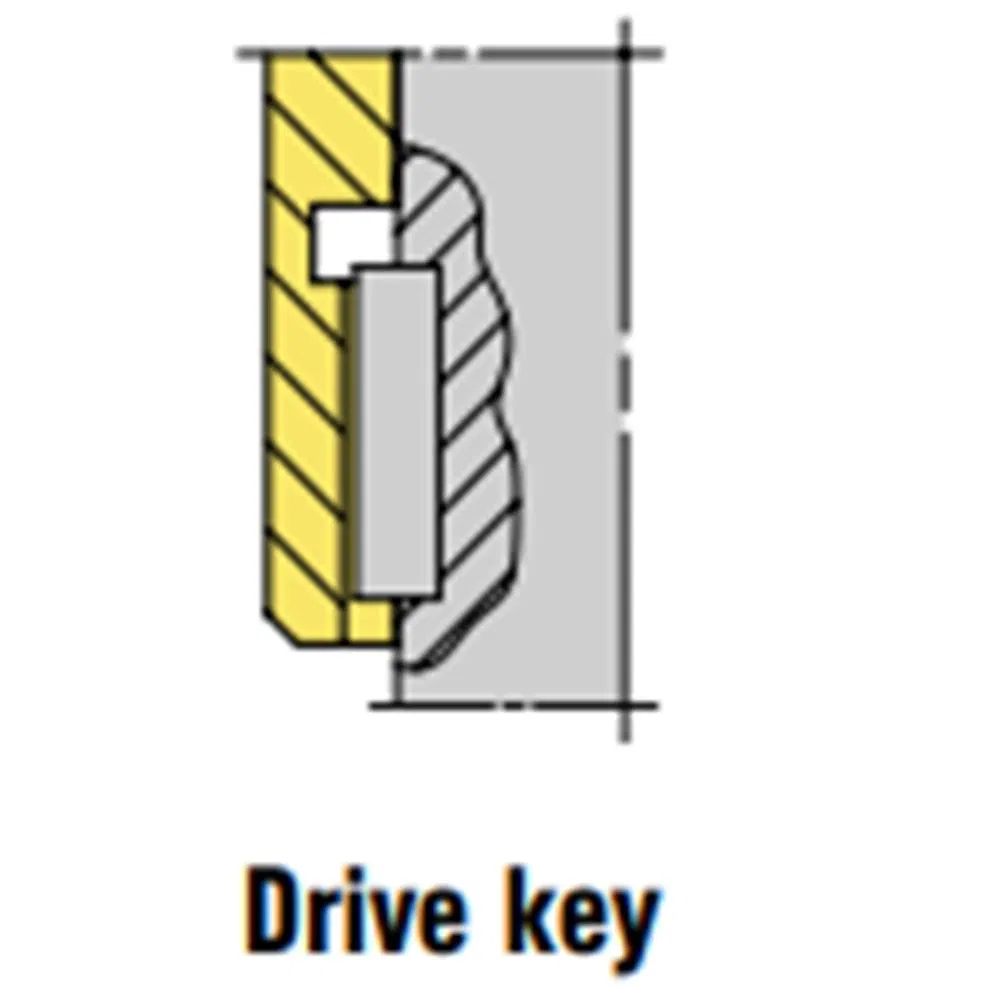

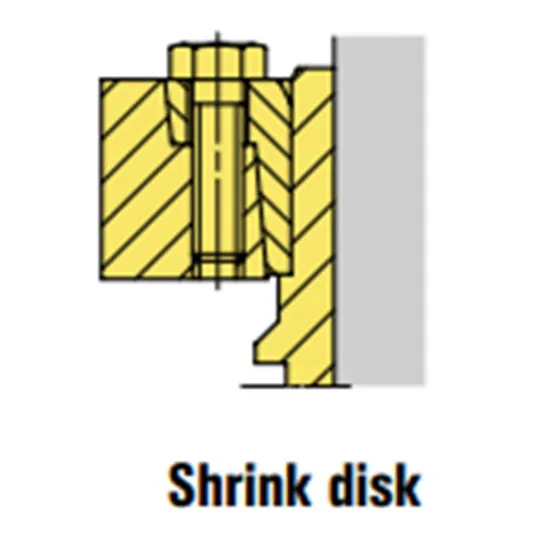

(7)Torque transmissions
ERB- Dimensions in mm
| d | d1 | d2 | d3 | d4 | d5 | d6 | d7 | L1 | L2 | L3 | L4 | n | Bearing Type |
| 50 | 35.0 | 135.0 | 170.0 | 195.0 | 61.0 | 134.0 | 14.0 | 268.0 | 237.0 | 185.0 | 30.0 | 8.0 | #7210ADB |
| 60 | 45.0 | 145.0 | 180.0 | 205.0 | 75.0 | 144.0 | 14.0 | 283.0 | 252.0 | 197.0 | 30.0 | 8.0 | #7212ADB |
| 70 | 55.0 | 155.0 | 190.0 | 215.0 | 85.0 | 154.0 | 14.0 | 293.0 | 262.0 | 205.0 | 30.0 | 8.0 | #7014ADB |
| 80 | 65.0 | 165.0 | 200.0 | 225.0 | 95.0 | 164.0 | 14.0 | 303.0 | 272.0 | 207.0 | 30.0 | 8.0 | #7016ADB |
| 90 | 75.0 | 175.0 | 210.0 | 235.0 | 105.0 | 174.0 | 14.0 | 323.0 | 287.0 | 219.0 | 30.0 | 8.0 | #7018ADB |
| 100 | 85.0 | 185.0 | 220.0 | 245.0 | 115.0 | 184.0 | 14.0 | 323.0 | 287.0 | 219.0 | 30.0 | 8.0 | #7020ADB |
| 110 | 95.0 | 205.0 | 240.0 | 265.0 | 125.0 | 218.0 | 14.0 | 333.0 | 291.0 | 216.0 | 30.0 | 8.0 | #7022ADB |
| 120 | 105.0 | 215.0 | 261.0 | 289.0 | 135.0 | 235.0 | 19.0 | 371.0 | 309.0 | 233.0 | 35.0 | 12.0 | #7024ADB |
| 130 | 110.0 | 225.0 | 271.0 | 299.0 | 145.0 | 245.0 | 19.0 | 364.0 | 322.0 | 238.0 | 35.0 | 12.0 | #7026ADB |
| 140 | 120.0 | 235.0 | 281.0 | 309.0 | 159.0 | 255.0 | 19.0 | 369.0 | 322.0 | 238.0 | 35.0 | 12.0 | #7028ADB |
| 150 | 130.0 | 280.0 | 335.0 | 375.0 | 169.0 | 295.0 | 23.0 | 424.0 | 377.0 | 288.0 | 45.0 | 12.0 | #7030ADB |
| 160 | 140.0 | 290.0 | 345.0 | 385.0 | 179.0 | 305.0 | 23.0 | 433.0 | 386.0 | 291.0 | 45.0 | 12.0 | #7032ADB |
| 170 | 150.0 | 300.0 | 355.0 | 395.0 | 189.0 | 315.0 | 23.0 | 452.0 | 400.0 | 295.0 | 45.0 | 12.0 | #7034ADB |
| 180 | 160.0 | 310.0 | 365.0 | 405.0 | 199.0 | 328.0 | 23.0 | 458.0 | 406.0 | 299.0 | 45.0 | 12.0 | #7036ADB |
| 190 | 170.0 | 320.0 | 375.0 | 415.0 | 209.0 | 338.0 | 23.0 | 473.0 | 416.0 | 309.0 | 45.0 | 12.0 | #7038ADB |
| 200 | 180.0 | 330.0 | 390.0 | 430.0 | 219.0 | 358.0 | 23.0 | 483.0 | 426.0 | 312.0 | 45.0 | 12.0 | #7040ADB |
| d | d1 | d2 | d3 | d4 | d5 | d6 | d7 | L1 | L2 | L3 | n |
| 50 | 35.0 | 135.0 | 170.0 | 195.0 | 66.0 | 134.0 | 14.0 | 162.0 | 144.0 | 30.0 | 8.0 |
| 60 | 45.0 | 145.0 | 180.0 | 205.0 | 76.0 | 144.0 | 14.0 | 175.0 | 157.0 | 30.0 | 8.0 |
| 70 | 55.0 | 155.0 | 190.0 | 215.0 | 86.0 | 154.0 | 14.0 | 186.0 | 168.0 | 30.0 | 8.0 |
| 80 | 65.0 | 165.0 | 200.0 | 225.0 | 96.0 | 164.0 | 14.0 | 186.0 | 168.0 | 30.0 | 8.0 |
| 90 | 75.0 | 175.0 | 210.0 | 235.0 | 110.0 | 174.0 | 14.0 | 198.0 | 178.0 | 30.0 | 8.0 |
| 100 | 85.0 | 185.0 | 220.0 | 245.0 | 120.0 | 184.0 | 14.0 | 198.0 | 178.0 | 30.0 | 8.0 |
| 110 | 95.0 | 205.0 | 240.0 | 265.0 | 130.0 | 218.0 | 14.0 | 200.0 | 173.0 | 30.0 | 8.0 |
| 120 | 105.0 | 215.0 | 261.0 | 289.0 | 140.0 | 235.0 | 19.0 | 217.0 | 190.0 | 35.0 | 12.0 |
| 130 | 110.0 | 225.0 | 271.0 | 299.0 | 154.0 | 245.0 | 19.0 | 222.0 | 190.0 | 35.0 | 12.0 |
| 140 | 120.0 | 235.0 | 281.0 | 309.0 | 164.0 | 255.0 | 19.0 | 222.0 | 190.0 | 35.0 | 12.0 |
| 150 | 130.0 | 280.0 | 335.0 | 375.0 | 174.0 | 295.0 | 23.0 | 261.0 | 229.0 | 45.0 | 12.0 |
| 160 | 140.0 | 290.0 | 345.0 | 385.0 | 184.0 | 305.0 | 23.0 | 263.0 | 231.0 | 45.0 | 12.0 |
| 170 | 150.0 | 300.0 | 355.0 | 395.0 | 194.0 | 315.0 | 23.0 | 263.0 | 231.0 | 45.0 | 12.0 |
| 180 | 160.0 | 310.0 | 365.0 | 405.0 | 204.0 | 328.0 | 23.0 | 263.0 | 231.0 | 45.0 | 12.0 |
| 190 | 170.0 | 320.0 | 375.0 | 415.0 | 214.0 | 338.0 | 23.0 | 273.0 | 241.0 | 45.0 | 12.0 |
| 200 | 180.0 | 330.0 | 390.0 | 430.0 | 224.0 | 358.0 | 23.0 | 277.0 | 245.0 | 45.0 | 12.0 |
