114 AGSZ Mechanical Seals for Pumps Pusher Seals

(1)Features
• For top entry drives
• Gas-lubricated
• Double seal
• Balanced
• Independent of direction of rotation

(2)Advantages
• Centrally arranged rotating seat
• Torque transmission by clamping ring for large axial movements
• No friction on the seal faces, no heat generated at the seal or in the medium
• Contact-free running
• Ready-to-fit and factory-tested unit

(3)Operating range (see note on page 1)
Shaft diameter: d3 = 40 ... 220 mm (1.6" ... 8.7")
Pressure p1 = vacuum ... 6 bar (87 PSI),
Δpmin. = 3 bar (44 PSI), p3 = 9 bar (131 PSI)
Temperature: t1 = -20 °C ... +150 °C (- 4 °F ... +302 °F),
with cooling flange 250 °C (482 °F)
Sliding velocity: vg = 0 ... 10 m/s ( 0 ... 33 ft/s)

(4)Materials
Seal face and seat: Silicon carbide

(5)Standards and approvals
• Material approvals: FDA
• DIN 28136 (for steel vessels)
• DIN 28141 (flange connection for steel vessels)
• DIN 28154 (shaft end for steel vessel)
• DIN 28136 (for glass-lined vessels)
• DIN 28137 T2 (flange connection for glass-lined vessels)
• DIN 28159 (shaft end for glass-lined vessels)

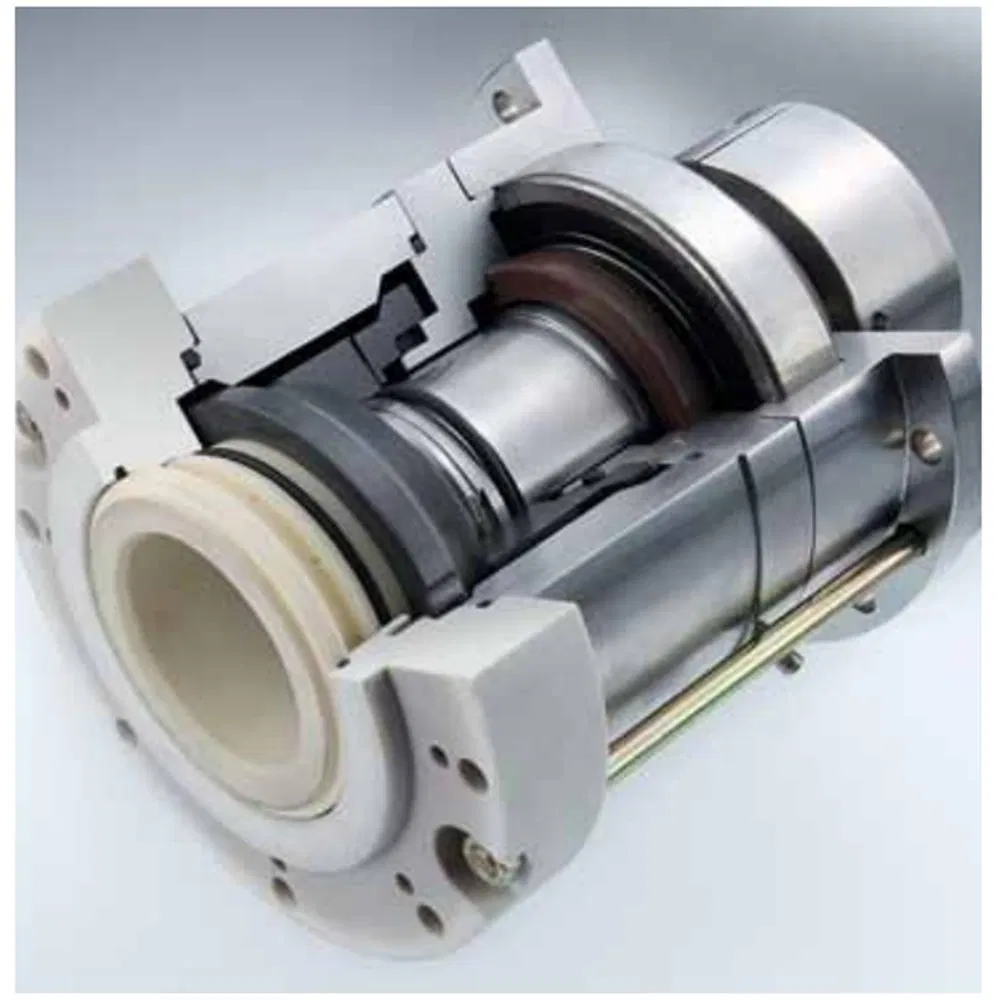

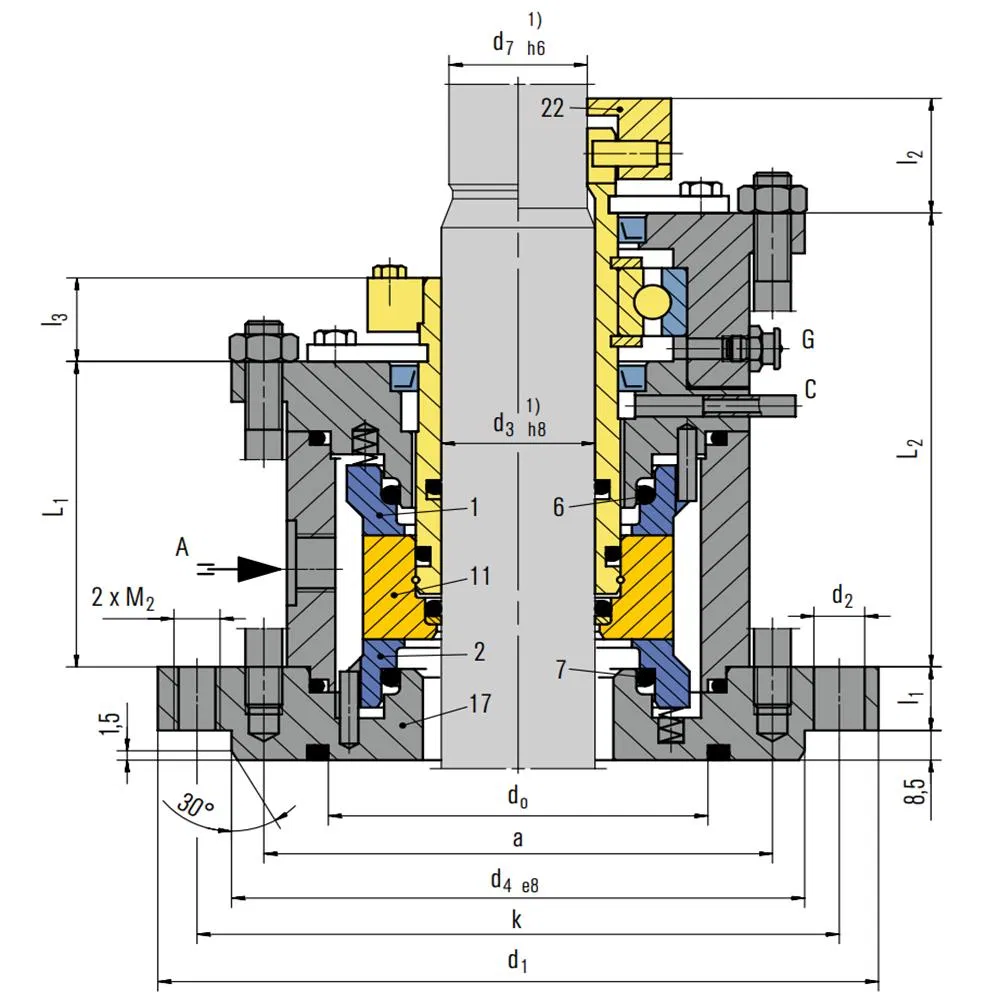

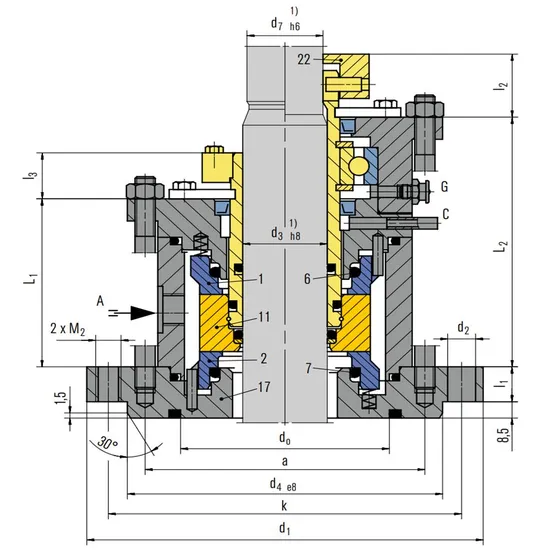

(6)Item              Description
1                    Seal face (Q19, atmosphere side)
2                    Seal face (Q1), product side
6,7                 O-Ring
11                  Seat (Q1)
17                  Flange
22                  Clamping ring

(7)Notes
Options:
• Cooling or heating flange
• Flush
• Polymerization barrier
See page 259.

(8)Recommended seal supply
• Chemical industry
• Food and beverage industry
• Pharmaceutical industry
• Gases and liquids
• Media which require high purity
• Environmental harmful media with double seals
• Agitators

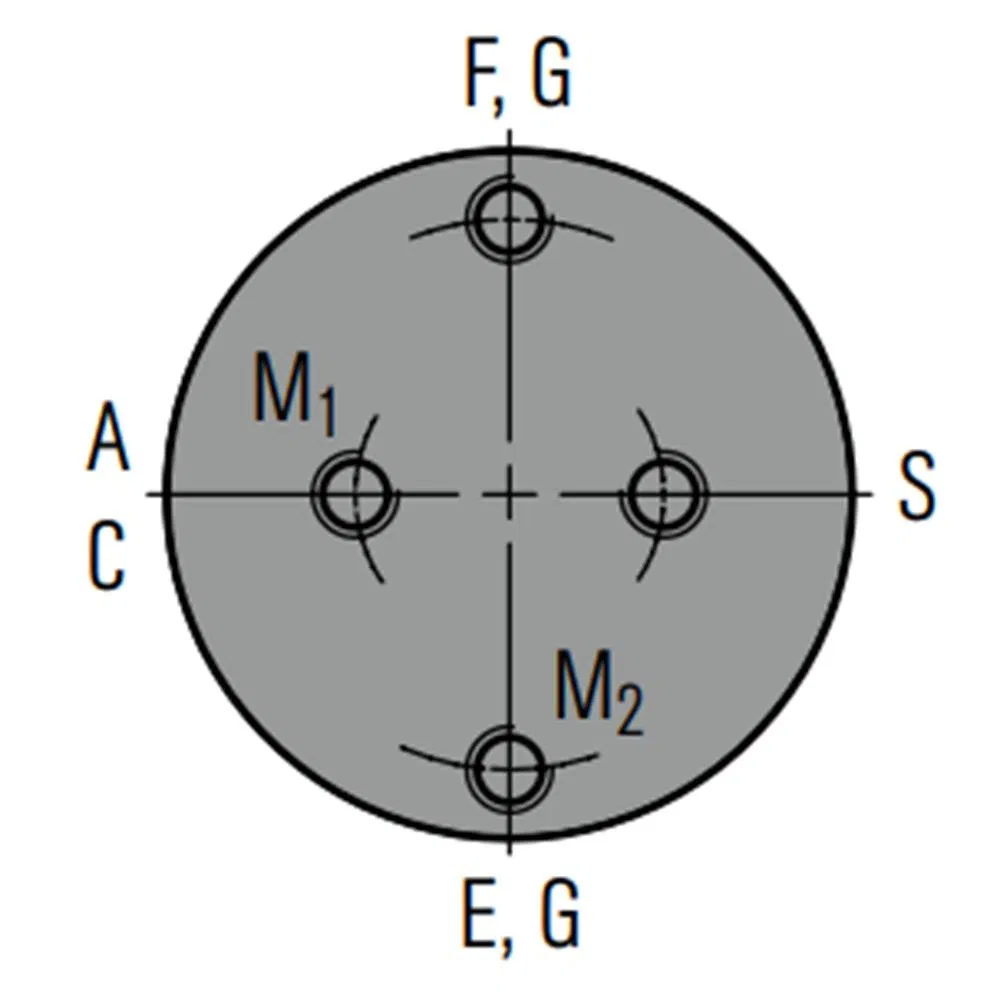

Supply connections

Designation and positions of supply connections,
pull-off and jacket threads acc. to DIN 28138 T3.

A Barrier gas IN
C Leakage
E Cooling IN
F Cooling OUT
S Flush
G Grease

(9)Product variants

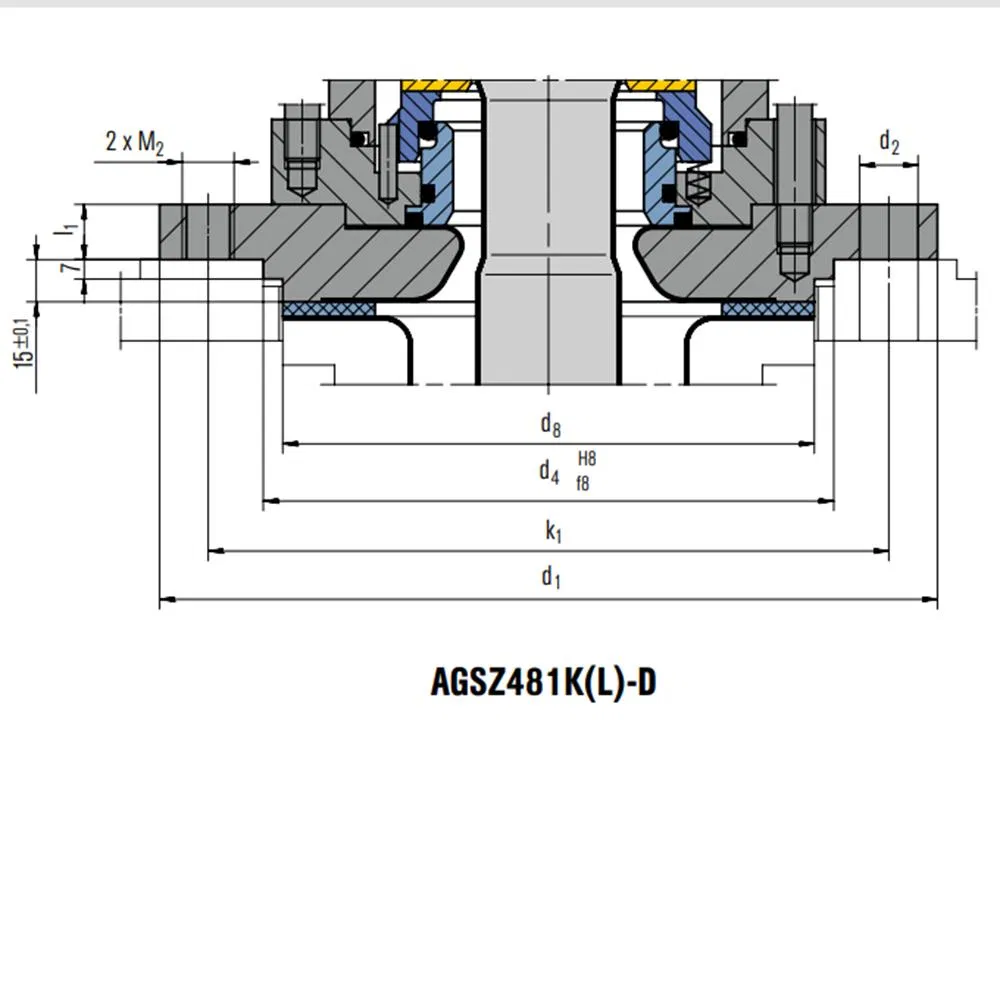

AGSZ481K(L)-D
Double seal (with integrated bearing) for steel vessels to
DIN 28136, connection flange to DIN 28141 and shaft
ends to DIN 28154.

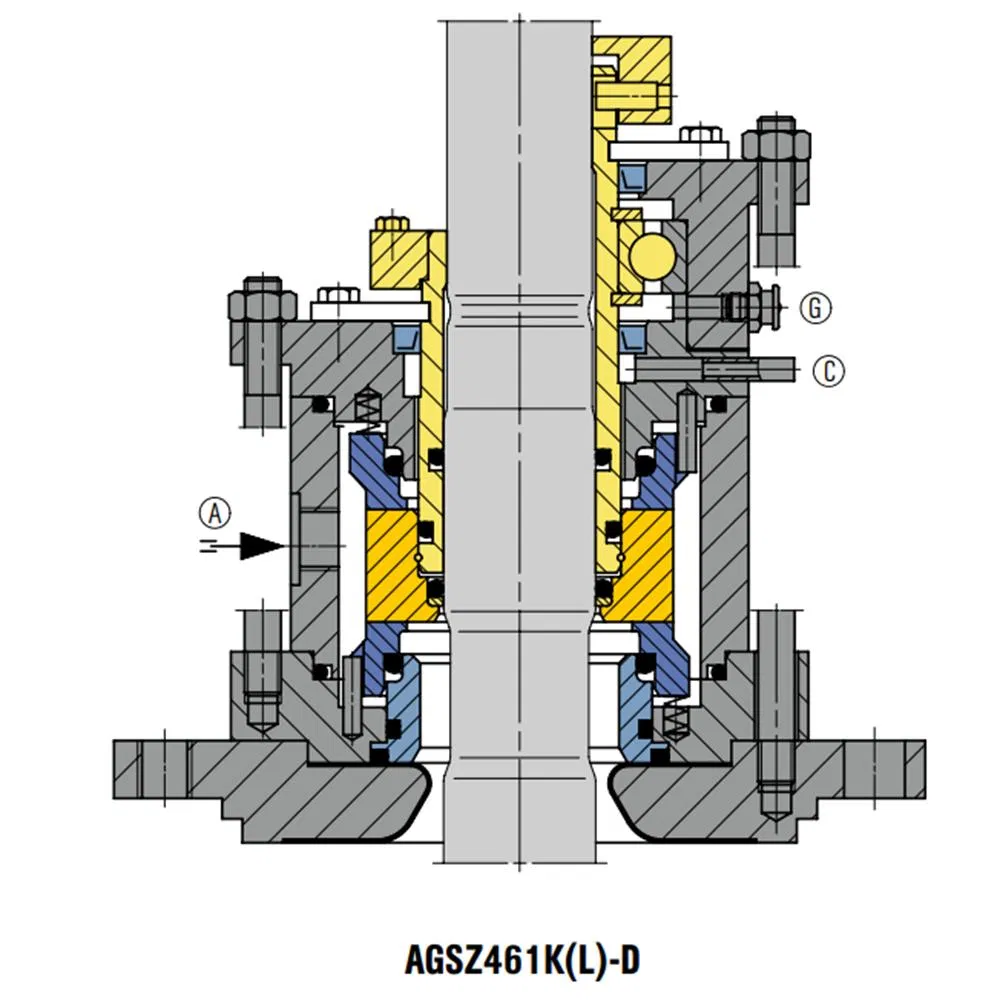

AGSZ461K(L)-D
Double seal (with integrated bearing) for glass-lined
vessels to DIN 28136, connection flange to DIN 28137
and shaft ends to DIN 28159.

AGSZ451K(L)-D
Version with special connection dimensions or unstepped
shafts. For steel vessels.

AGSZ491K(L)-D
Variant with special connection dimensions for glass-lined
vessels.

Flange connection acc. to DIN 28137 T2for nominal diameters 40 ... 100.

Flange connection acc. to DIN 28137 T2
 for nominal diameters 125 ... 161.

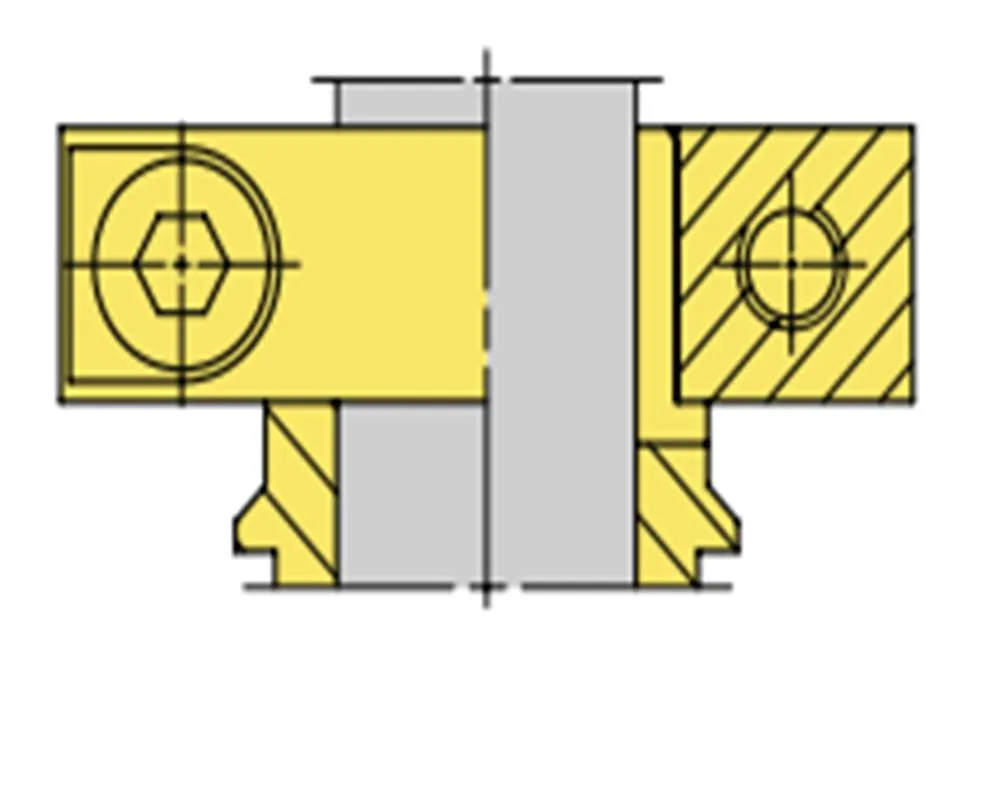

(10)Torque transmissions

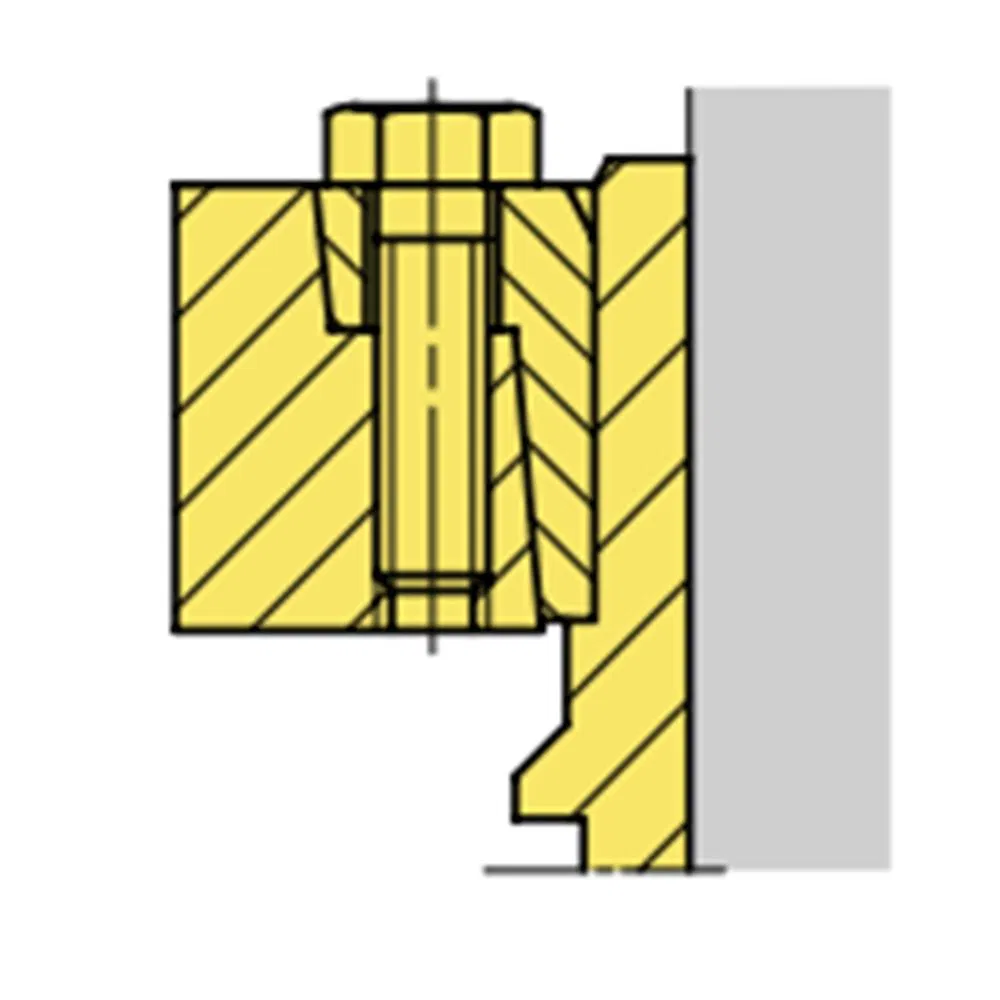

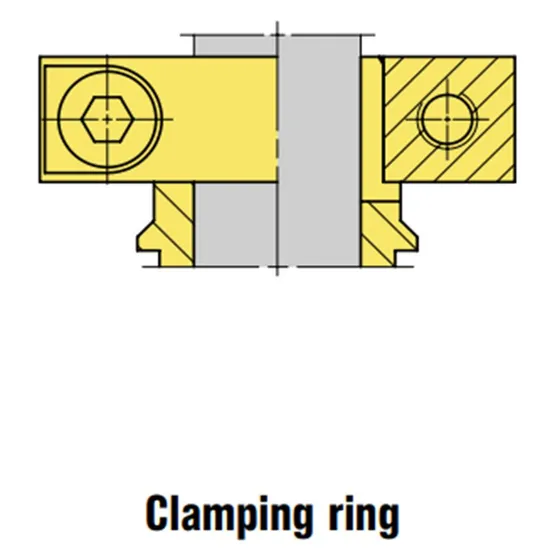

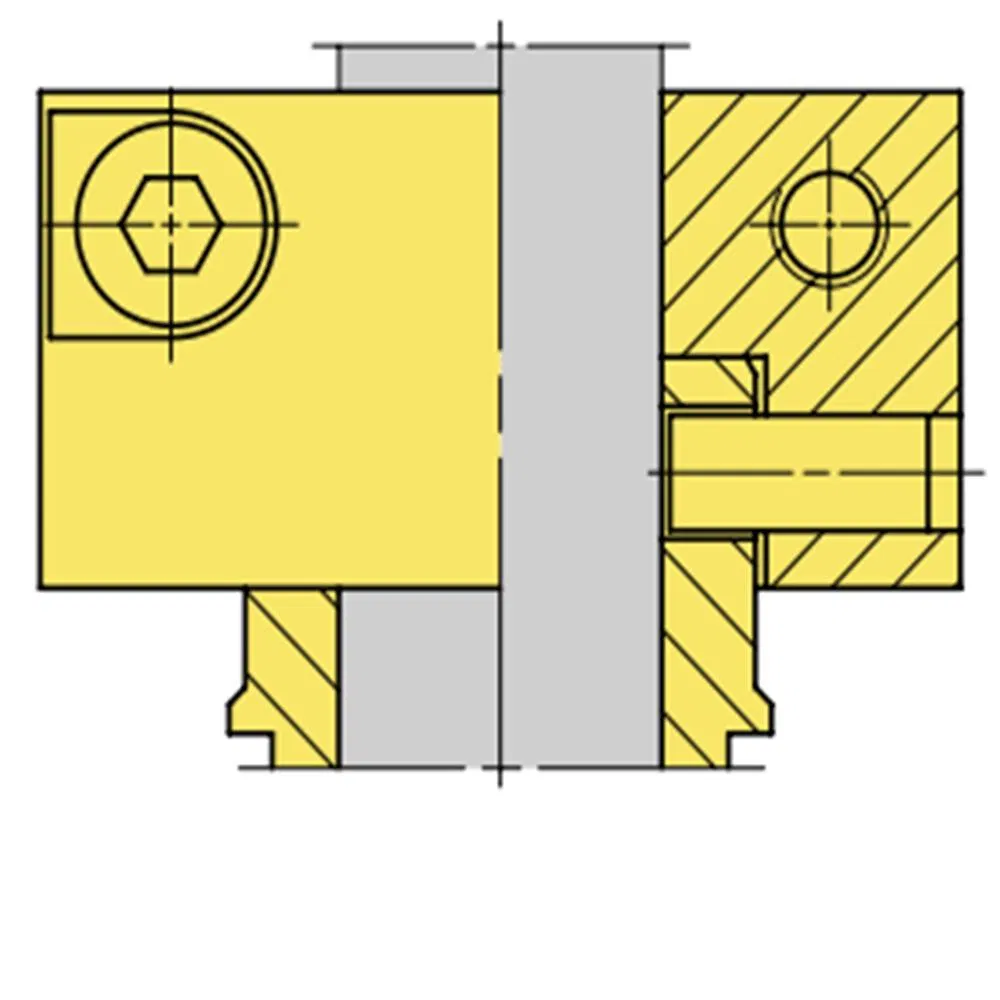

Shrink disk                                       Clamping ring with pin                                      Clamping ring

AGSZ481 - Dimensions in mm

AGSZ461 - Dimensions in mm
