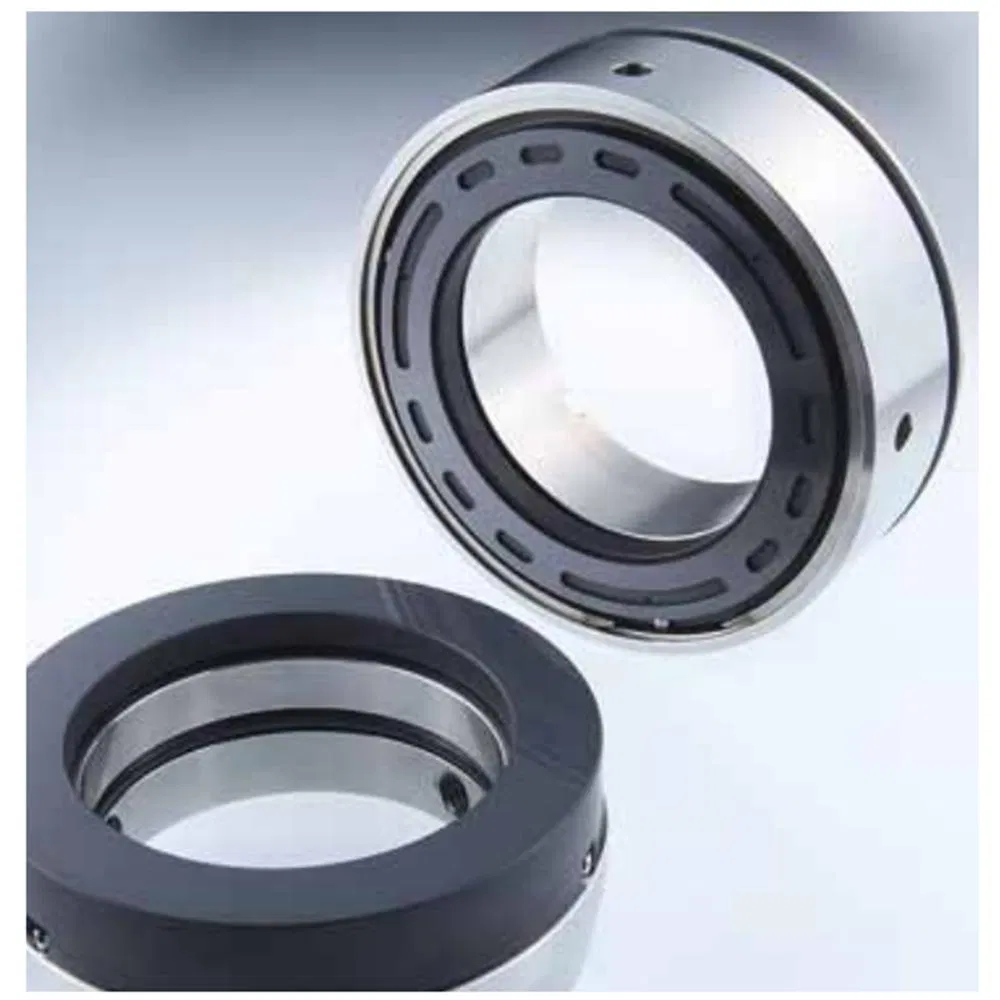

(1)Features
• Balanced
• Independent of direction of rotation
• Stationary multiple springs
• API 682 arrangement 2 containment seal
(2)Advantages
• Dry contact secondary seal
• Prevention of hazardous emissions
• Can be used as a secondary seal of tandem seal in liquid applications
(3)Operating range (see note on page 1)
Pressure: p = 2 bar (29 PSI) normal operation, max. 60 bar (870 PSI)
Temperature: t = -20 °C ... +200 °C (-40 °F ... +392 °F)
Sliding velocity: vg = 25 m/s (82 ft/s)
(4)Materials
Seal face: Special carbon
Seat: Silicon carbide (Q1, Q2)
Secondary seals: FKM (V)
Metal parts: 1.4401 (G)
(5)Standards and approvals
• API 682/ISO 21049
(6)Recommended applications
• Chemical industry
• Refining technology
(7)Item Description
1.1 Seal face
1.2 Adapter
1.3 Spring
1.4 Thrust ring
1.5 O-Ring
1.6 Retaining ring
1.7 O-Ring
2 Seat
3 Drive collar
4 O-Ring
5 O-Ring
6 Set screw

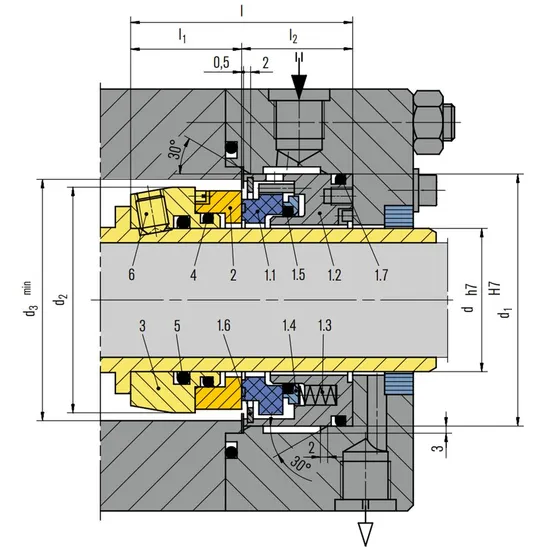

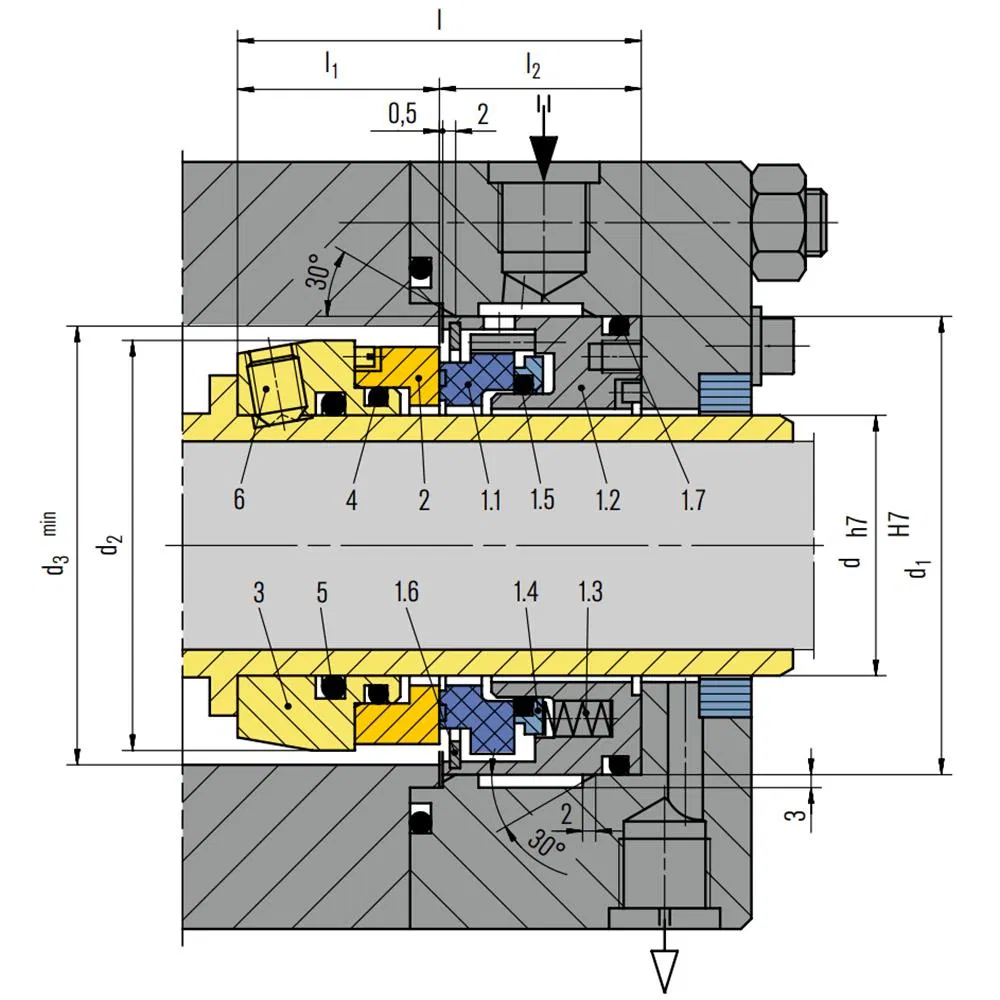

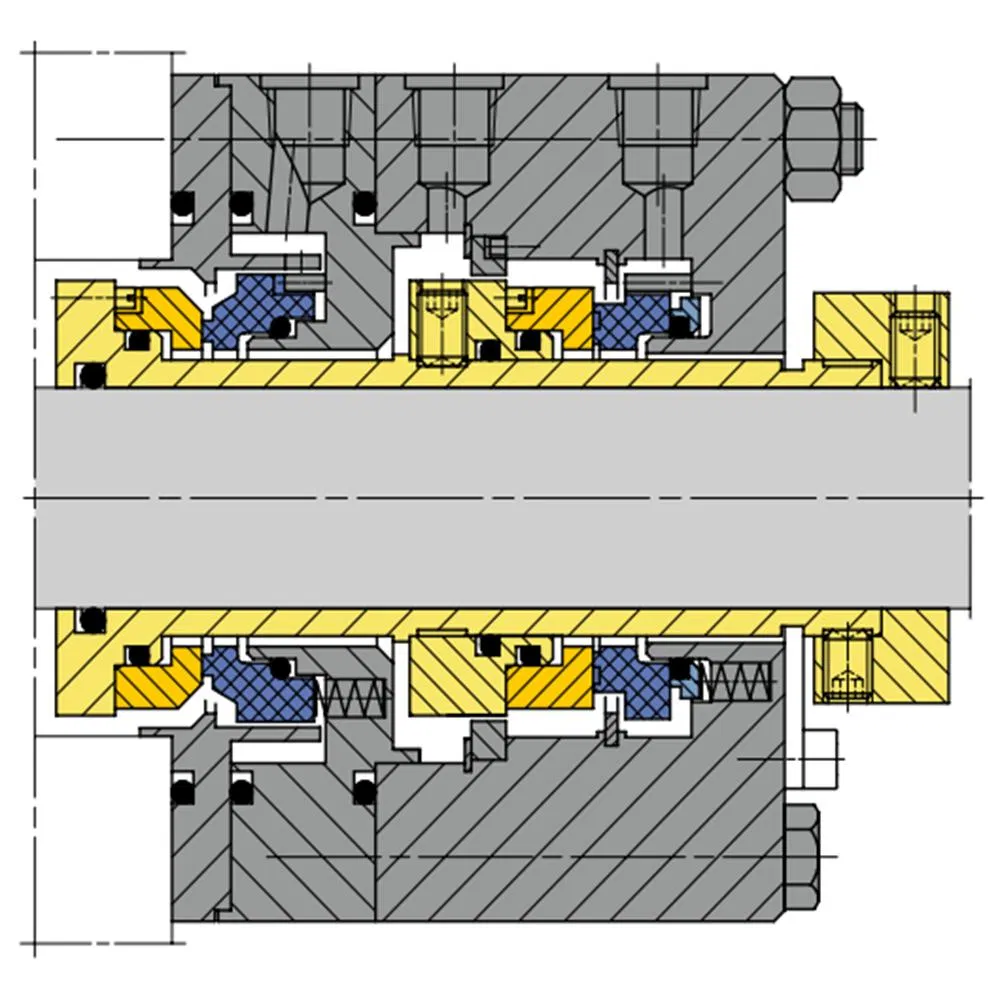

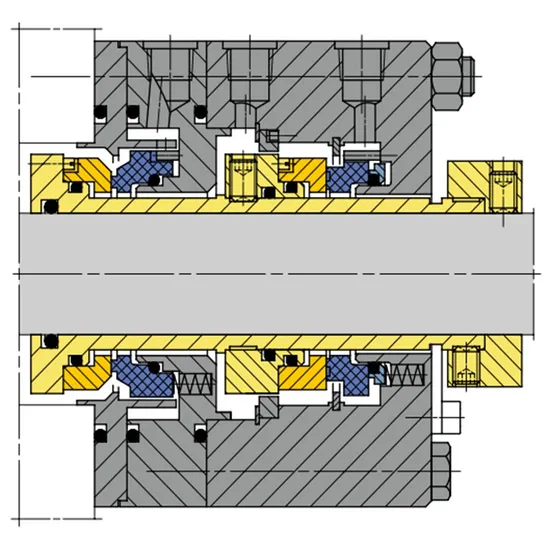

(8)Product variant
Configuration example
acc. to API 682 (1CW-FL)
Dimensions in mm
| dmax. | d1 | d2 | d3 | L | L1 | L2 |
| 20 | 50.0 | 40.0 | 46.0 | 56.0 | 27.0 | 29.0 |
| 25 | 54.0 | 46.0 | 52.0 | 56.0 | 27.0 | 29.0 |
| 30 | 60.0 | 51.0 | 57.0 | 56.0 | 27.0 | 29.0 |
| 35 | 64.0 | 56.0 | 62.0 | 56.0 | 27.0 | 29.0 |
| 40 | 72.0 | 63.0 | 69.0 | 62.0 | 31.0 | 31.0 |
| 45 | 76.0 | 68.0 | 74.0 | 62.0 | 31.0 | 31.0 |
| 50 | 85.0 | 76.0 | 82.0 | 66.0 | 33.0 | 33.0 |
| 55 | 90.0 | 82.0 | 88.0 | 66.0 | 33.0 | 33.0 |
| 60 | 100.0 | 90.0 | 96.0 | 66.0 | 33.0 | 33.0 |
| 65 | 105.0 | 93.0 | 99.0 | 66.0 | 33.0 | 33.0 |
| 70 | 110.0 | 99.0 | 105.0 | 66.0 | 33.0 | 33.0 |
| 75 | 115.0 | 104.0 | 110.0 | 66.0 | 33.0 | 33.0 |
| 80 | 120.0 | 111.0 | 117.0 | 68.0 | 35.0 | 33.0 |
| 85 | 127.0 | 117.0 | 123.0 | 68.0 | 35.0 | 33.0 |
| 90 | 132.0 | 120.0 | 126.0 | 68.0 | 35.0 | 33.0 |
| 95 | 140.0 | 129.0 | 135.0 | 68.0 | 35.0 | 33.0 |
| 100 | 145.0 | 132.0 | 138.0 | 68.0 | 35.0 | 33.0 |
