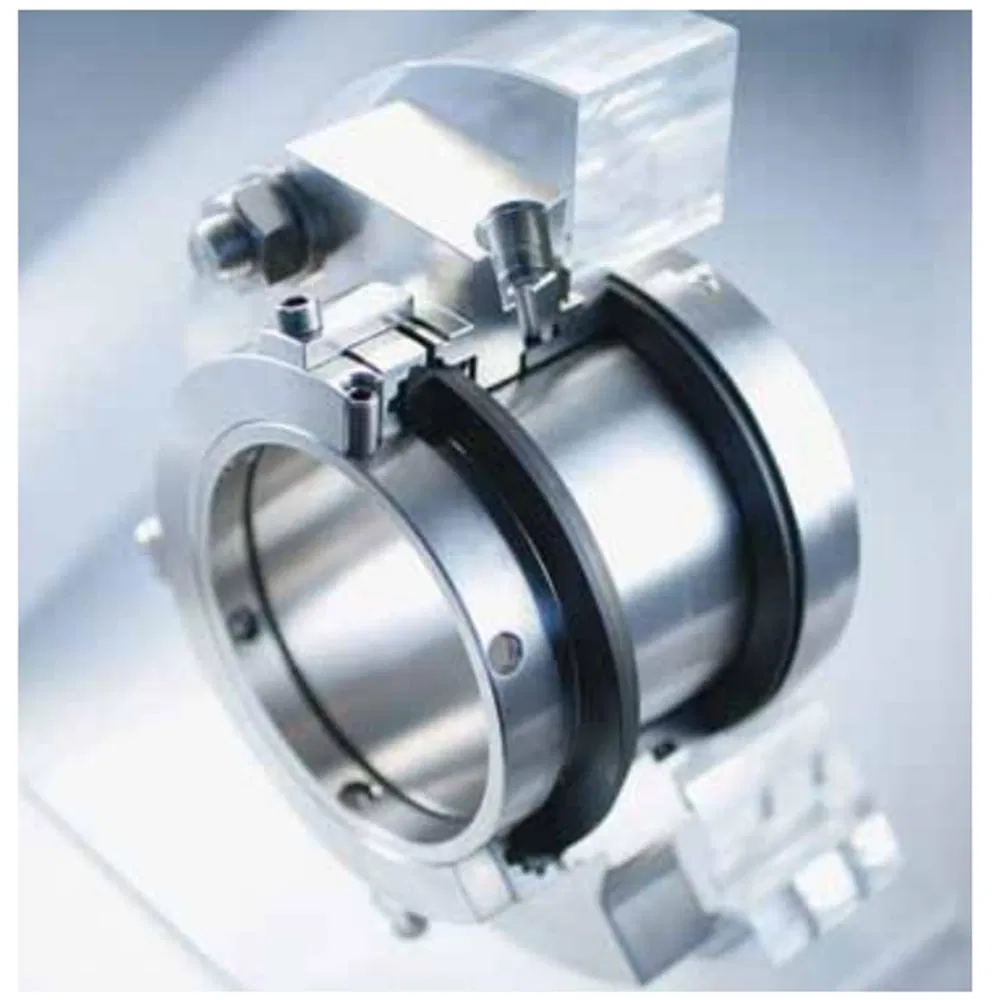

100 GSDN Mechanical Seals for Pumps Pusher Seals

(1)Features
• Stationary springs
• Rotating seat
• Double seal
• Balanced
• Cartridge unit
• Standard version with V-grooves, U-grooves optional (independent of direction of rotation)
• Gas-lubricated, gas-buffered
• Internally pressurized
• Does not open in the event of buffer pressure failure, self closing at pressure reversal

(2)Advantages
• Contact-free operation
• No friction on the seal faces, no heat generated at the seal or in the medium
• No additional complex components to dissipate frictional heat
• Maximum environmental protection and maximum efficiency

(3)Operating range (see note on page 1)
Shaft diameter: d1 = 30 ... 100 mm (1.18" ... 3.94")
Pressure:
p1 = 13 bar (189 PSI), p3 = 16 bar (232 PSI)
with V-grooves (uni-directional)
p1 = 9 bar (131 PSI), p3 = 12 bar (174 PSI)
with U-grooves (bi-directional)

Differential pressure (p3 - p1) = min. 3 bar (44 PSI)

Operating temperature limits for:
EPDM -20 °C ... +140 °C (-4 °F ... +284 °F)
FFKM -20 °C ... +120 °C (-4 °F ... +248 °F)
FKM -20 °C ... +170 °C (-4 °F ... +338 °F)

Sliding velocity: vg = 4 ... 15 m/s (13 ... 49 ft/s)
Axial movement: ±1.0 mm

(4)Materials
Seal face: Silicon carbide (Q1/Q19)
Seat: Silicon carbide (Q19/Q1)
Secondary seals: FKM (V), EPDM (E), FFKM (K)
Spring: Hastelloy C-4 (M)
Metal parts: CrNiMo steel (G), Hastelloy C-4 (M)

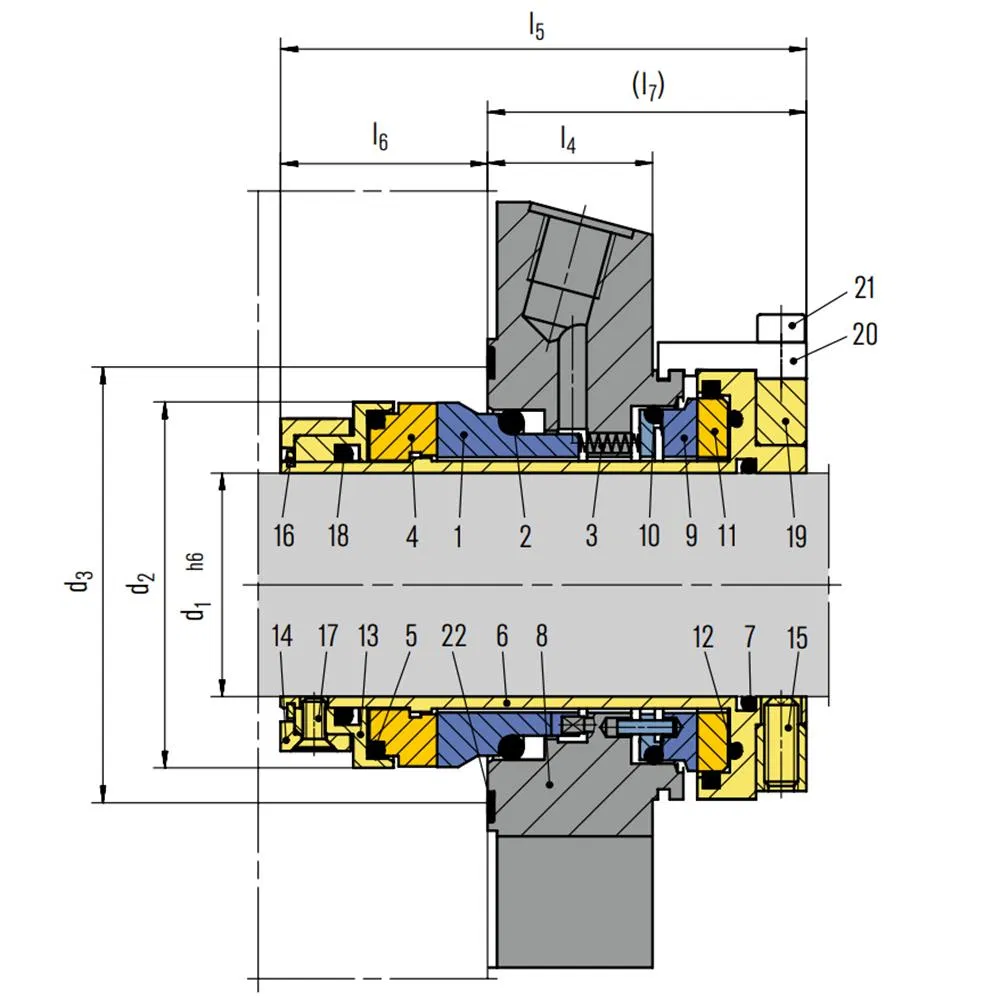

(5)Item                                    Description
1, 9                                      Seal face
2, 5, 7, 10, 12, 18                O-Ring
3                                          Spring
4, 11                                    Seat
6                                          Shaft sleeve
8                                          Cover
  13                                         Retainer
  14                                         Ring
  15                                         Set screw
  16                                         Retaining ring
  17                                         Counter-sunk socket screw
  19                                         Set ring
  20                                         Assembly fixture
  21                                         Socket head screw
  22                                         Gasket

(6)Recommended applications
• Chemical industry
• Refining technology
• Gases and liquids
• Media which require high purity
• Environmental harmful media
• Pumps

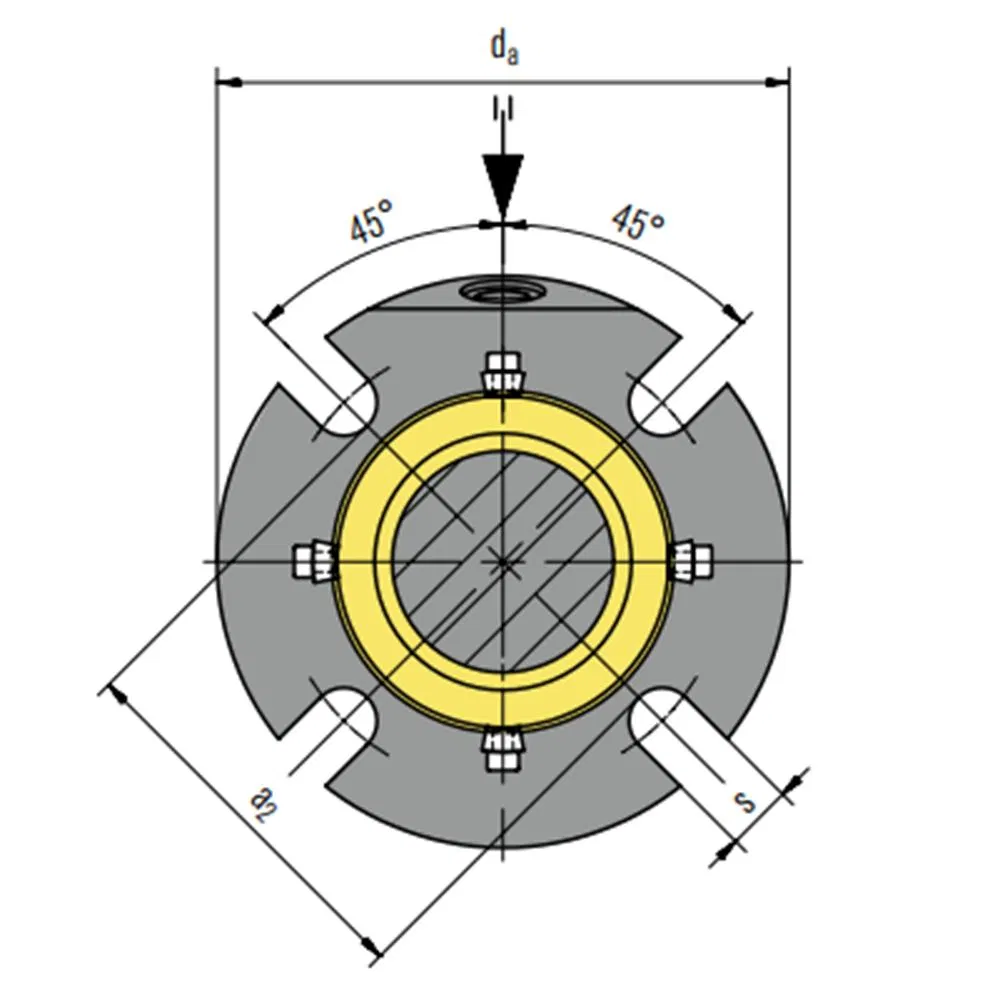

Seal cover

Dimensions in mm
